Starter Relay Check

Battery voltage Terminal number to be connected to tester Continuity test results
Not applied 3 - 4 Open circuit
Connect terminal 2 to battery (+) terminal. Connect terminal 1 to battery (-) terminal. 3 - 4 Continuity (less than 2 ohms)

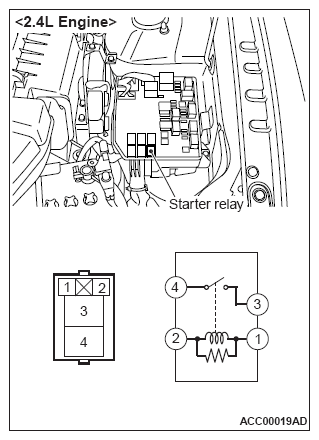

G10224350Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

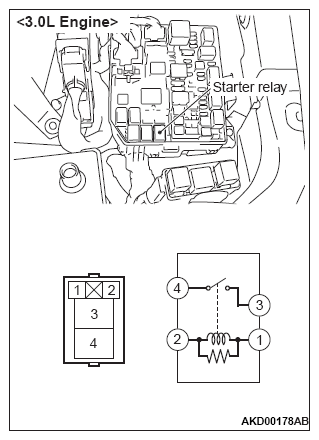

G10224351Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
