Component Locations: Grounding

G13346003Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
NOTE: Same ground numbers are used in the circuit diagram.

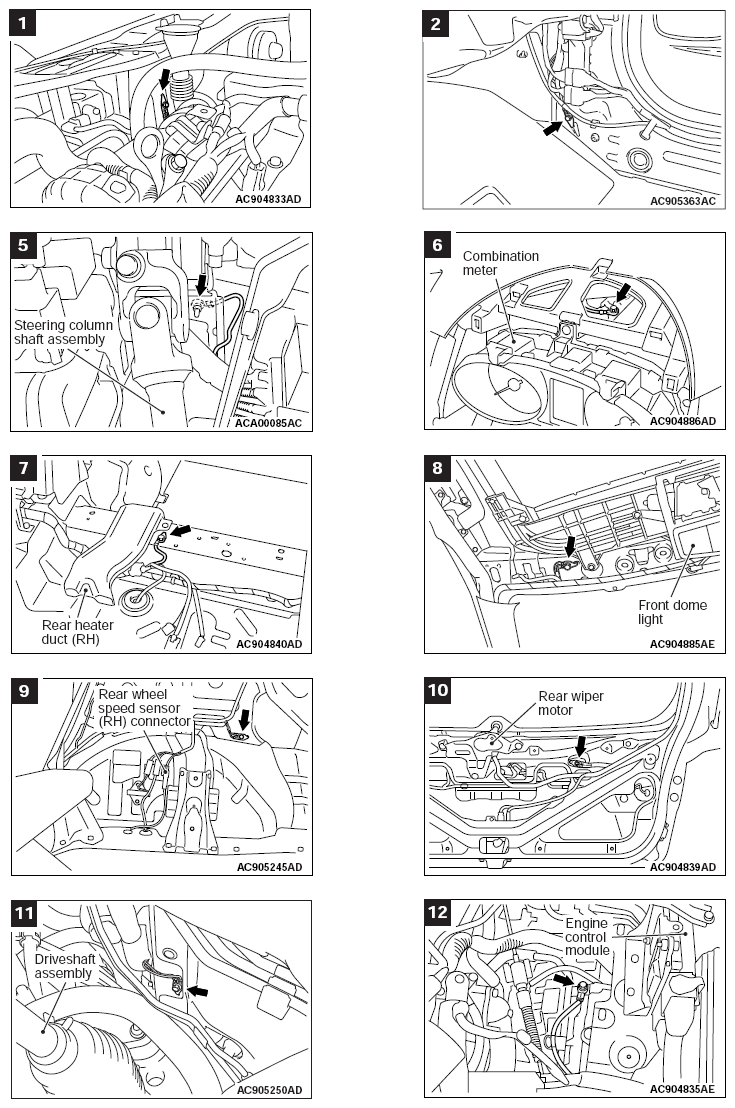

G13346004Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

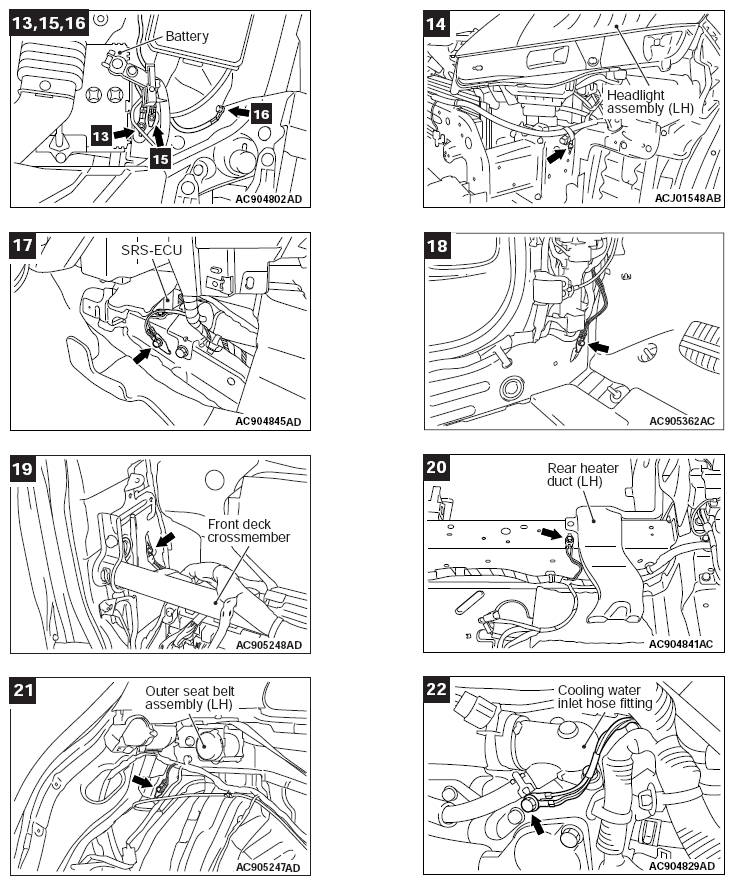

G13346005Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
