Removal And Installation: Notes
WARNING:
For removal and installation of the passenger's side air bag module, always observe the service procedures described in
DRIVER'S AIR BAG MODULE
to PASSENGER'S (FRONT) AIR BAG MODULE
.

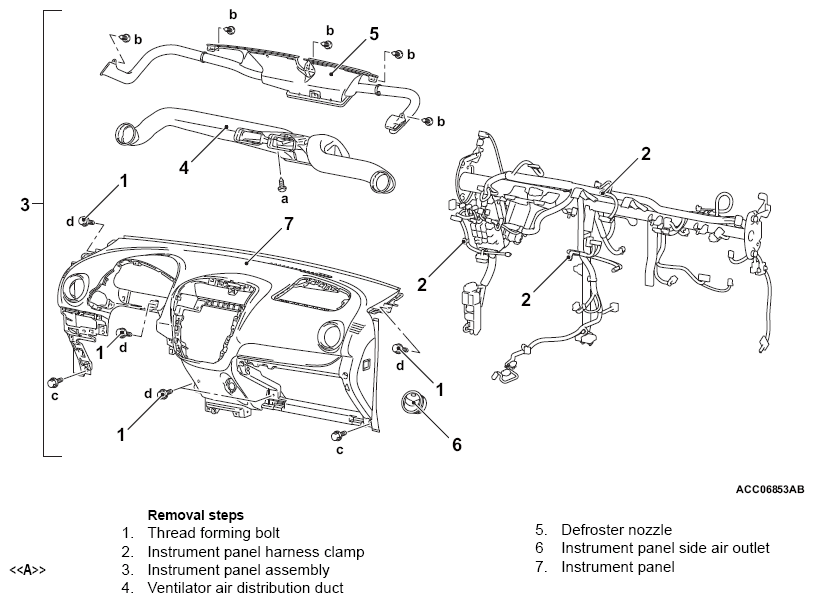

The following bolts and screws are used for installing the instrument panel. Bolts and screws are indicated as marks shown in the illustration in the sections of "Removal and Installation" and "Disassembly and Assembly."
| Name | Symbol | Dimensions mm (screw diameter x screw length) | Color | Shape |
|---|---|---|---|---|
| Tapping screw | a | 5 X 12 | - | |
| b | 5 X 12 | - | ||
| Bolt with washer | c | 6 X 12 | - | |
| d | 6 X 12 | - |
CAUTION:
- Refer to SRS SERVICE PRECAUTIONS and PASSENGER'S (FRONT) AIR BAG MODULE before removing the passenger's (front) air bag module.
- Do not subject the SRS-ECU to any shocks when removing or installing the instrument panel.
Pre-removal and Post-installation Operation
|
