Home >> Mitsubishi >> 2021 >> Mirage LE >> Repair and Diagnosis >> Electrical >> Component Locations >> Grounding

Component Locations: Grounding

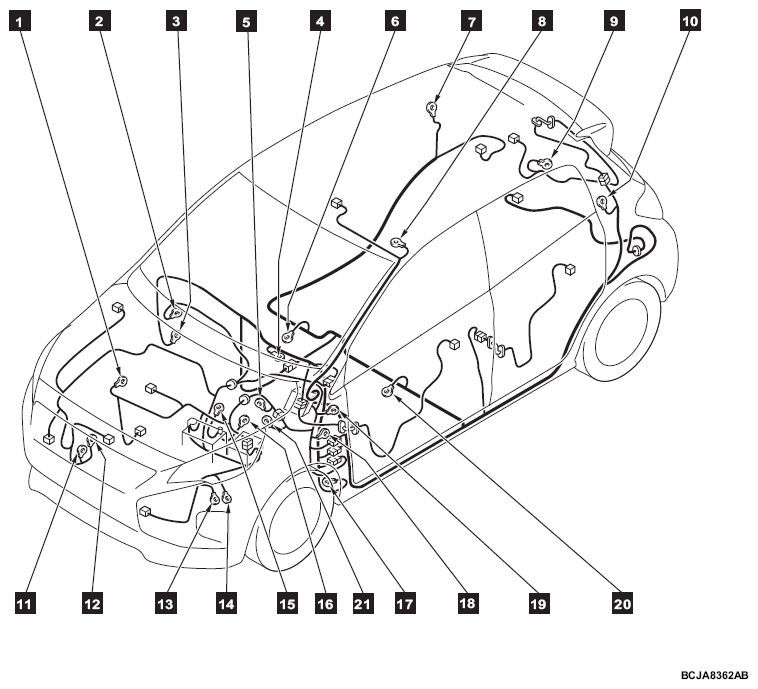

G13751793Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
NOTE: Same ground numbers are used in the circuit diagram.

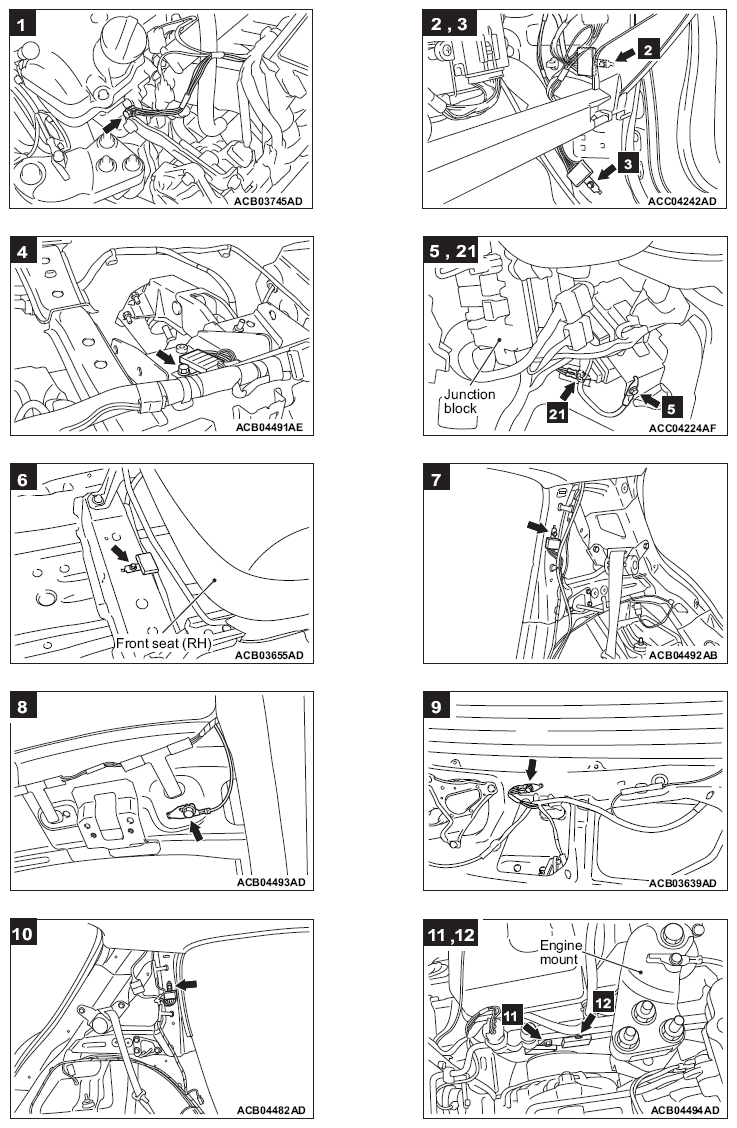

G13751794Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

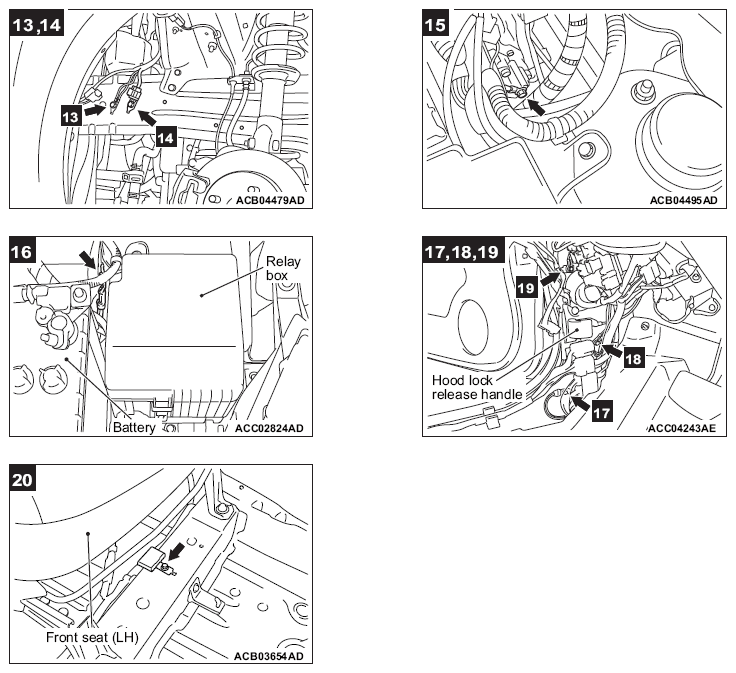

G13751795Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
