Removal And Installation: Notes

CAUTION: Never overhaul the V.V.T. sprocket assembly.

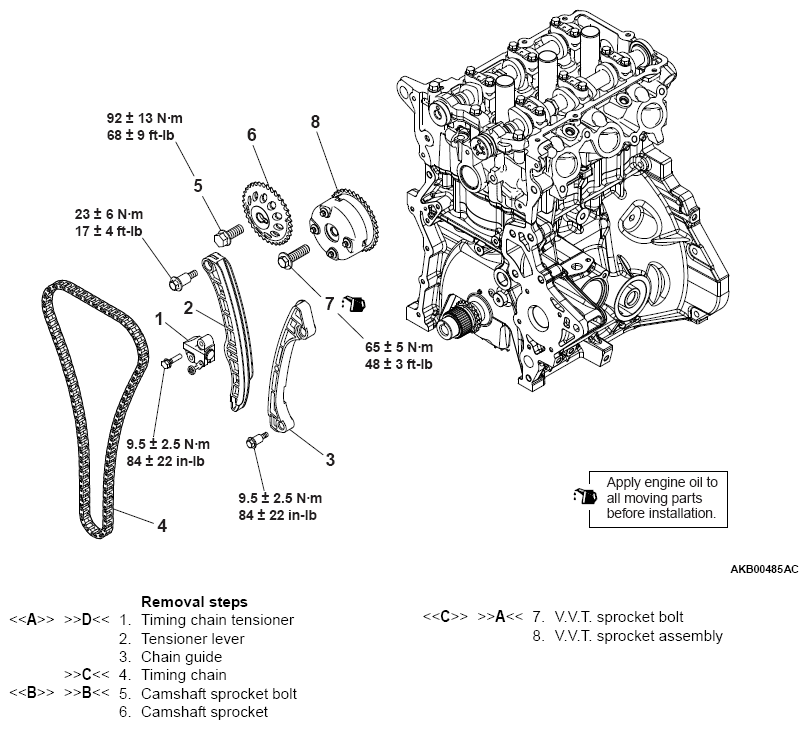

Fig 1: Removing/Installing Timing Chain Components With Torque Specifications
G12680194Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
