Current Sensor Resistance Value

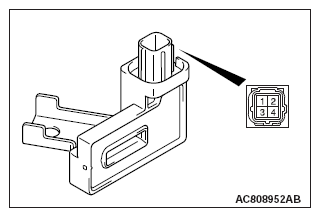

Use the circuit tester to measure the resistance value between battery current sensor connector terminals.
Standard value:
| Terminal No. (positive terminal - negative terminal) |
Resistance (kΩ) |
| 1 - 3 |
3 - 10 |
| 1 - 4 |
Less than 0.5 |
| 3 - 4 |
3 - 10 |
 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
|
