Pulley Removal
Pulley Removal
CAUTION:
Perform operation carefully not to damage the rotor.

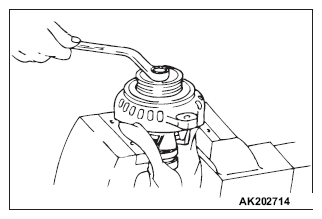

Clamp the rotor in a vise with the pulley facing up to remove the pulley.
