Generator Assembly: Inspection: Brush

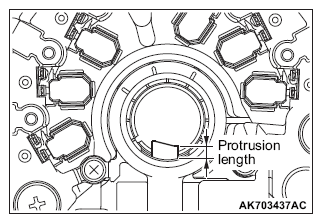

1. Measure the length of the protrusion of the brush. Replace the brush if the protrusion length is shorter than the limit.

   Limit: 2 mm (0.1 inch) minimum

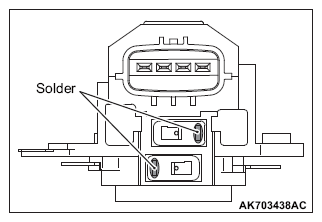

2. Unsolder the lead of the brush. The brush will come out, becoming ready for removal.

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

3. Install a new brush by pushing it into the holder as shown in illustration.

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
