Abnormal Waveforms

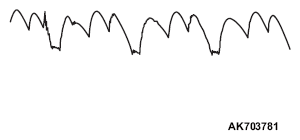

- Example 1
PROBABLE CAUSE: Open circuit or short circuit in diode
 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
|

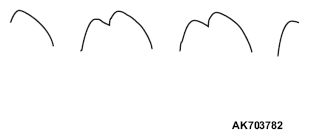

- Example 2
PROBABLE CAUSE: Open circuit in stator coil (In stator coil)
 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
|
- Example 3
PROBABLE CAUSE: Open circuit in stator coil (Open circuit between stator coil and diode)
 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
|
- Example 4
PROBABLE CAUSE: Short circuit in stator coil
 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
|
