Starter Relay Continuity Check

Battery voltage Terminal number to be connected to tester Continuity test results
Not applied 4 - 3 Open circuit
Connect terminal number 2 and battery (+) terminal. Connect terminal number 1 and battery (-) terminal. 4 - 3 Continuity (Less than 2 ohms)

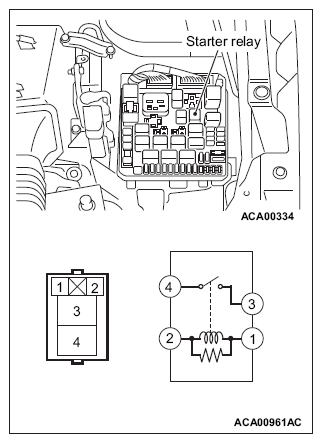

G14212809Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
