Home >> Mitsubishi >> 2021 >> RVR LE >> Repair and Diagnosis >> Restraints >> Passive Restraints >> Interior >> Interior Mirror >> On-Vehicle Service >> Auto-Dimming Feature Test

Auto-Dimming Feature Test

  1. Turn the ignition switch to the ON position.
  2. Make sure that the selector lever is not in the "R" range.
  3. Cover the front light sensor on the back of the inside rear view mirror with a black cloth.
  4. Check that the mirror dims within 2 minutes when the light strikes the rear light sensor.
  5. If the mirror does not dim, replace the inside rear view mirror (Refer to INTERIOR MIRROR  ).

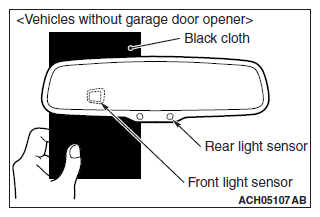

G12148611Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

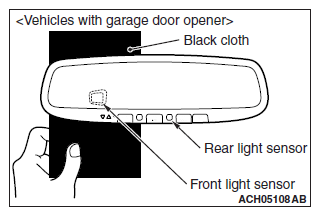

G12148612Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
