Removal And Installation: Notes
CAUTION:

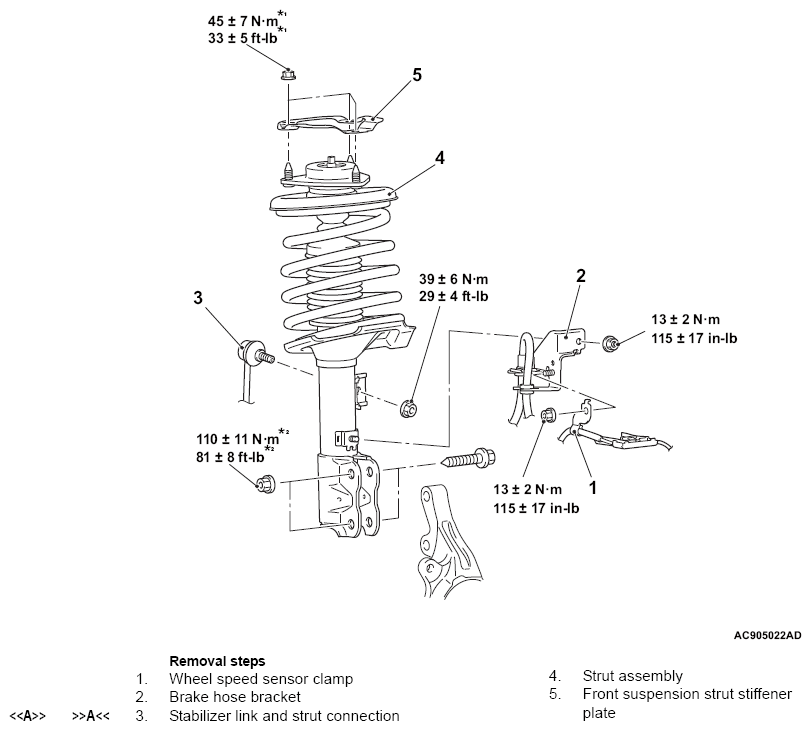

- The parts indicated by *1 indicates parts which should be temporarily tightened, and then fully tightened with the vehicle standing on the ground at curb weight.
- The parts indicated by *2 is the nuts with friction coefficient stabilizer. Prior to reinstallation, ensure there is no damage, clean dust and soiling from the bearing and thread surfaces, and tighten it to the specified torque.
Post-installation Operation
Front Wheel Alignment Check and Adjustment (Refer to ON-VEHICLE SERVICE ).
