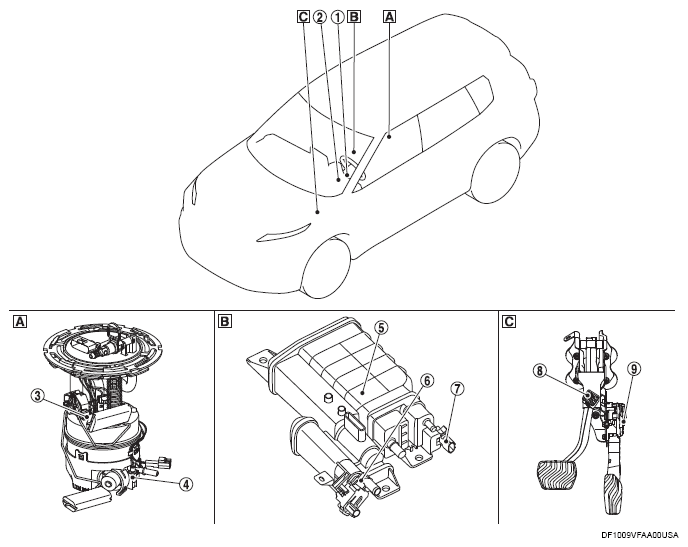

Body Compartment: Notes
| (A) | Inside fuel tank area |
| (B) | Front of fuel tank area |
| (C) | Pedal periphery area |
| (1) | ASCD/ACC steering switch |
| (2) | Combination meter [Malfunction indicator light (MIL), Information display] |
| (3) | EVAP canister |
| (4) | EVAP control system pressure sensor |
| (5) | EVAP canister vent control valve |
| (6) | Fuel level sensor unit and fuel pump |
| (7) | Fuel tank temperature sensor |
| (8) | Stop light switch |
| (9) | Accelerator pedal position sensor |
