Removal And Installation: Notes

Pre-removal Operation

Engine Coolant Draining (Refer to - On-vehicle Service, ENGINE COOLANT REPLACEMENT ).
Air Cleaner Intake Hose and Air Cleaner Assembly Removal (Refer to AIR CLEANER ).
Power Drive Unit Removal (Refer to - Inverter <Front> POWER DRIVE UNIT ).
Radiator Lower Hose Removal (Refer to - RADIATOR ).

Post-installation Operation

Radiator Lower Hose Installation (Refer to - RADIATOR ).
Power Drive Unit Installation (Refer to - Inverter <Front> POWER DRIVE UNIT ).
Air Cleaner Intake Hose and Air Cleaner Assembly Installation (Refer to AIR CLEANER ).
Engine Coolant Refilling (Refer to - On-vehicle Service, ENGINE COOLANT REPLACEMENT ).

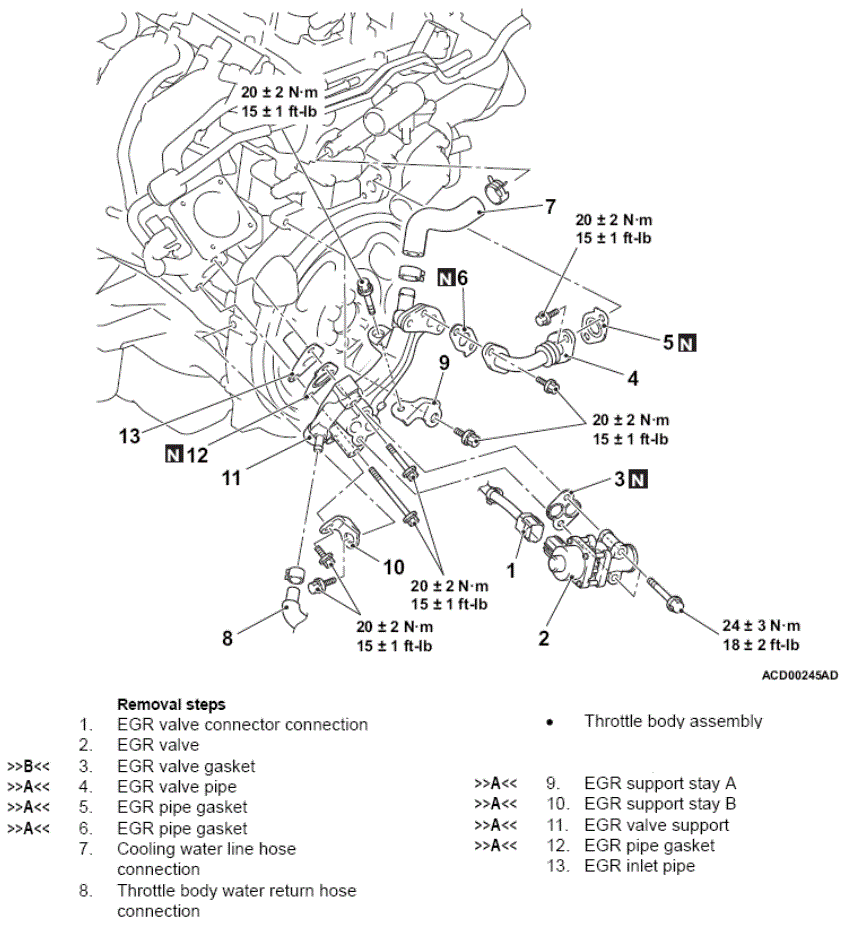

Fig 1: Removing/Installing EGR Valve Components Location With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
