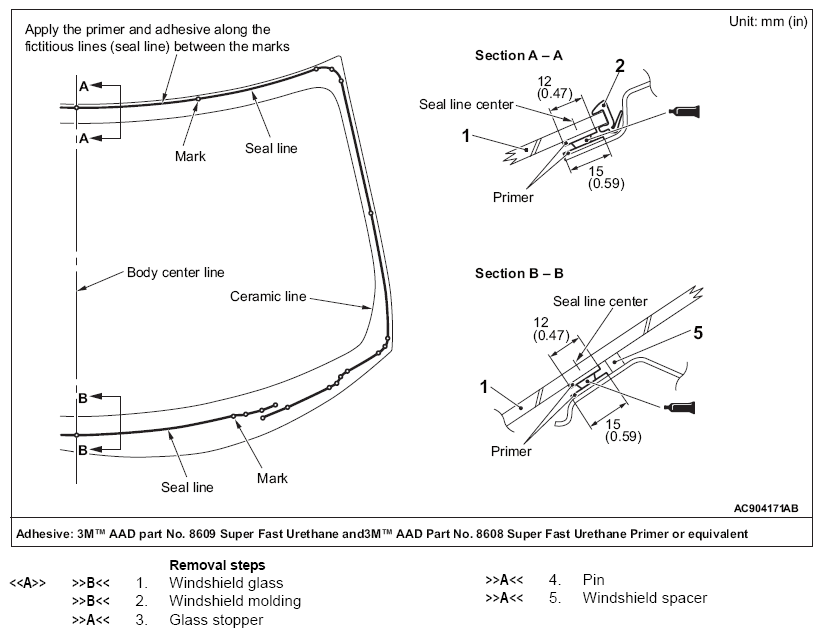

Removal And Installation: Notes
CAUTION:
Whenever you removal the windshield, calibrate its sensor (Refer to FCM/LDW/AHB-ECU SENSOR CALIBRATION
- FCM/LDW/AHB-ECU - On Vehicle Service, FCM/LDW/AHB-ECU Sensor Calibration
). <Vehicles with FCM/LDW/AHB>
Pre-removal and post-installation operation
- Front deck garnish removal and installation (Refer to - Windshield Wiper WINDSHIELD WIPER .)
- Front pillar trim removal and installation (Refer to - Interior Trim TRIMS .)
- Inside rear view mirror removal and installation (Refer to - Inside Rear View Mirror INTERIOR MIRROR )
- Lighting control sensor removal and installation (Refer to - Headlight HEADLIGHT LEVELING SWITCH REMOVAL AND INSTALLATION .)
- FCM/LDW/AHB-ECU Removal and Installation (Refer to - FCM/LDW/AHB-ECU FCM/LDW/AHB-ECU .) <Vehicles with FCM/LDW/AHB>

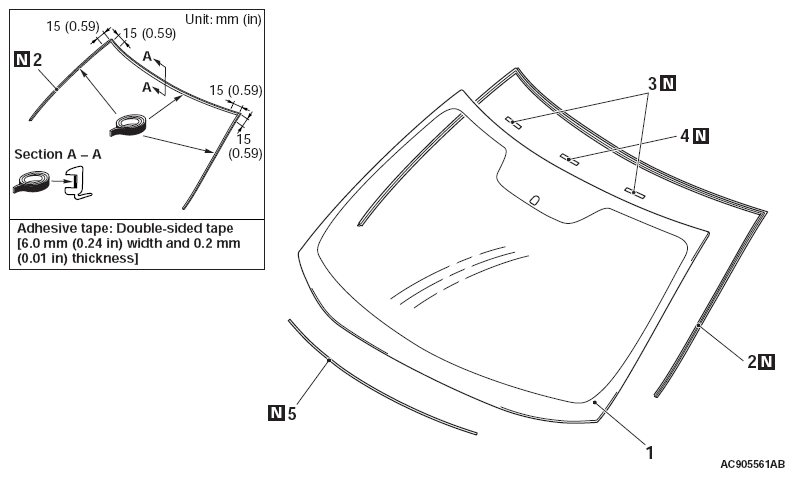

NOTE:
Do not apply double-sided tapes at the upper corner ends of part 2 [15 mm (0.59 in)].
