Generator Assembly: Inspection: Stator

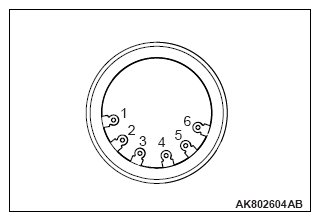

  1. Check the electrical continuity between the stator coil terminals.
  2. Check the electrical continuity of the points shown in the table below. Confirm that there is electrical continuity. If there is not, replace the stator.
    G12119328Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    Terminal connector of tester Electrical continuity
    1 - 2 Presence of electrical continuity
    1 - 3
    2 - 3
    4 - 5
    4 - 6
    5 - 6

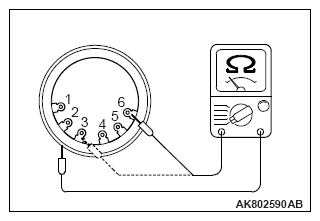

  3. Check the insulation between the stator coil terminal and the core.
    G12119329Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  4. Check the electrical continuity of the points shown in the table below. Confirm that there is not electrical continuity.

    If there is, replace the stator.

    Terminal connector of tester Electrical continuity
    1 - Core Absence of electrical continuity
    2 - Core
    3 - Core
    4 - Core
    5 - Core
    6 - Core

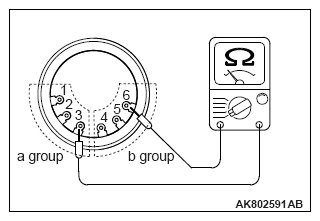

  5. Check the insulation between coil terminals of each group.
  6. Check the electrical continuity of the points shown in the table below. Confirm that there is not electrical continuity. If there is, replace the stator.
    Terminal connector of tester Electrical continuity
    1 - 4 Absence of electrical continuity
    1 - 5
    1 - 6
    2 - 4
    2 - 5
    2 - 6
    3 - 4
    3 - 5
    3 - 6
    G12119330Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
