Spark Plug Test

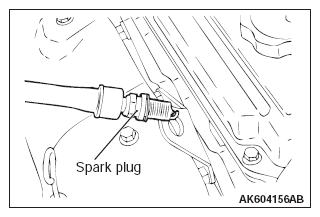

  1. Remove the spark plug and connect to the ignition coil.
    G13329876Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. Ground the spark plug outer electrode (body), and crank the engine.

    Check that there is an electrical discharge between the electrodes at this time.

G13329877Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
