Home >> Mitsubishi >> 2023 >> Mirage LE >> Repair and Diagnosis >> Electrical >> Component Locations >> Grounding

Component Locations: Grounding

G13751793Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
NOTE: Same ground numbers are used in the circuit diagram.

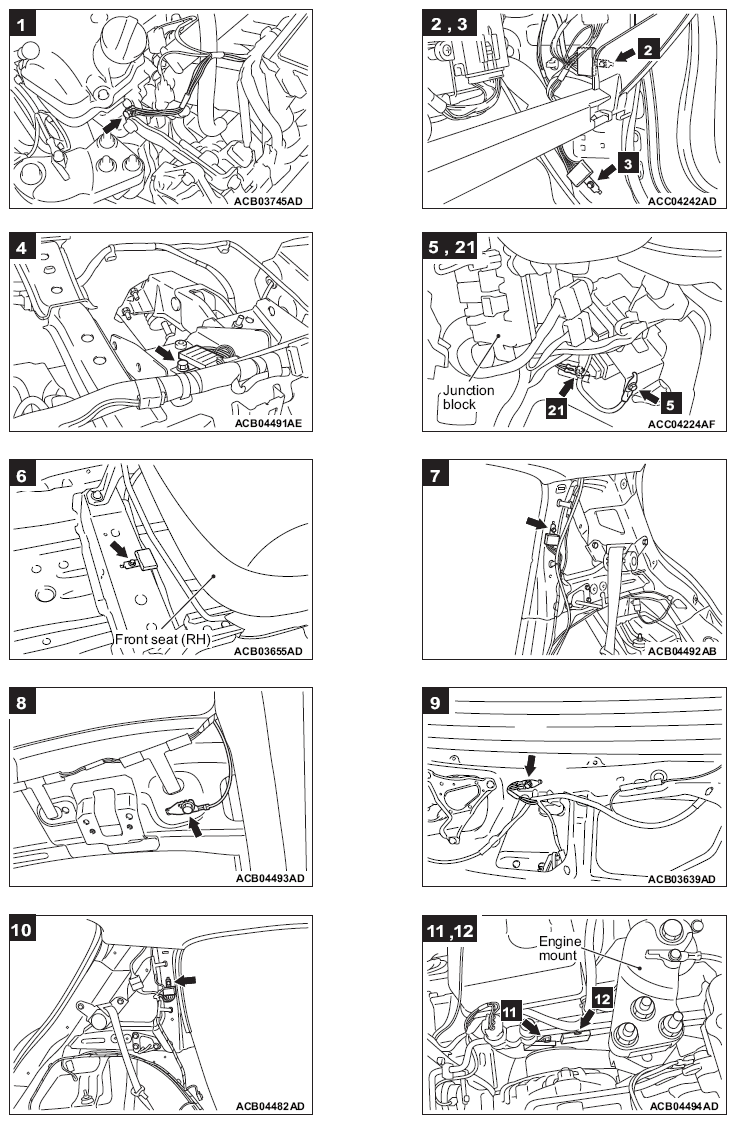

G15753774Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

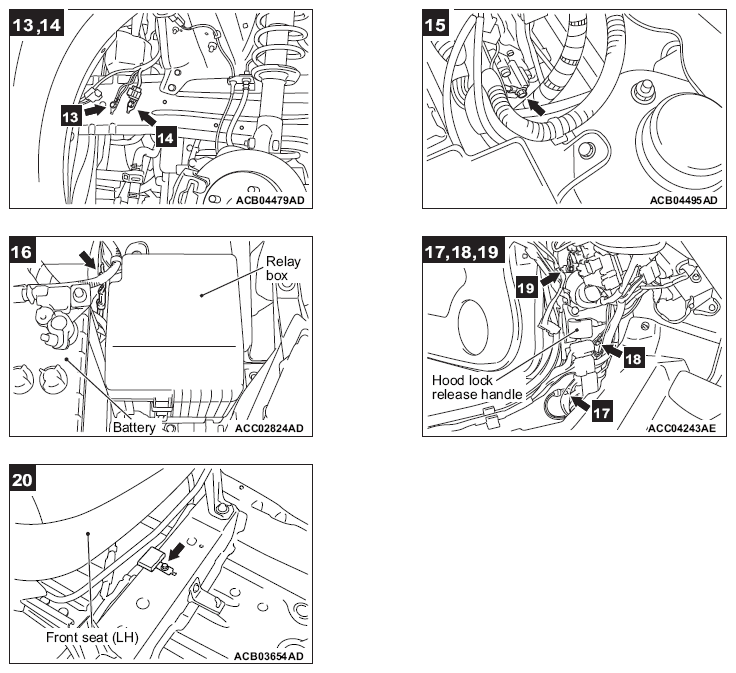

G15753775Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
