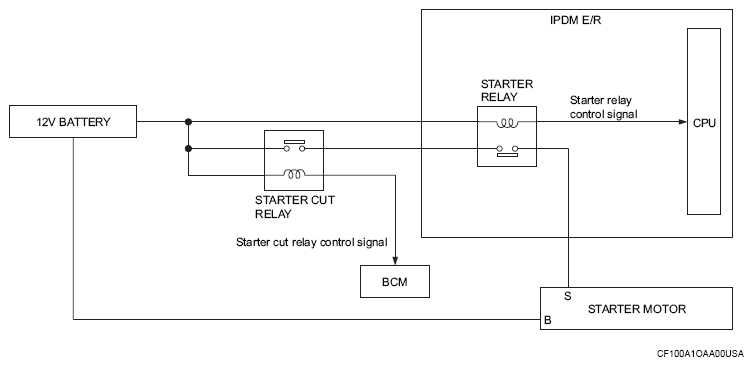

System Diagram
| Component | Function |
|---|---|
| Starter motor | Refer to Starter motor STARTER MOTOR . |
| IPDM E/R | CPU inside IPDM E/R controls starter relay. Refer to COMPONENT PARTS LOCATION |
| BCM | BCM controls starter cut relay. Refer to COMPONENT PARTS LOCATIONComponent Parts Location |
| Starter cut relay | Power is supplied to the starter cut relay with BCM control. |
