IPDM E/R
>>
Exploded View

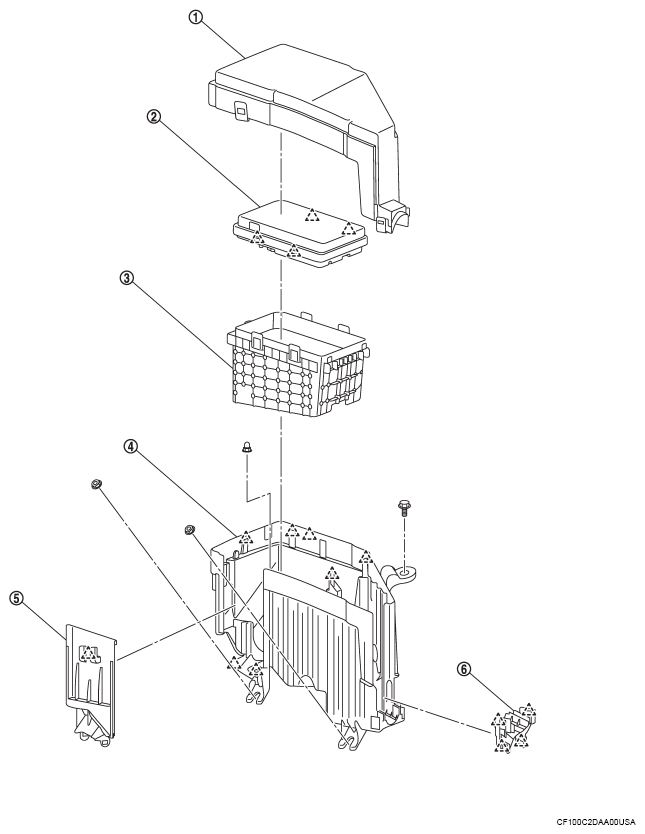

Exploded View
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
1
IPDM E/R cover A
2
IPDM E/R
3
IPDM E/R cover B
4
IPDM E/R cover C
5
IPDM E/R cover D
6
IPDM E/R cover E
Δ:
Pawl
