| Each switch |

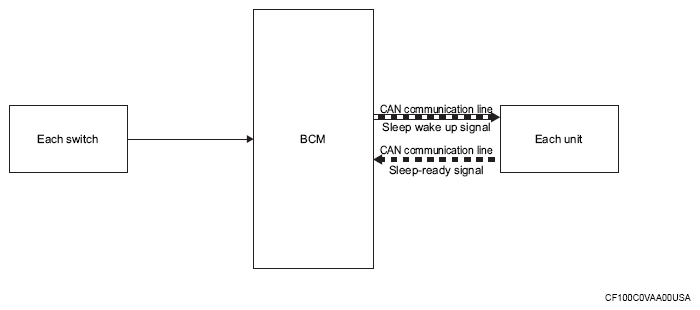

Each switch transmits the vehicle status to BCM. |
| BCM |
- BCM transmits the sleep wake up signal to each unit according to vehicle status.
- BCM receives the sleep-ready signal from each unit via CAN communication.
|
| IPDM E/R |
- Transmits the sleep-ready signal to BCM according to unit status.
- Receives the sleep wake up signal from BCM via CAN communication.
|
| Combination meter |
| Keyless operation key unit |
| AV control unit |
| TCU |
| Electric parking brake control module |
| 8CH CAN gateway |
Receives the sleep wake up signal from BCM via CAN communication. |
| ABS actuator and electric unit (control unit) |
