Exploded View

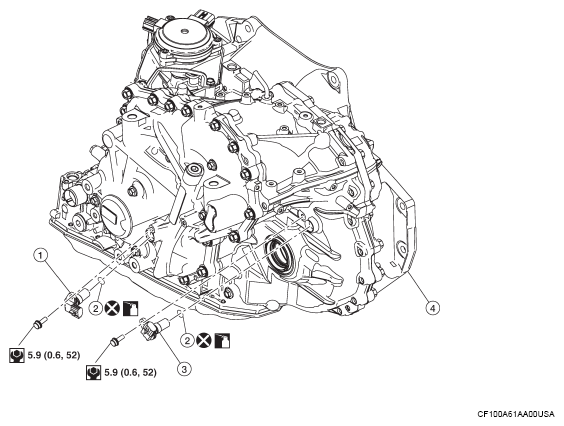

Fig 1: Removing/Installing Output Speed Sensor Components Location With Torque Specification
G16071482Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
(1) Primary speed sensor
(2) O-ring
(3) Output speed sensor
(4) Transaxle assembly
: N.m (kg-m, in-lb)
: Always replace after every disassembly.
: Apply CVT fluid.
