Exploded View

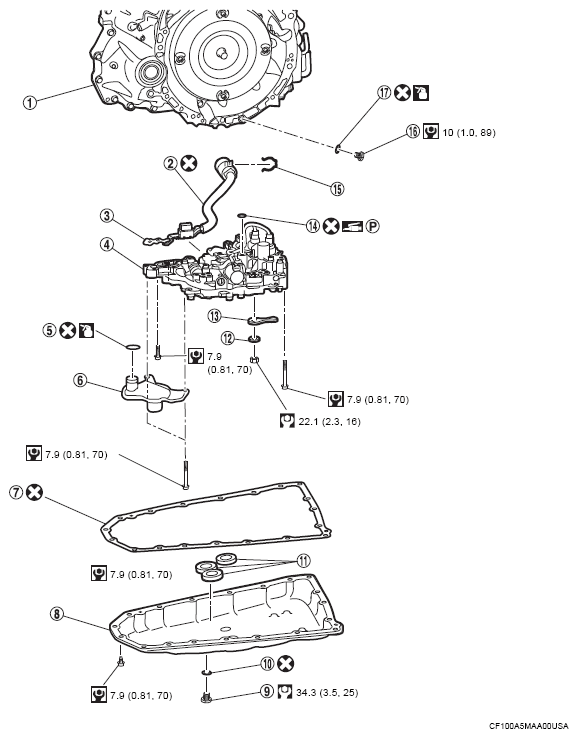

Fig 1: Removing/Installing Transaxle Assembly Components Location With Torque Specification (1 Of 4)
| (1) | Transaxle assembly |
| (2) | Terminal cord assembly |
| (3) | CVT fluid temperature sensor bracket |
| (4) | Control valve |
| (5) | O-ring |
| (6) | Oil strainer assembly |
| (7) | Oil pan gasket |
| (8) | Oil pan |
| (9) | Drain plug |
| (10) | Drain plug gasket |
| (11) | Magnet |
| (12) | Spring washer |
| (13) | Manual plate |
| (14) | Lip seal |
| (15) | Snap ring |
| (16) | Overflow plug |
| (17) | O-ring |
| (A) | Refer to DISASSEMBLY & ASSEMBLY . |
| : Always replace after every disassembly | |
| : N.m (kg-m, ft-lb) | |
| : N.m (kg-m, in-lb) | |
| : Apply CVT fluid | |
| : Apply petroleum jelly |
Fig 2: Removing/Installing Transaxle Assembly Components Location With Torque Specification (2 Of 4)
| (1) | Reduction gear assembly |
| (2) | Differential assembly |
| (3) | Clip |
| (4) | Lubrication tube |
| (5) | Baffle plate |
| (6) | Converter housing |
| (7) | Baffle plate |
| (8) | Snap ring |
| (9) | Drive sprocket |
| (10) | Driven sprocket |
| (11) | Oil pump chain |
| (12) | O-ring |
| (13) | Baffle plate (Chain cover) |
| (14) | Thrust bearing |
| (15) | Dummy cover |
| (16) | Thrust washer |
| (17) | Chain guide |
| (18) | Bracket |
| (19) | Oil pump |
| (20) | O-ring |
| (21) | Transaxle case |
| (A) | Seal ring |
| : Always replace after every disassembly . | |
| : N.m (kg-m, ft-lb) | |
| : N.m (kg-m, in-lb) | |
| : Apply CVT fluid | |
| : Apply Loctite 5460 or equivalent | |
| : Apply petroleum jelly | |
| : Select with proper thickness |
Fig 3: Removing/Installing Transaxle Assembly Components Location With Torque Specification (3 Of 4)
| (1) | Transaxle assembly |
| (2) | Differential side oil seal |
| (3) | Converter housing oil seal |
| (4) | Torque converter |
| (5) | Fluid filter cover |
| (6) | CVT fluid filter |
| (7) | O-ring |
| (8) | Shift actuator |
| (9) | Differential side oil seal |
| (A) | Grommet seal |
| (B) | Spline part |
| : Always replace after every disassembly . | |
| : N.m (kg-m, ft-lb) | |
| : N.m (kg-m, in-lb) | |
| : Apply CVT fluid | |
| : Apply lithium-based grease including molybdenum disulphide |
Fig 4: Removing/Installing Transaxle Assembly Components Location With Torque Specification (4 Of 4)
| (1) | Transaxle case |
| (2) | Thrust bearing |
| (3) | Sub-assembly |
| (4) | O-ring |
| (5) | Primary speed sensor |
| (6) | O-ring |
| (7) | O-ring |
| : Always replace after every disassembly . | |
| : N.m (kg-m, ft-lb) | |
| : N.m (kg-m, in-lb) | |
| : Apply CVT fluid | |
| : Apply Loctite 5460 or equivalent | |
| : Apply petroleum jelly |
