Disassembly And Assembly: Notes

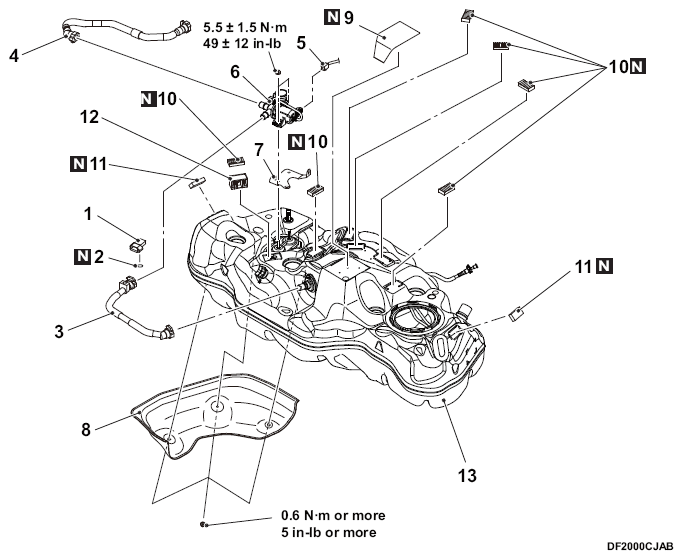

Fig 1: Disassembling/Assembling Fuel Tank Components Location With Torque Specifications

G16755392

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

		Disassembly steps
1. Fuel vapor pressure sensor
2. O-ring
<<A>>	>>B<<	3. Fuel vapor hose
<<A>>	>>B<<	4. Fuel vapor hose A
<<B>>	>>A<<	5. Floor sub-harness
6. Fuel tank solenoid valve
7. Harness bracket
8. Fuel tank protector
9. Fuel tank protector pad A
10. Fuel tank protector pad B
11. Fuel tank protector pad C
12. Fuel tank pad protector
13. Fuel tank
