1975-78 Manual Transmission Models

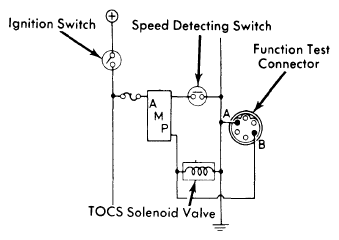

  1. Check for continuity between terminals "A" and "B" of function test connector. See Figure. With zero (0) voltage, continuity should exist between terminals.
  2. Block front wheels and raise rear of vehicle. Start engine and gradually increase speed to above 10 MPH. Check voltage across terminals "A" and "B" at function test connector.
  3. Voltage reading should be zero (0). If continuity and voltage readings are incorrect, check for faulty in-line fuse, poor connections, faulty amplifier, speed switch, or TOCS solenoid.
