Sentra (M.P.G.)

Fuel shut-off system is controlled by the electronic control unit. Refer to "Datsun Electronically Controlled Carburetor" article in this section.

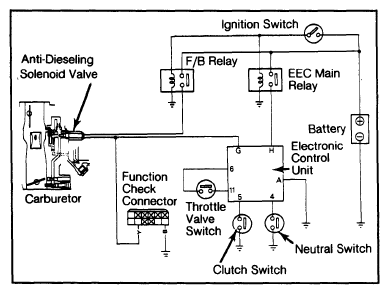

Fig 1: Datsun Sentra (M.P.G.) Fuel Shut-Off System
G09315643Courtesy of NISSAN NORTH AMERICA, INC.
