Home >> Nissan-Datsun >> 1982 >> Sentra XE, Automatic Trans >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Fuel Shut-Off System >> Testing >> System Check >> Stanza

System Check: Stanza

  1. Disconnect harness connector on carburetor. Reconnect Red wire and Black wire only. Start engine. Increase engine speed to 2500 RPM. Engine should stop.
  2. If not, check engine revolution switch harness connections and repair as necessary. If connections are okay, replace engine revolution switch.

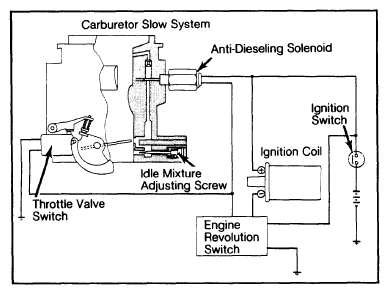

    Fig 1: Datsun Stanza Fuel Shut-Off System
    G09315646Courtesy of NISSAN NORTH AMERICA, INC.
