Spark Timing Control System

  1. On Maxima and 280ZX, disconnect Gray harness connector from distributor. On all others, ensure all vacuum hoses are in good condition and properly connected.

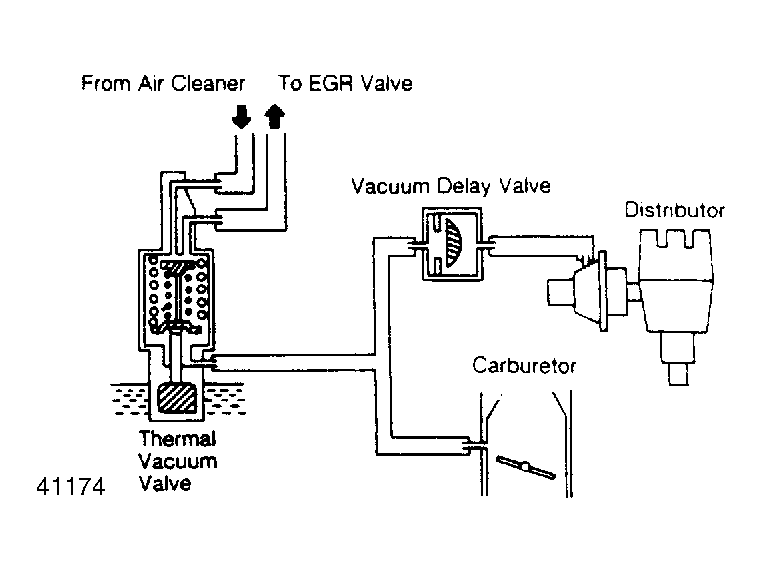

    Fig 1: Spark Timing Control System (Pulsar & Sentra)
    G41174
  2. Place transmission in Neutral or Park. With engine cold, connect timing light. Start engine and note timing.

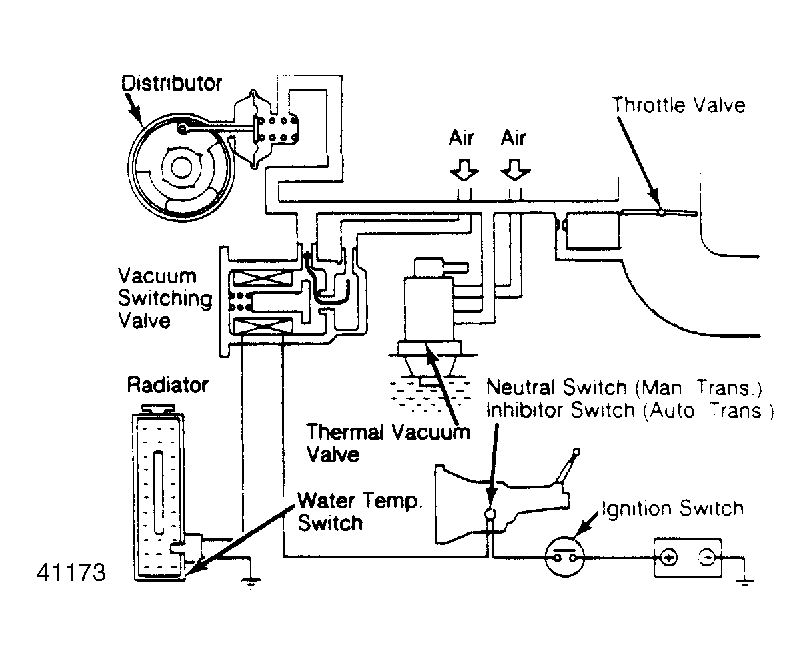

    Fig 2: Spark Timing Control System (200SX) System shown is in warm-up condition.
    G41173
  3. As needle of temperature gauge reaches middle position, timing should advance from former position. If timing does not perform as described, replace thermal vacuum valve.
