Ignition Timing

The ECCS control unit uses sensor input to determine correct timing. It sends a signal to a power transistor located on coil, which permits current to flow through coil. Timing is advanced and retarded by control unit based on sensor input, built-in programming and detonation sensor signals.

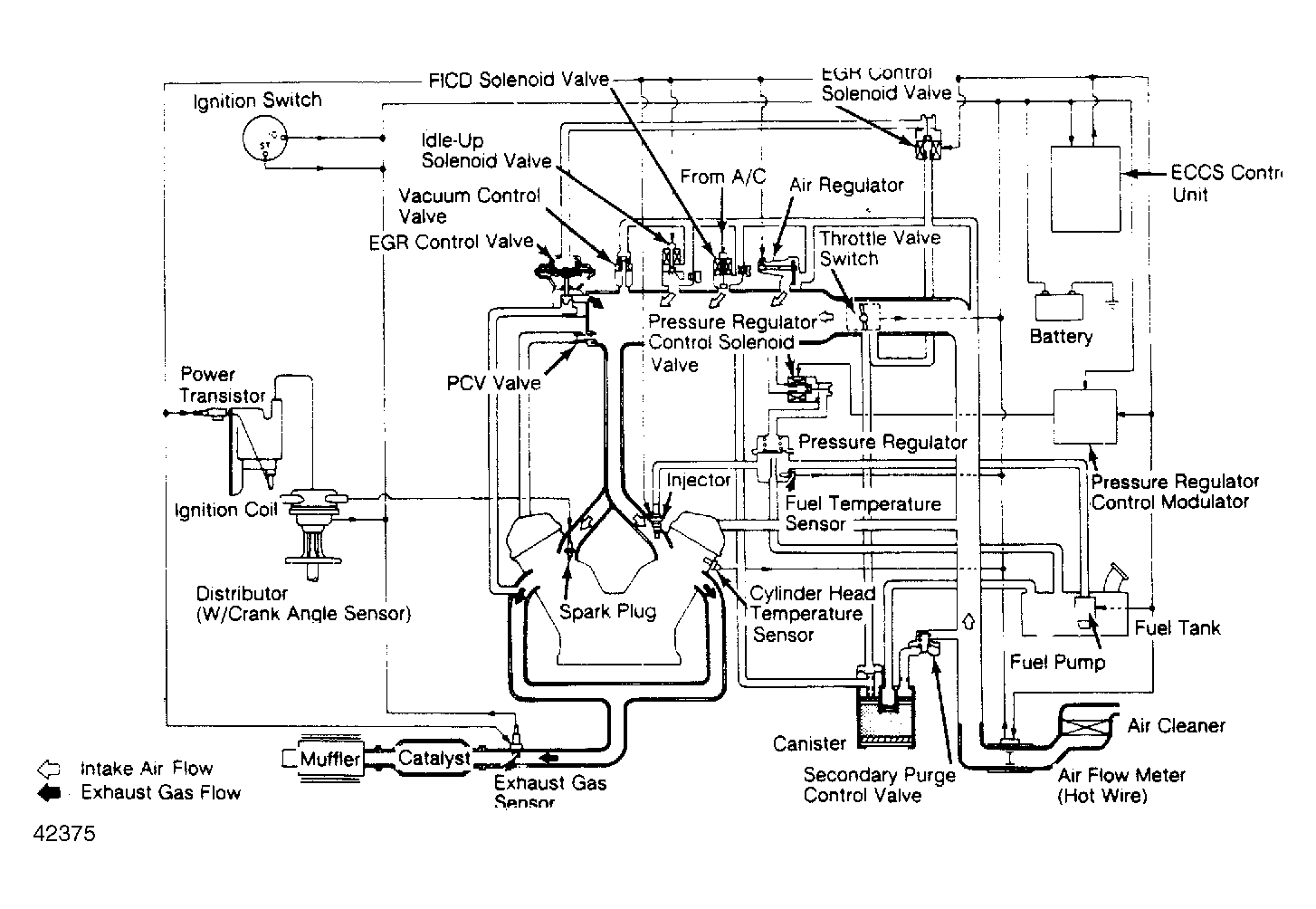

Fig 1: 300ZX ECCS Schematic & Vacuum Diagram Note direction of flow.

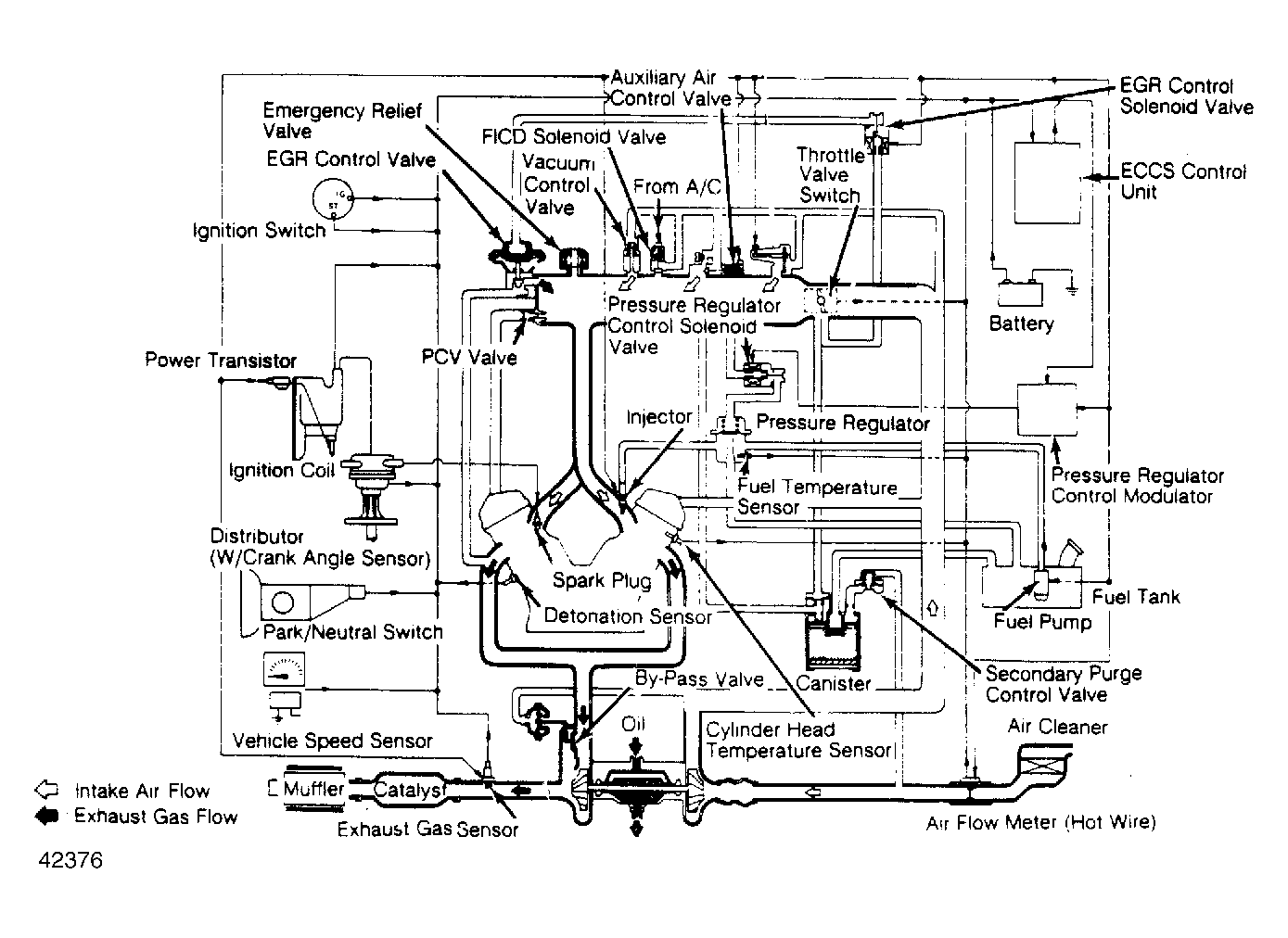

Fig 2: 300ZX Turbo ECCS Schematic & Vacuum Diagram Note direction of flow.
