DRIVEABILITY Inspection Tables

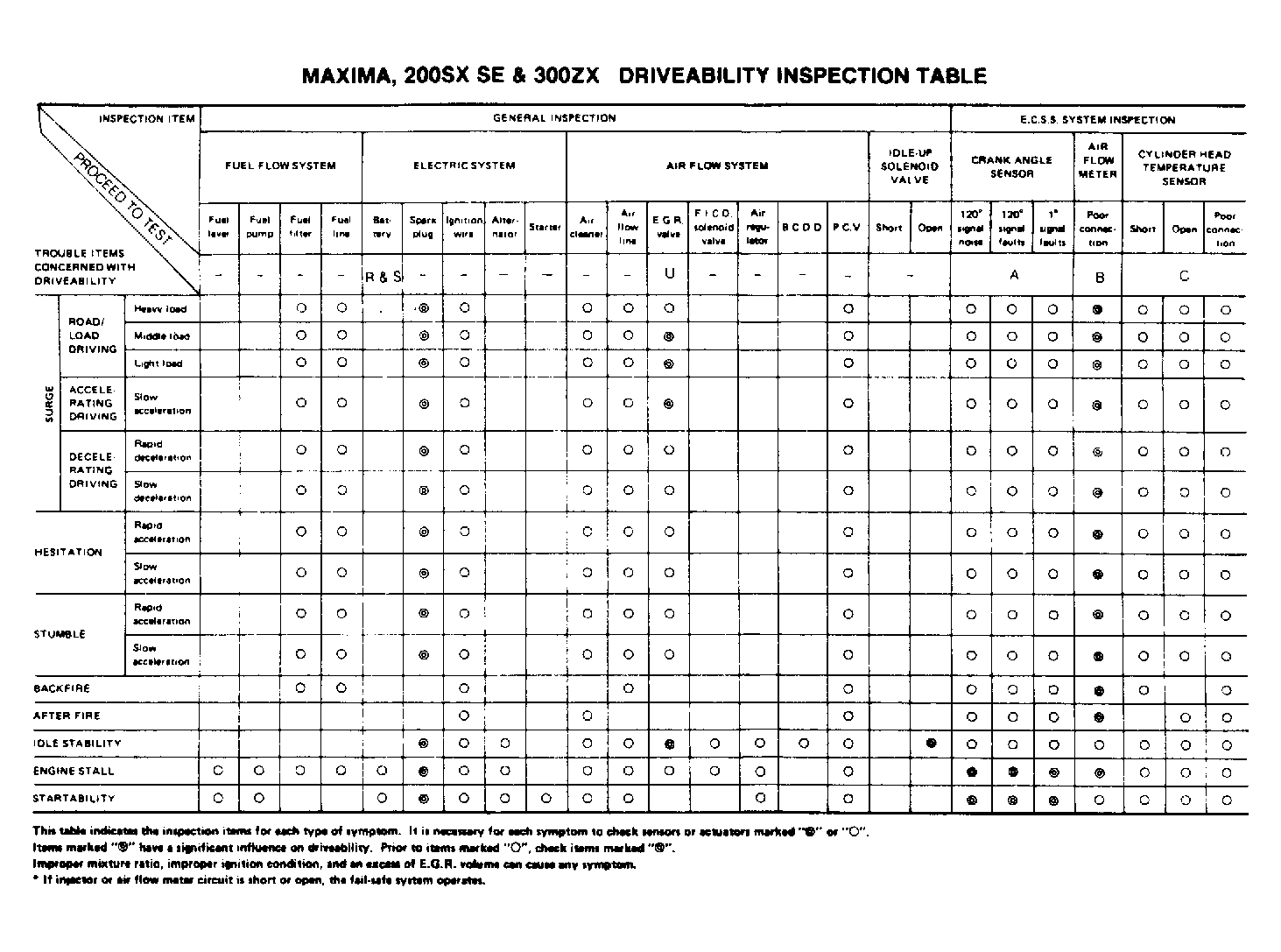

Fig 1: Maxima, 200SX SE & 300 ZX

G61640

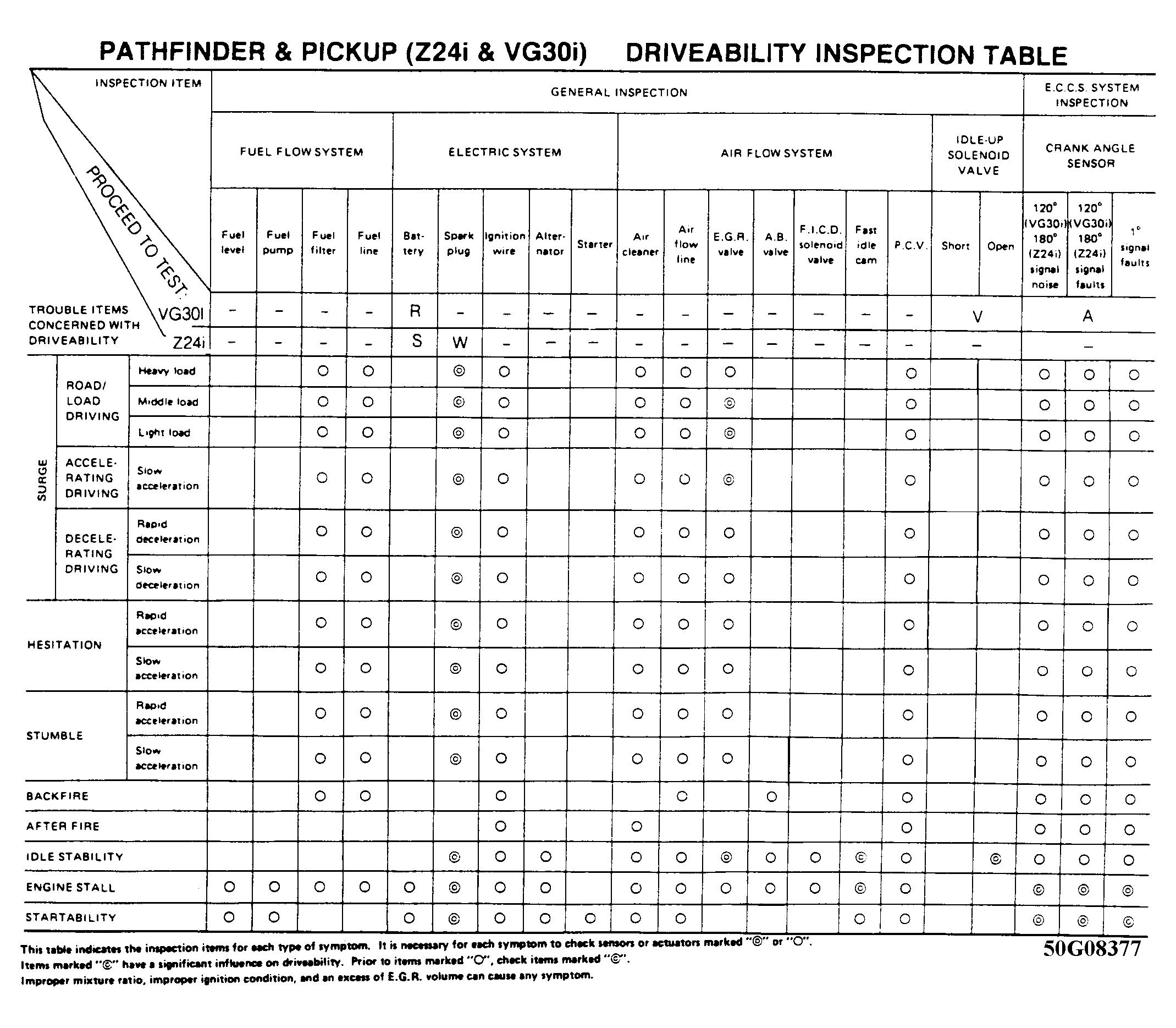

Fig 2: Pathfinder & Pickup (Z24i & VG 30i)

G50G08377

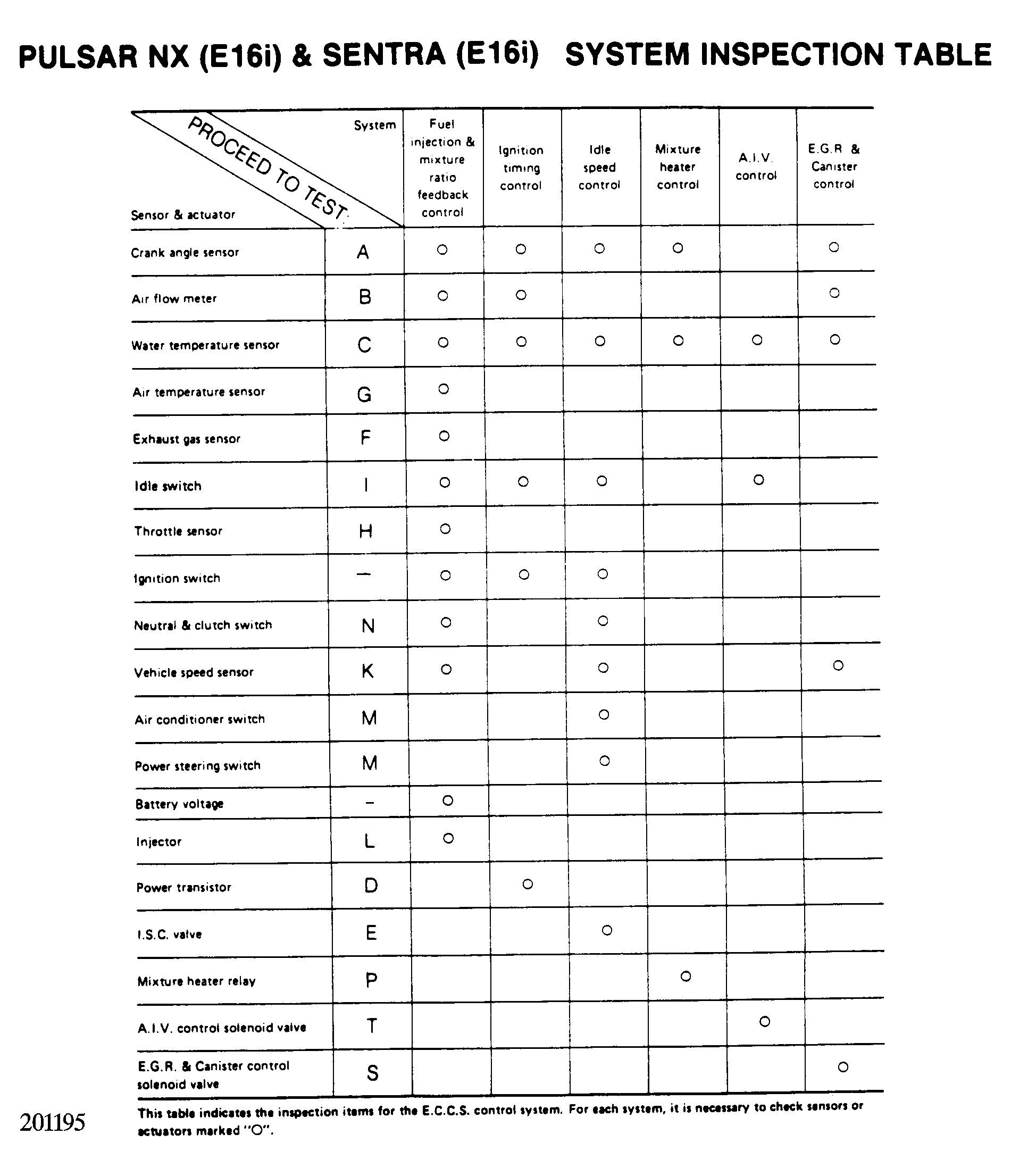

Fig 3: Pulsar NX (E16i) & Sentra (E16i) (1 of 2)

G201195

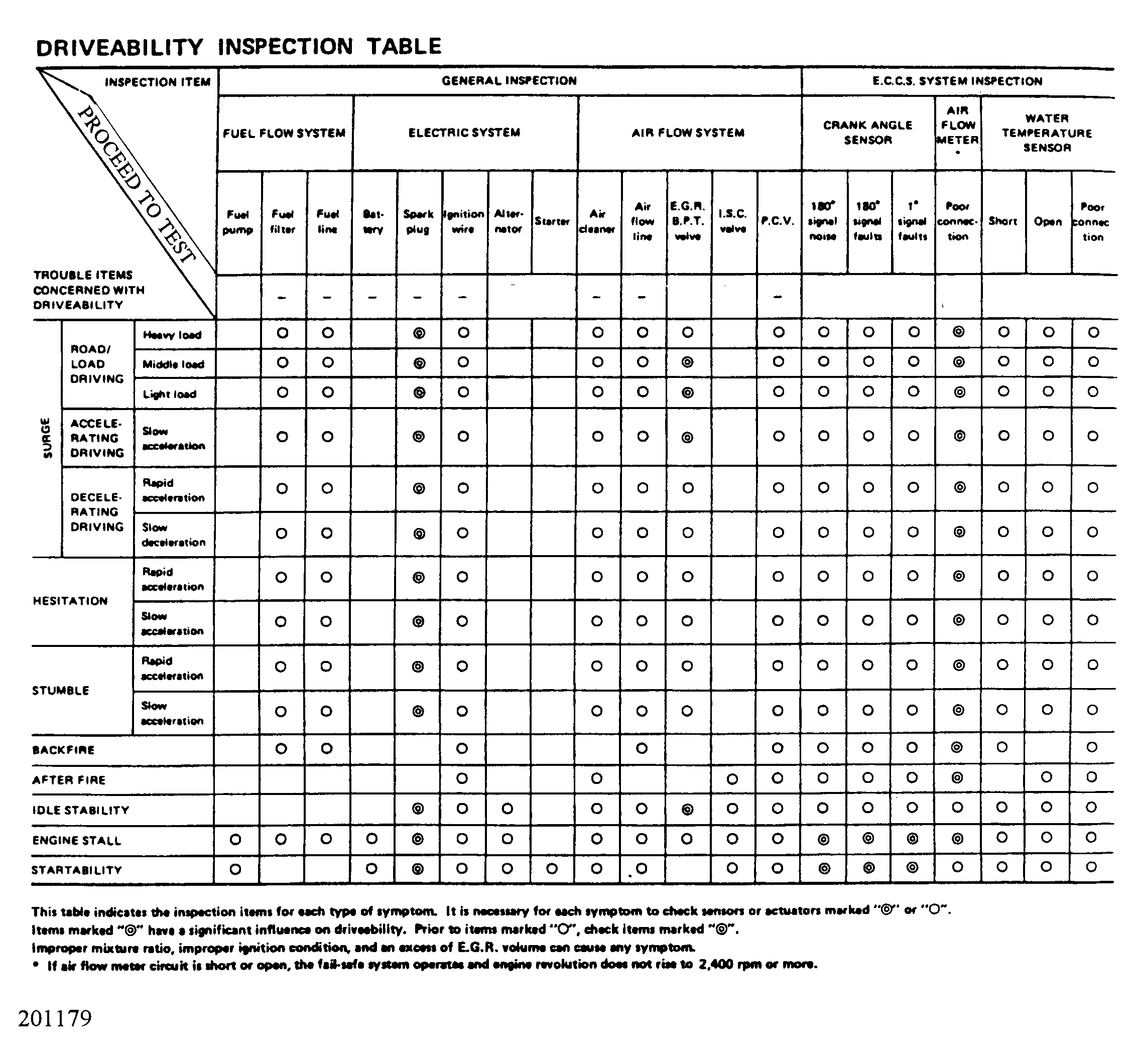

Fig 4: Pulsar NX (E16i) & Sentra (E16i) (2 of 2)

G201179

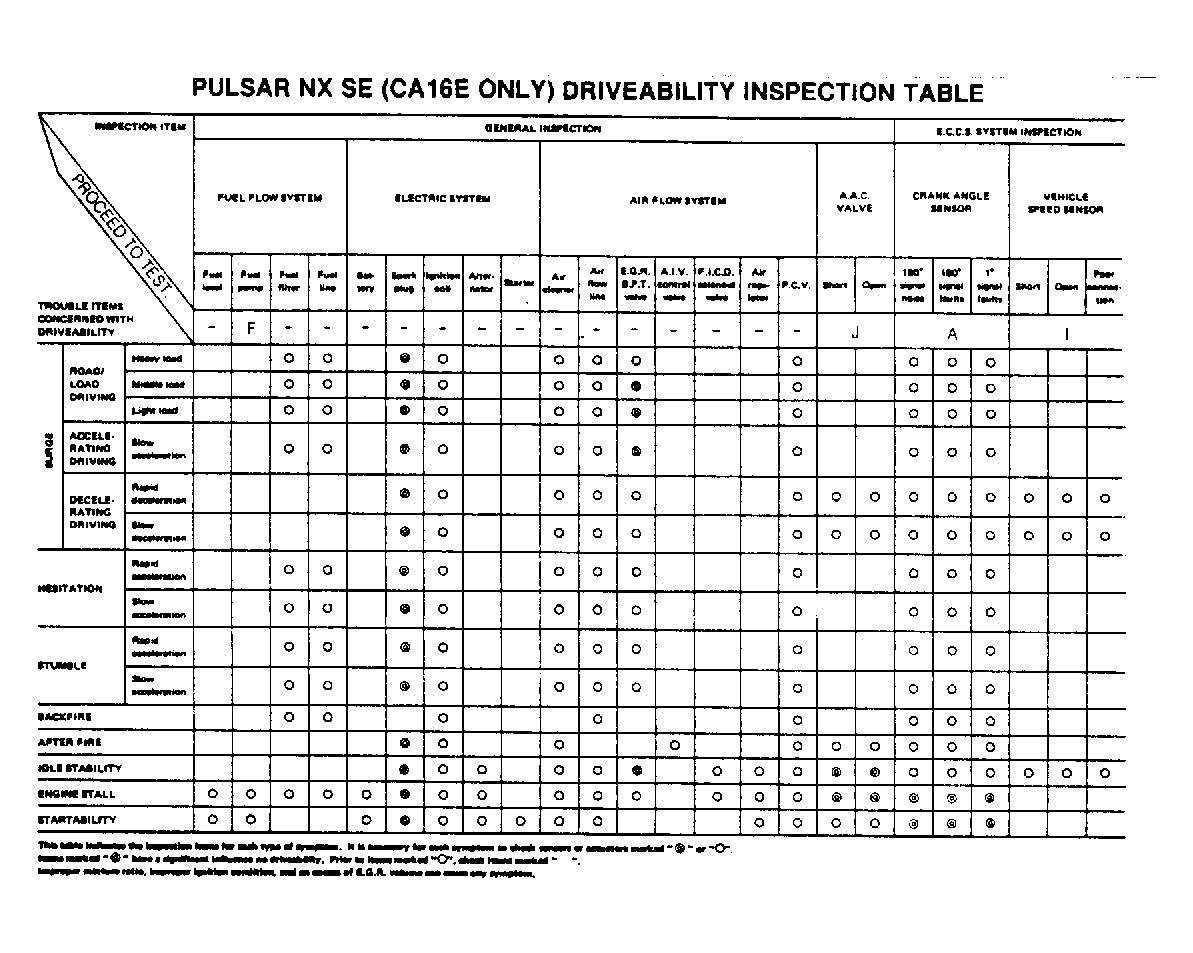

Fig 5: Pulsar NX SE (CA 16E)

G61650

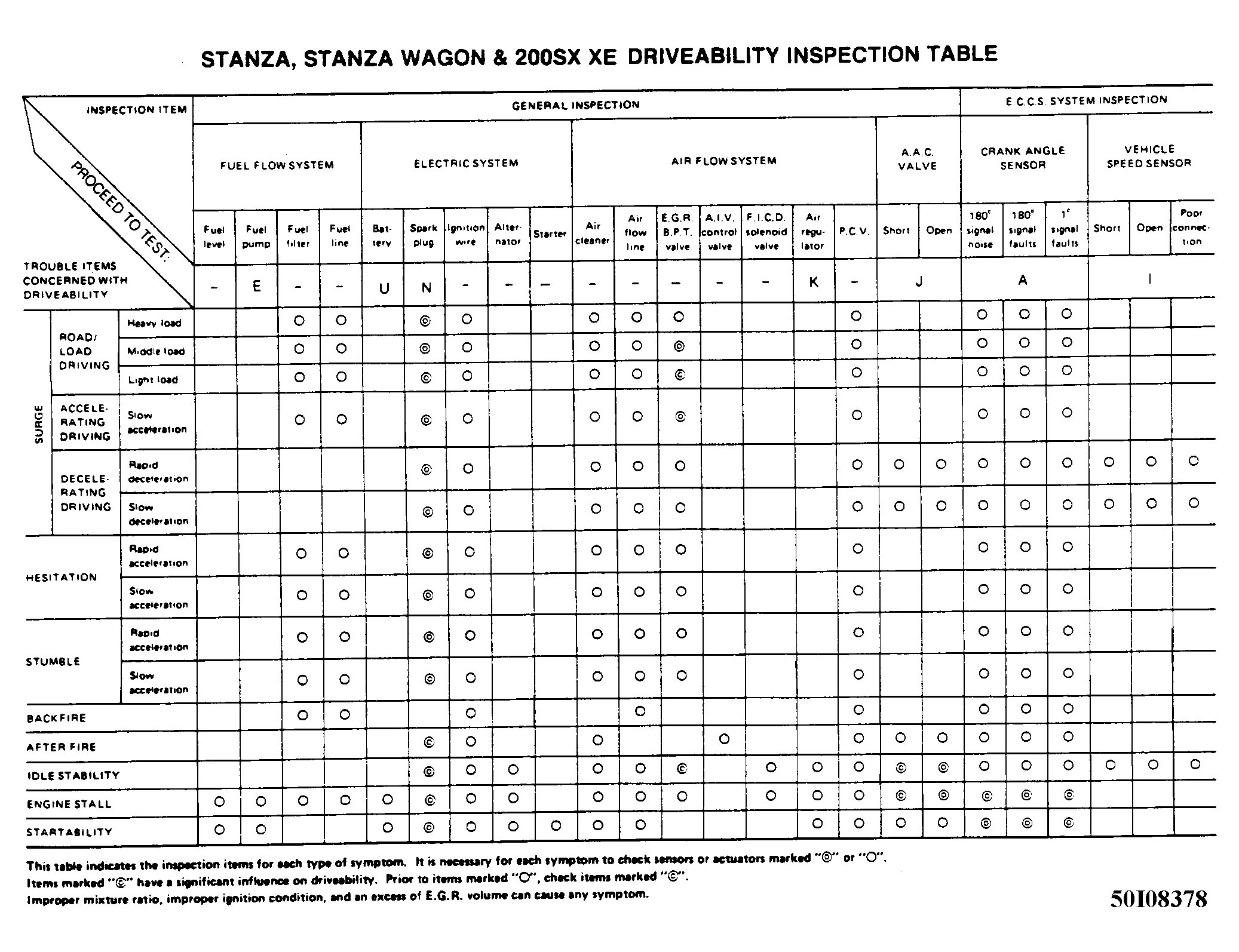

Fig 6: Stanza, Stanza Wagon & 200SX XE

G50I08378

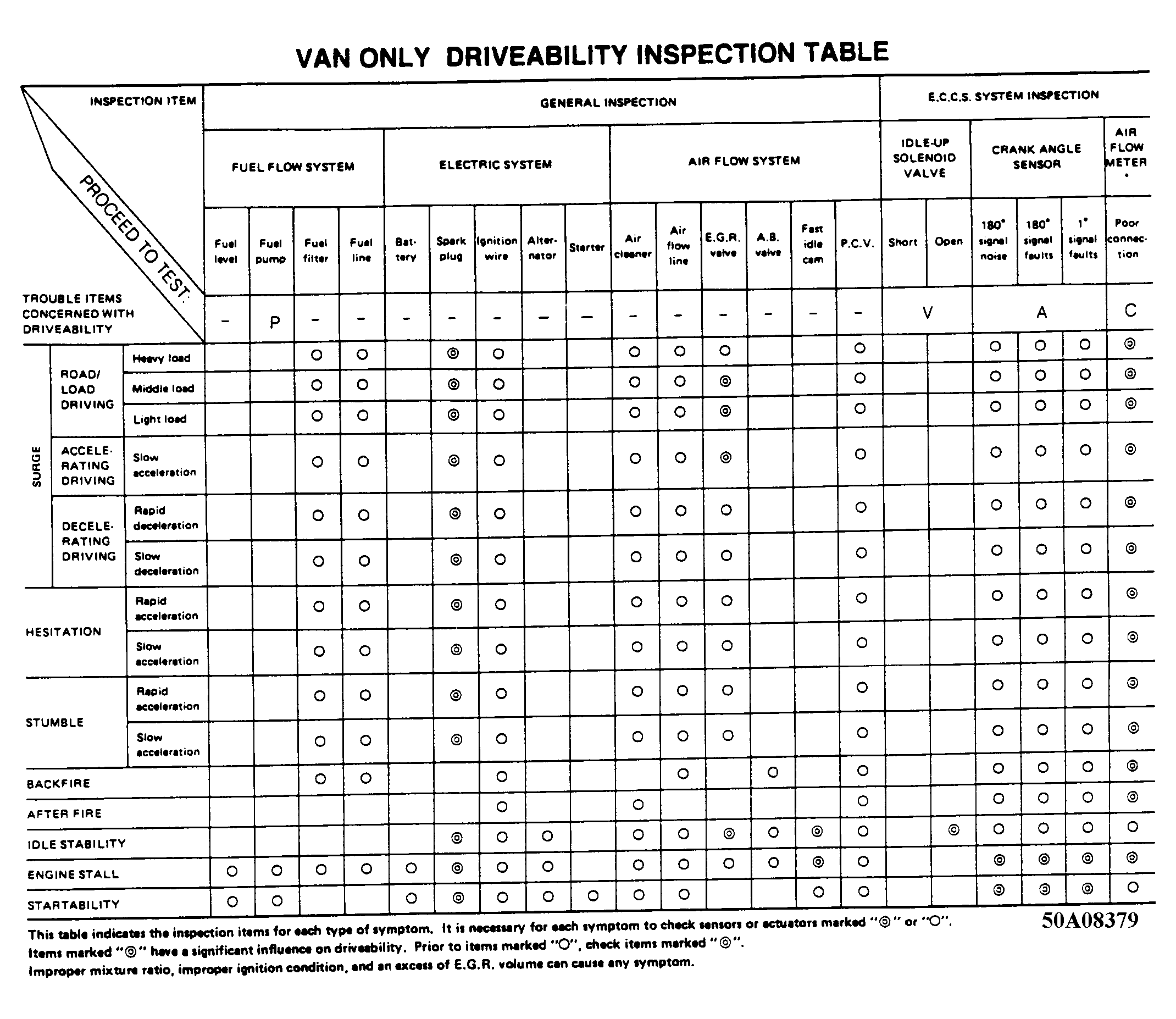

Fig 7: Van

G50A08379
