Code 11, Crank Angle Sensor

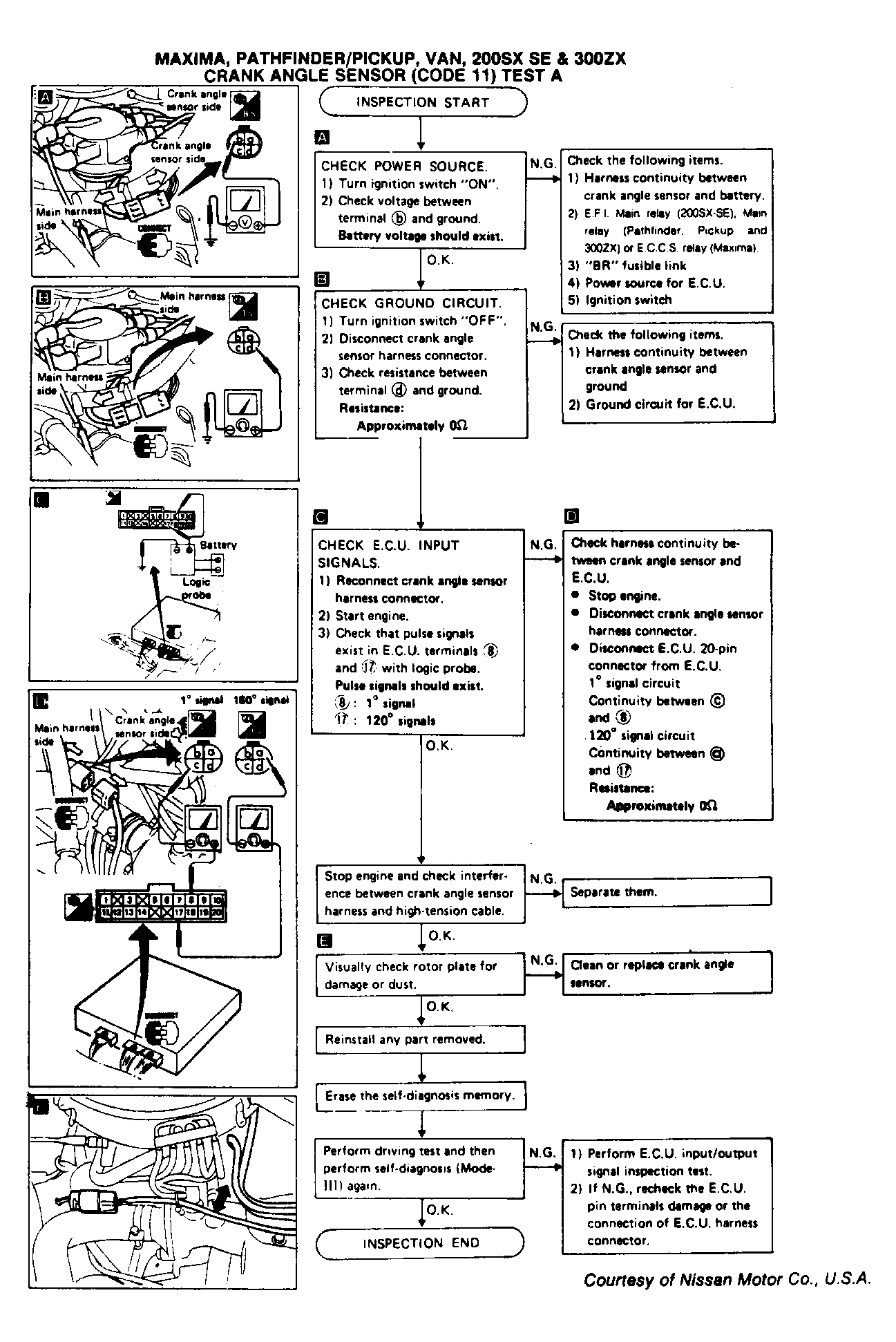

Fig 1: Test A, Maxima, Van, 200SX SE & 300ZX

G61658

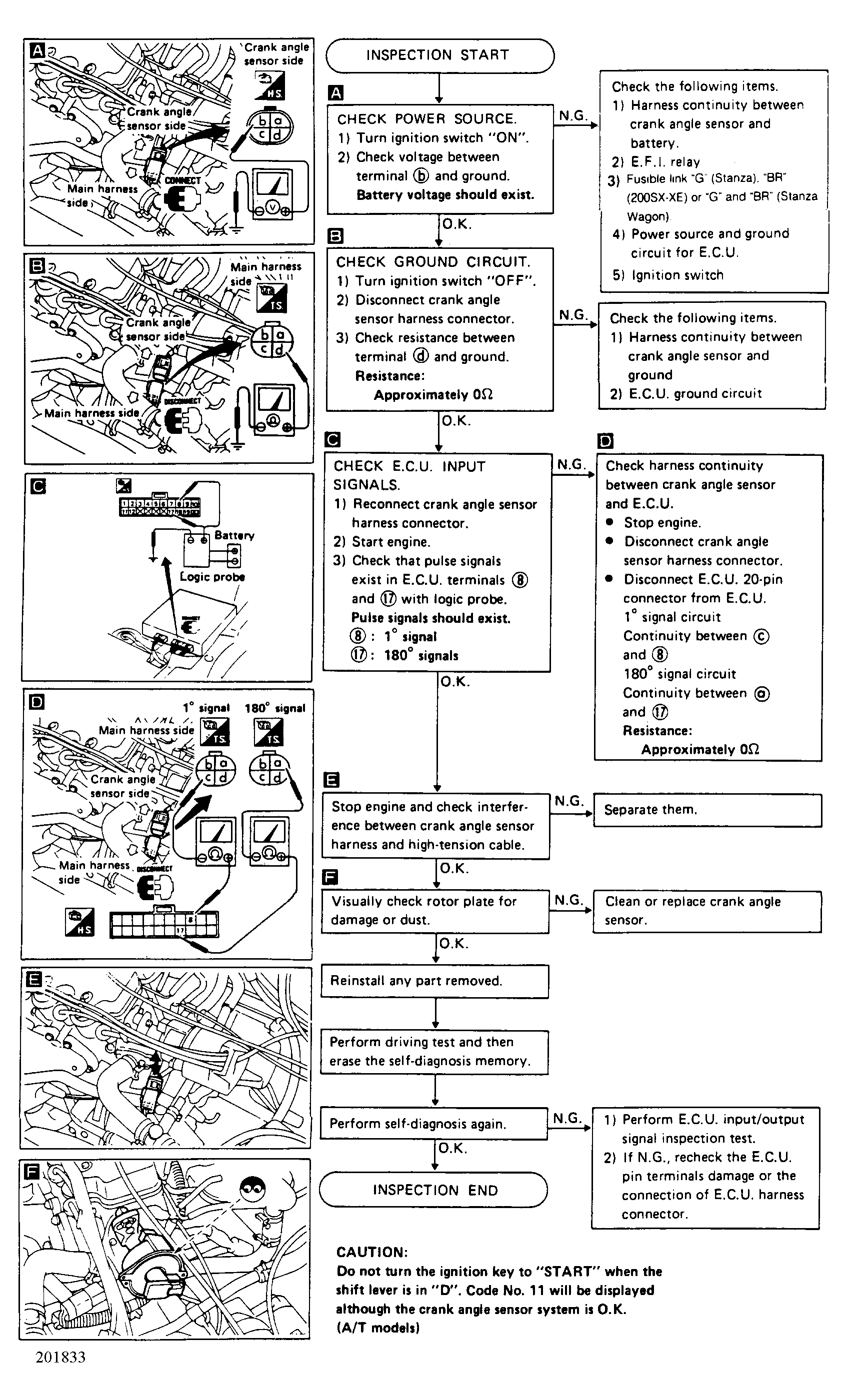

Fig 2: Test A, Pulsar NX, Sentra (E16i), Stanza, Wagon & 200SX XE

G201833

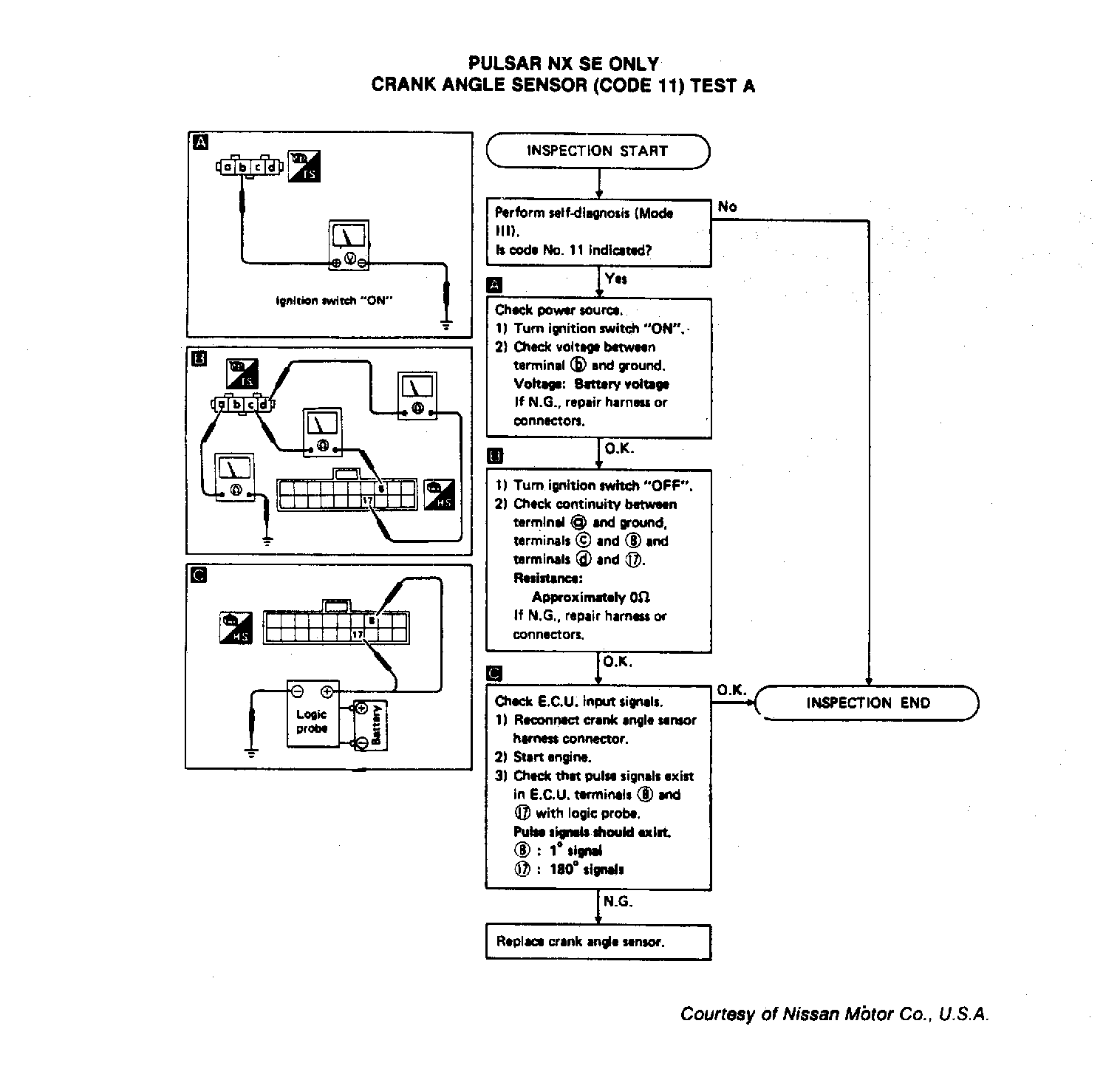

Fig 3: Test A, Pulsar NX SE

G61660
