Code 12, Airflow Meter

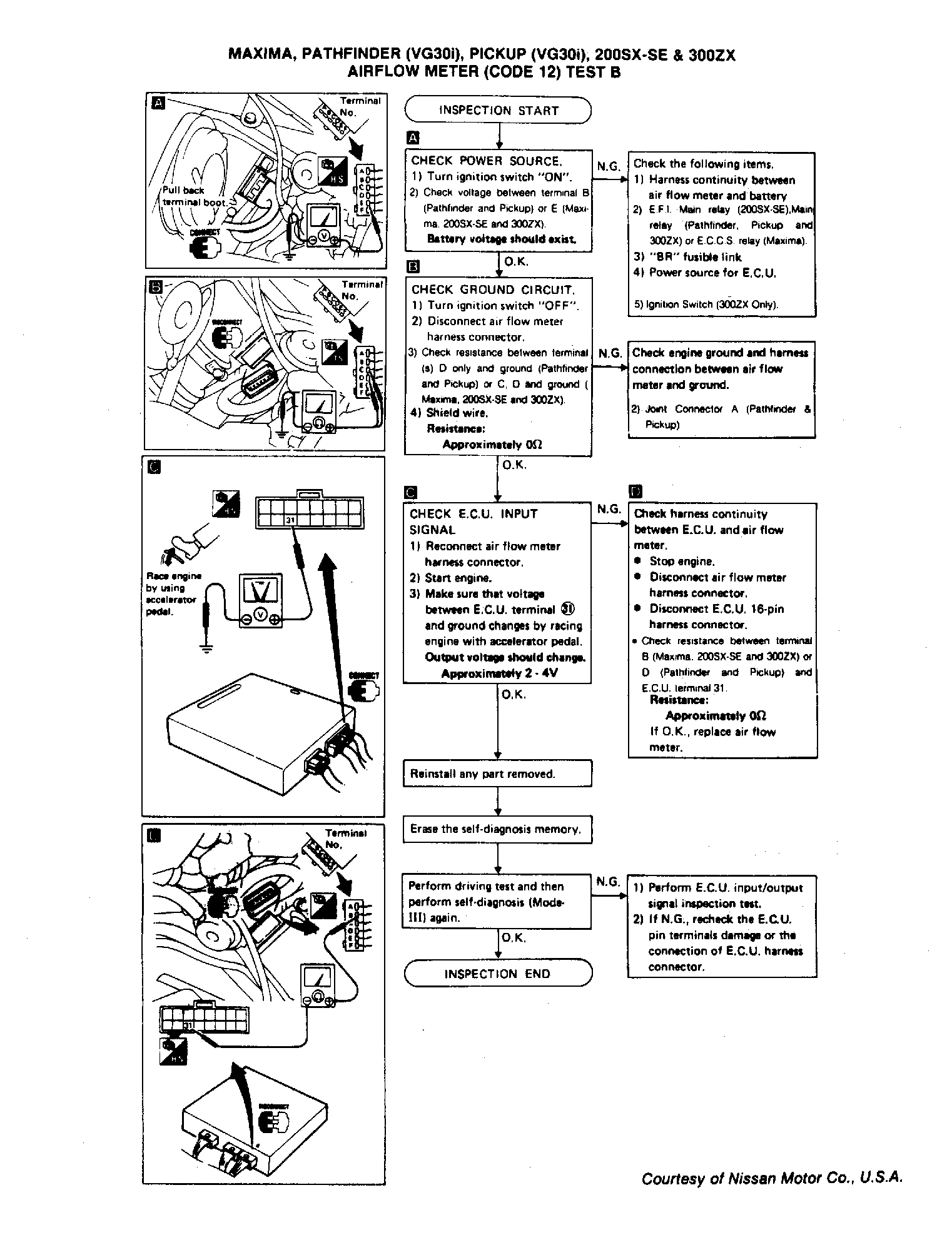

Fig 1: Test B, Maxima, Pathfinder, Pickup (VG30i), 200SX-SE & 300ZX

G61661

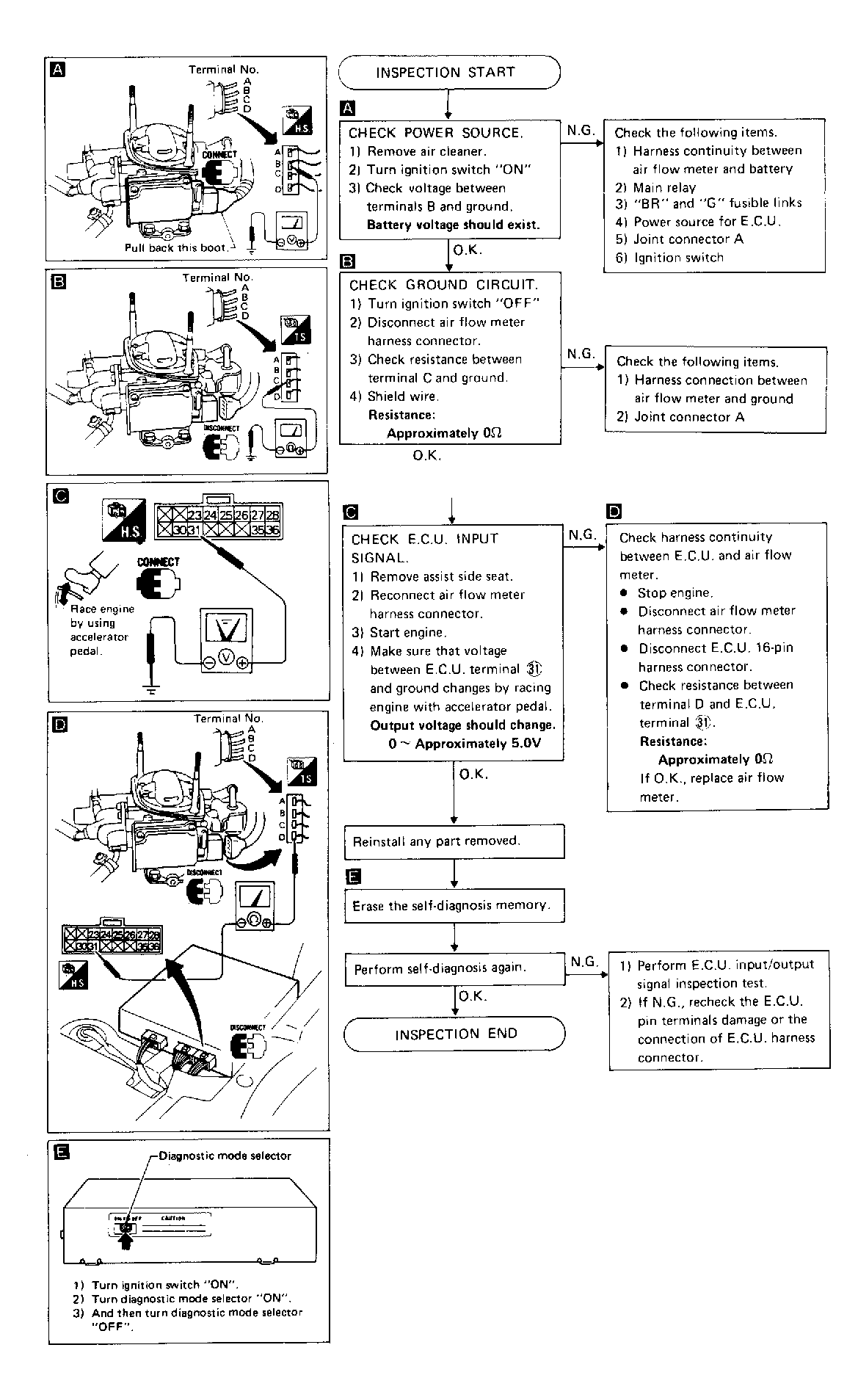

Fig 2: Test B, Pathfinder/Pickup (Z24i)

G61662

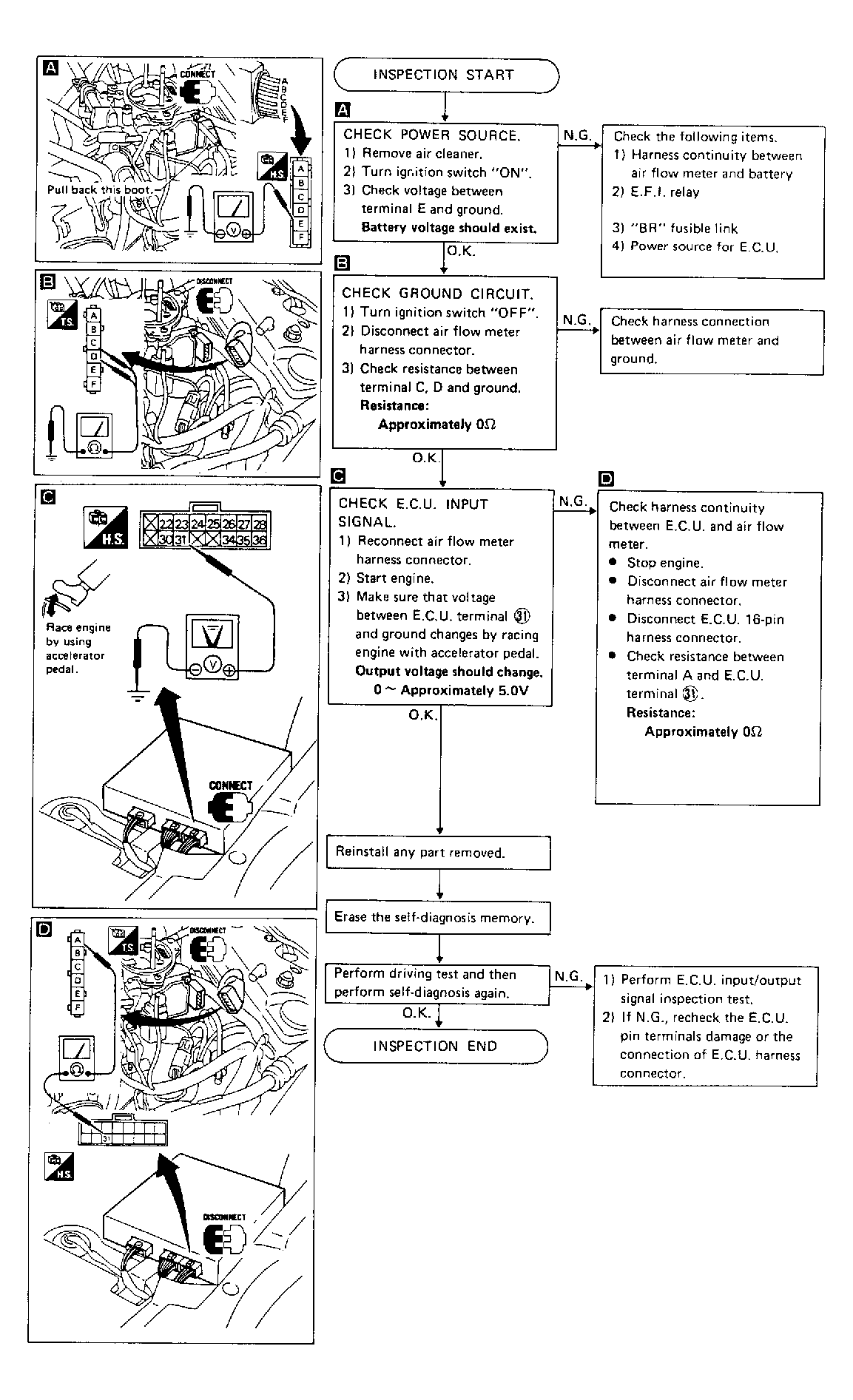

Fig 3: Test B, Pulsar NX & Sentra (E16i)

G61663

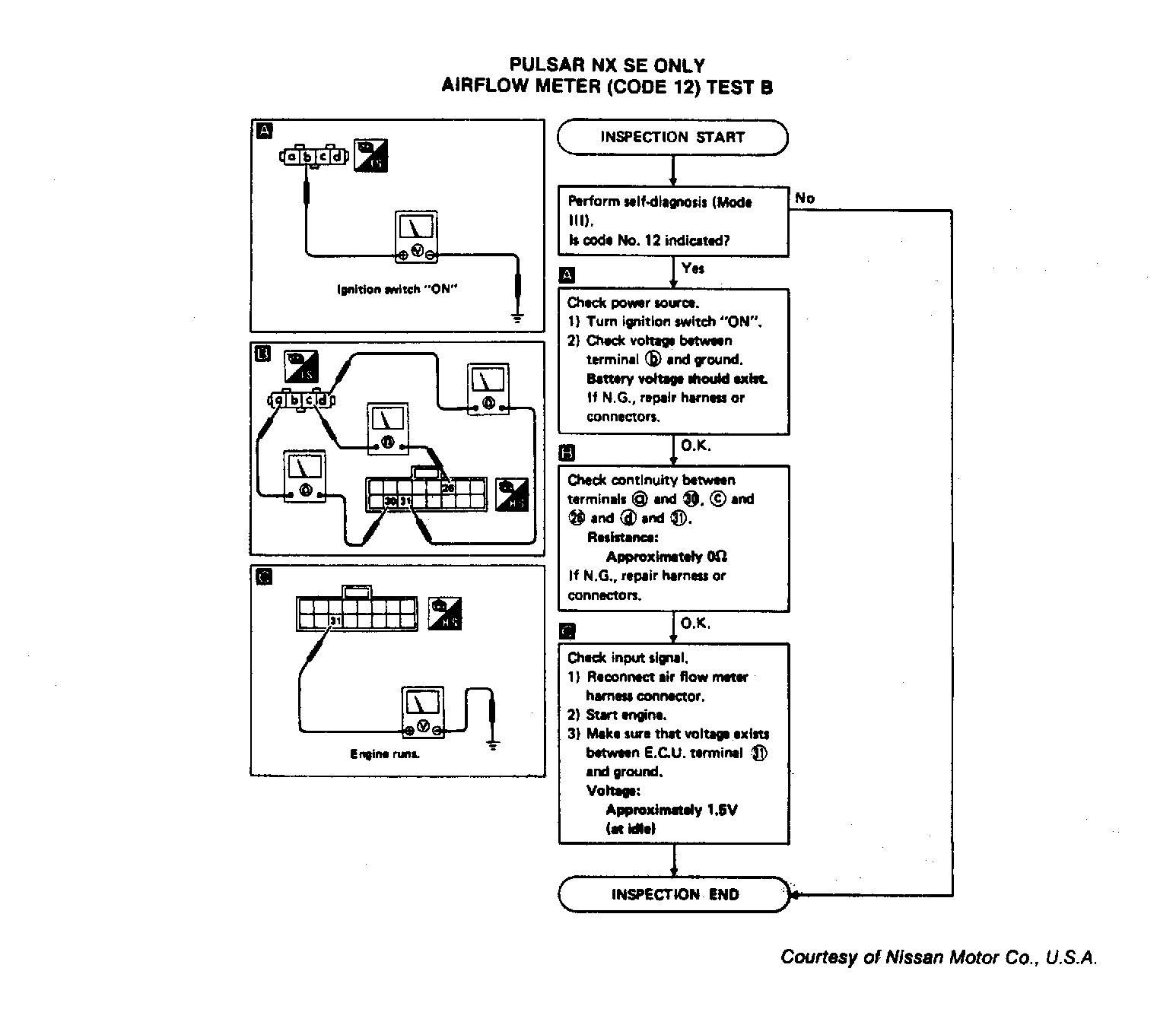

Fig 4: Test B, Pulsar NX SE

G61664

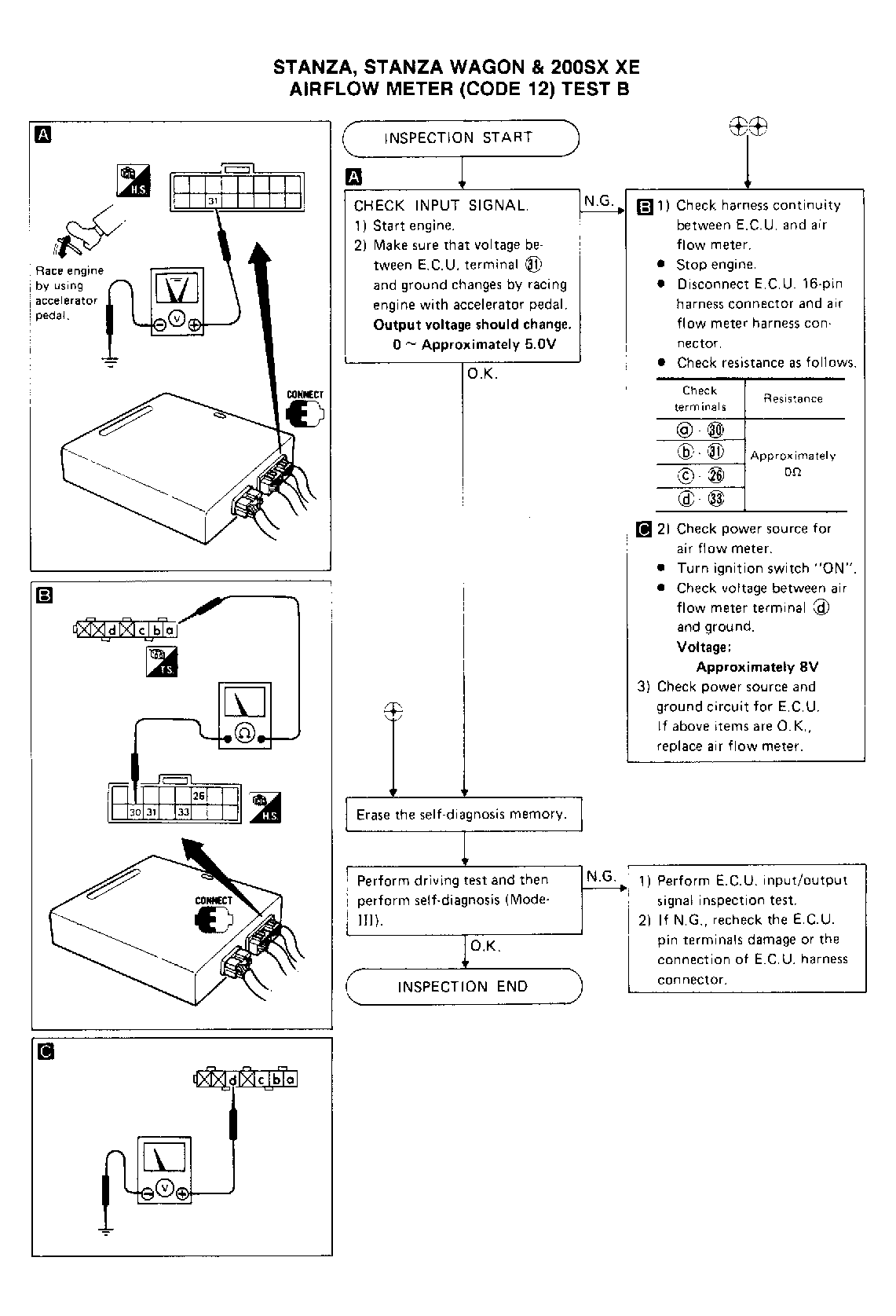

Fig 5: Test B, Stanza, Stanza Wagon & 200SX XE

G61665

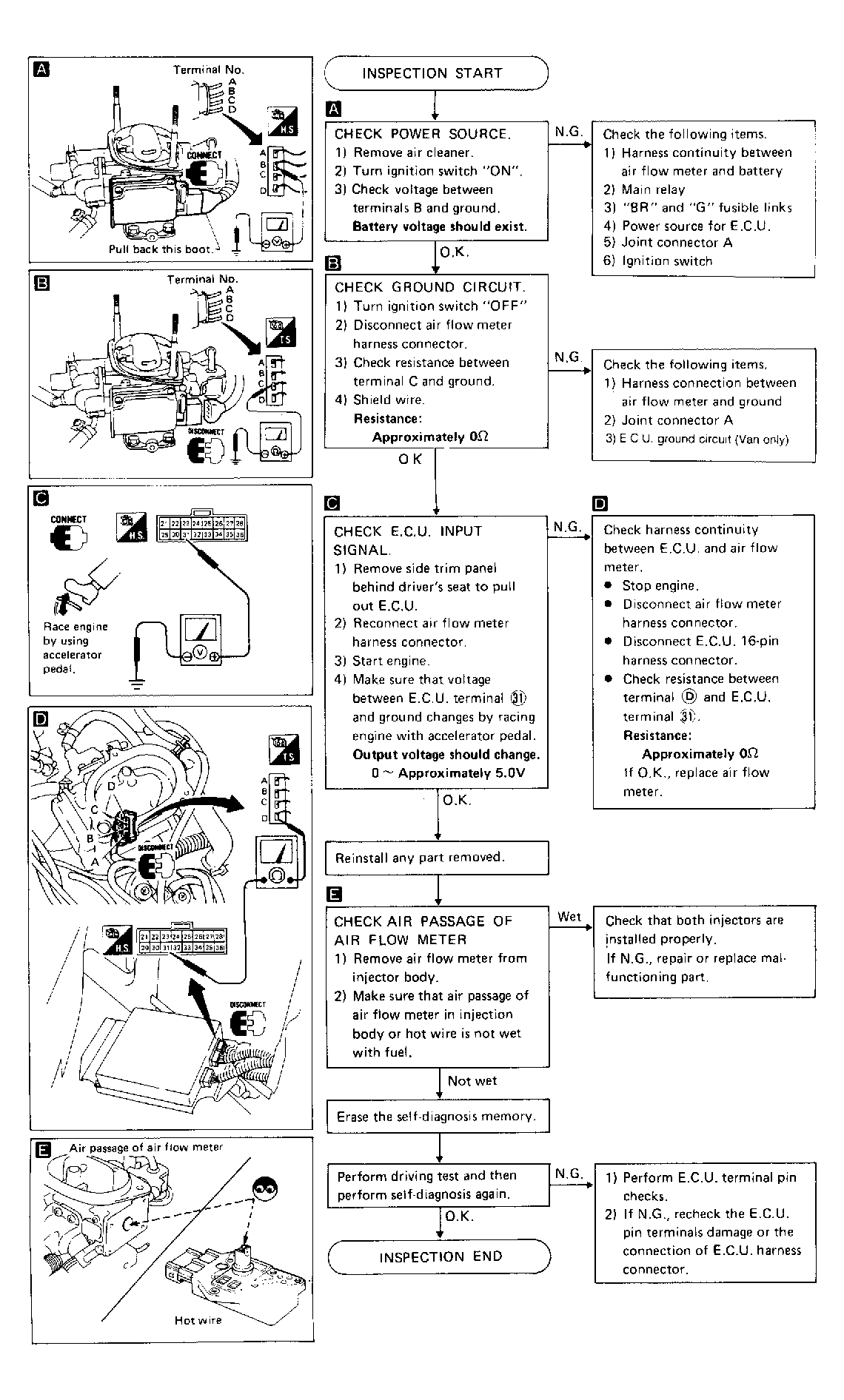

Fig 6: Test C, Van

G61666
