Home >> Nissan-Datsun >> 1987 >> Sentra Base >> Repair and Diagnosis >> Engine Performance >> System >> ECC CEC System >> Diagnostic Code Charts >> Code 13, Coolant Temperature Sensor

Code 13, Coolant Temperature Sensor

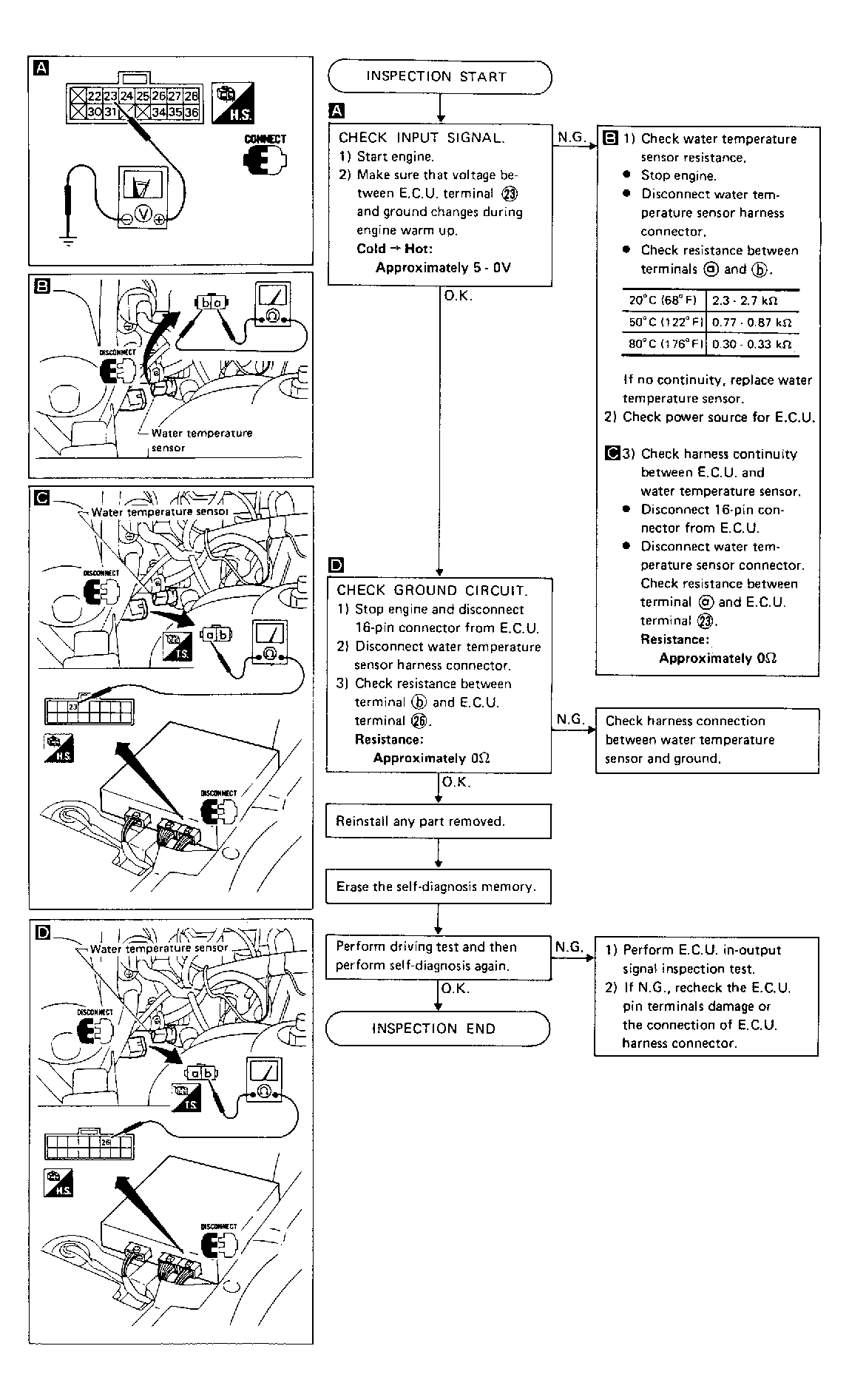

Fig 1: Test C, Pulsar Nx & Sentra (E16i)

G61669

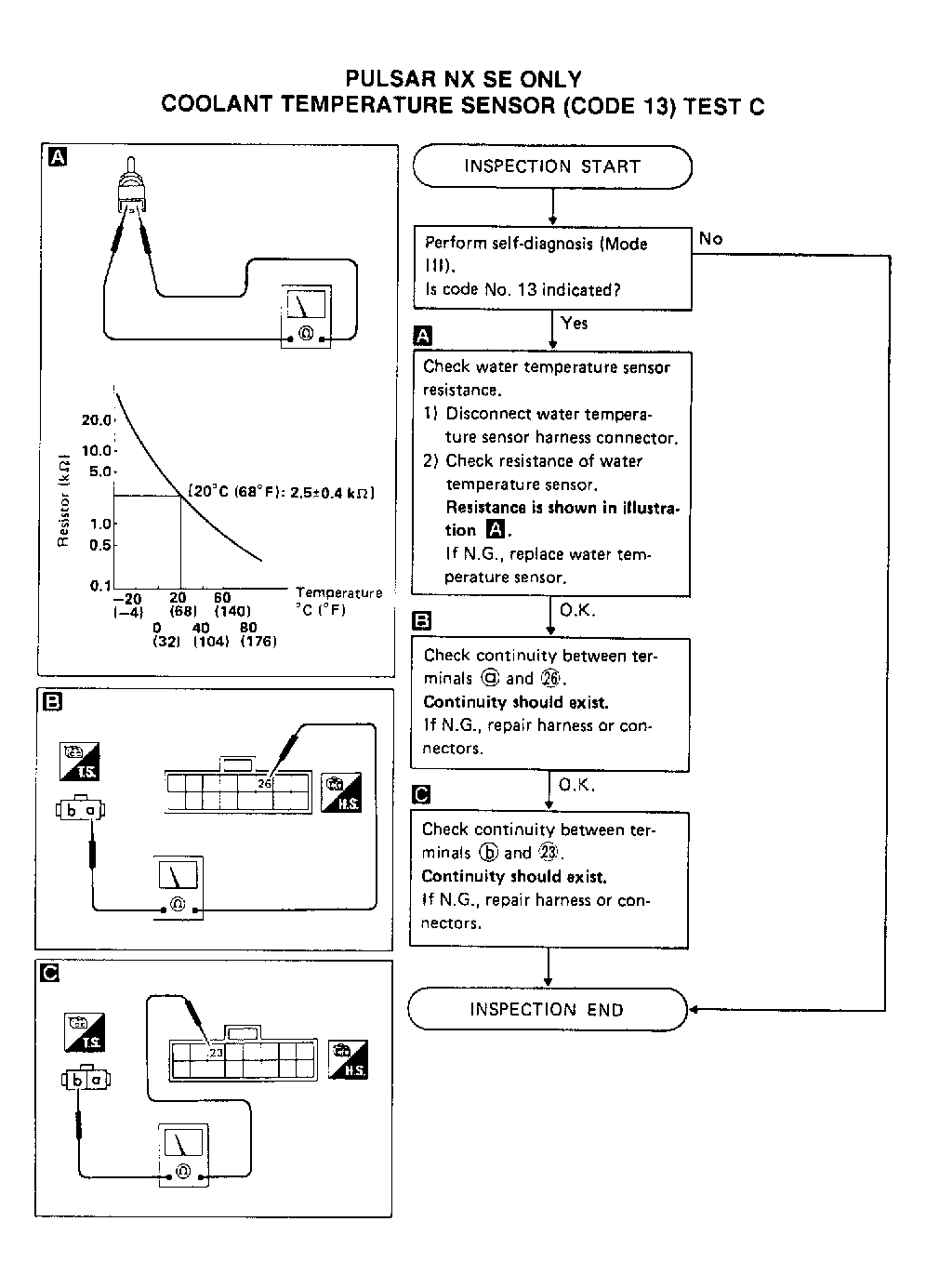

Fig 2: Test C, Pulsar NX SE

G61670

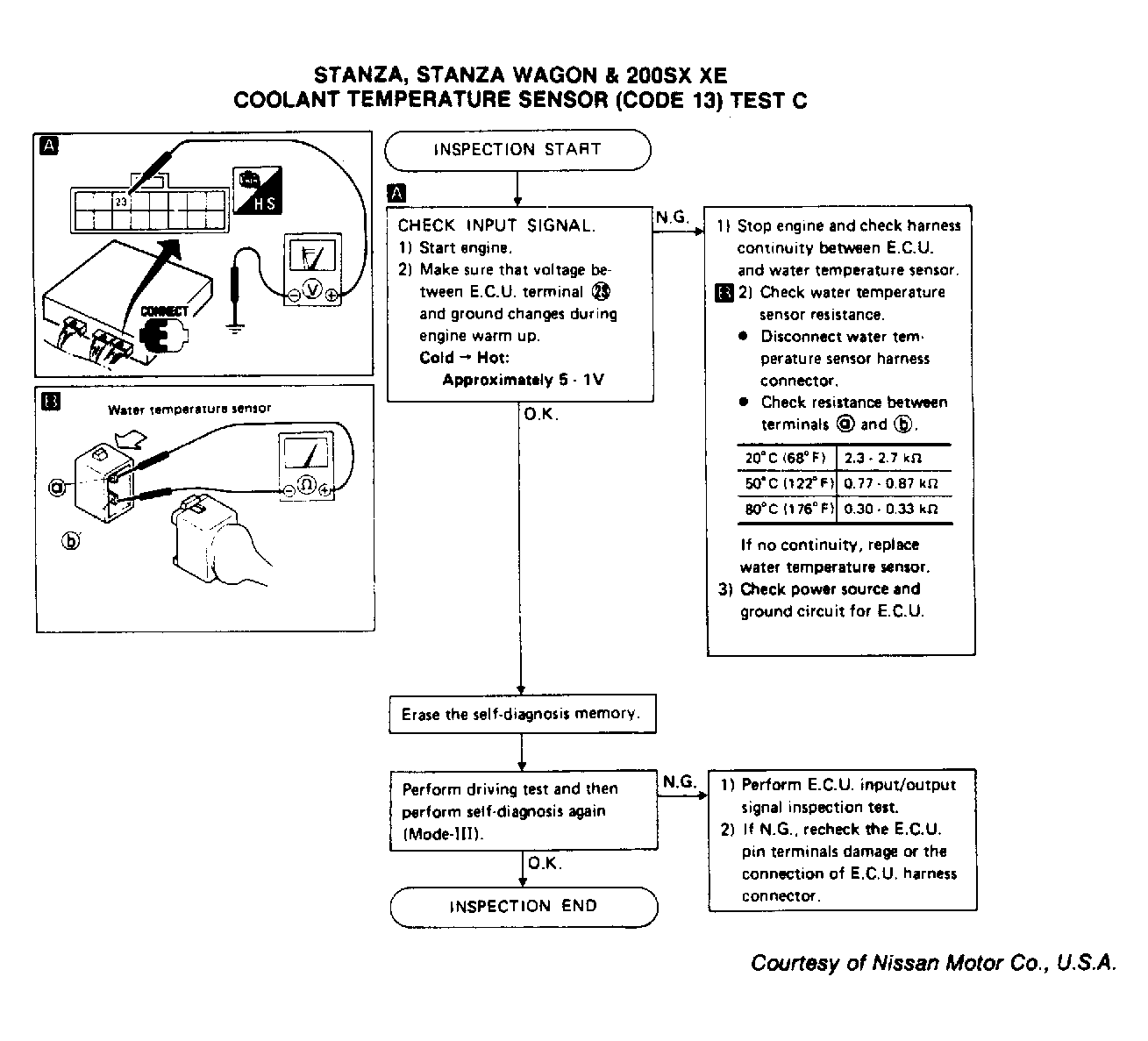

Fig 3: Test C, Stanza, Stanza Wagon & 200 SX XE

G61671
