Home >> Nissan-Datsun >> 1987 >> Sentra Base >> Repair and Diagnosis >> Engine Performance >> System >> ECC CEC System >> Diagnostic Code Charts >> Code 42, Throttle Sensor

Code 42, Throttle Sensor

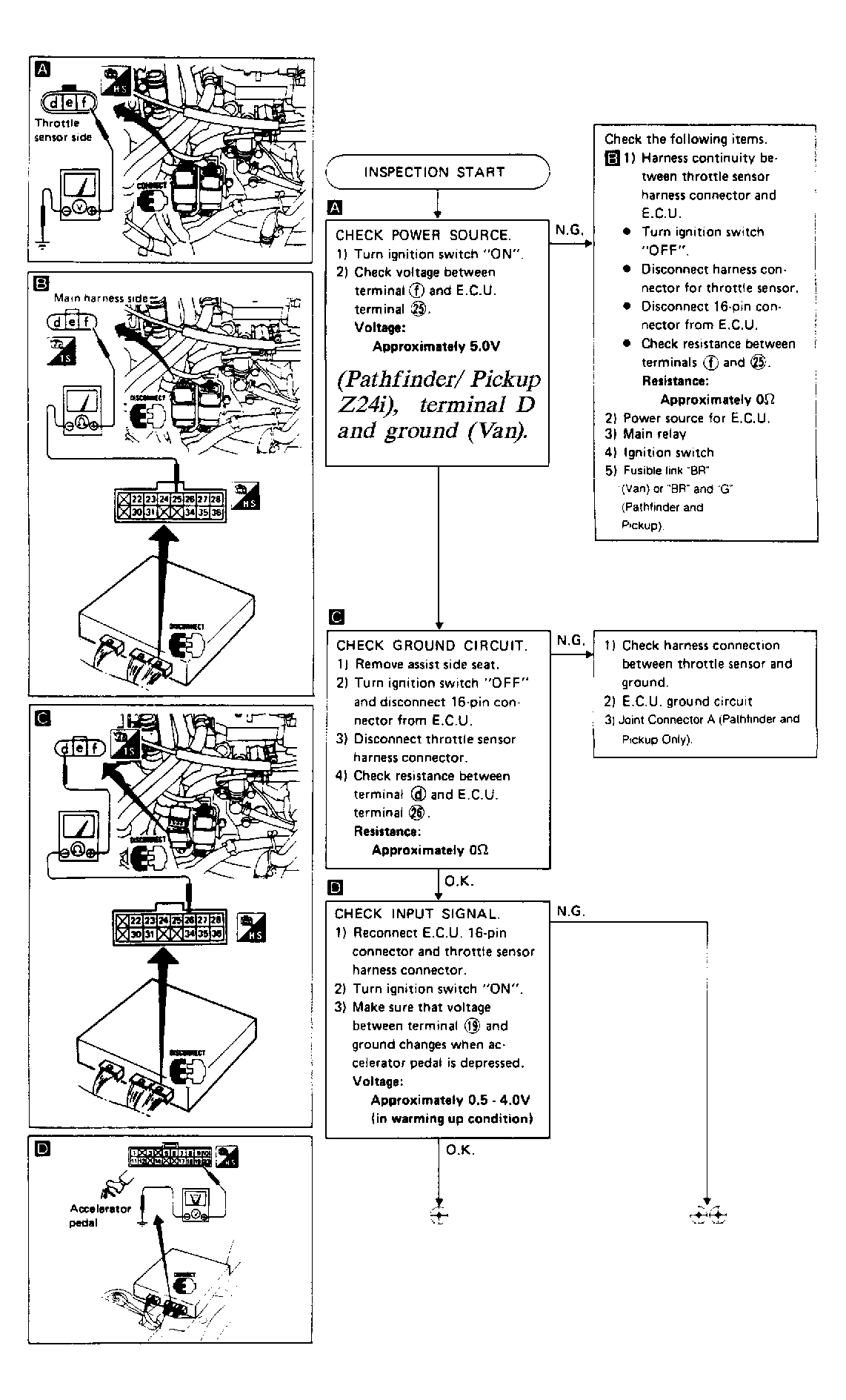

Fig 1: Test F, Throttle Sensor (1 of 2)

G61688

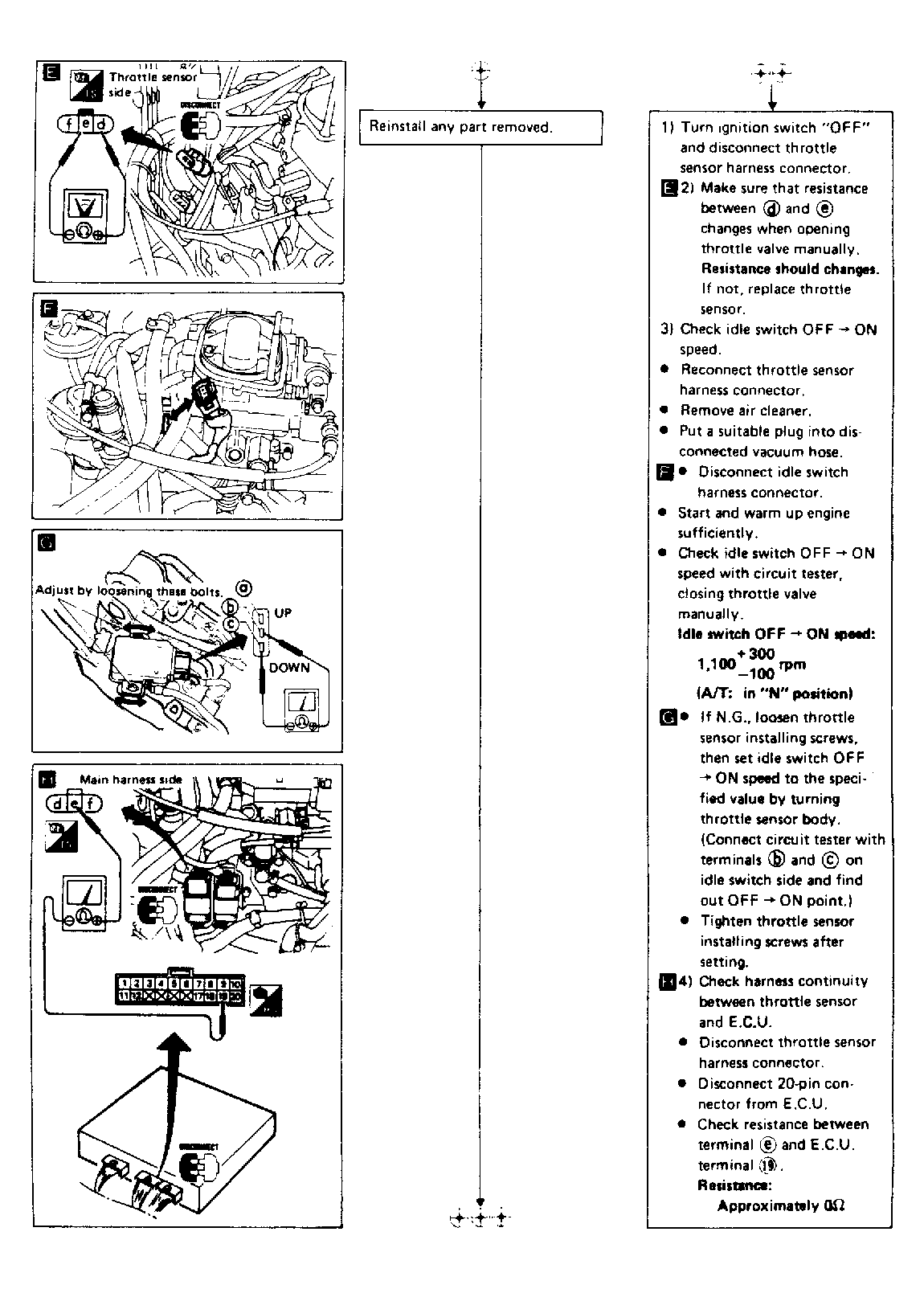

Fig 2: Test F, Throttle Sensor (2 of 2)

G61689
