EGR Control

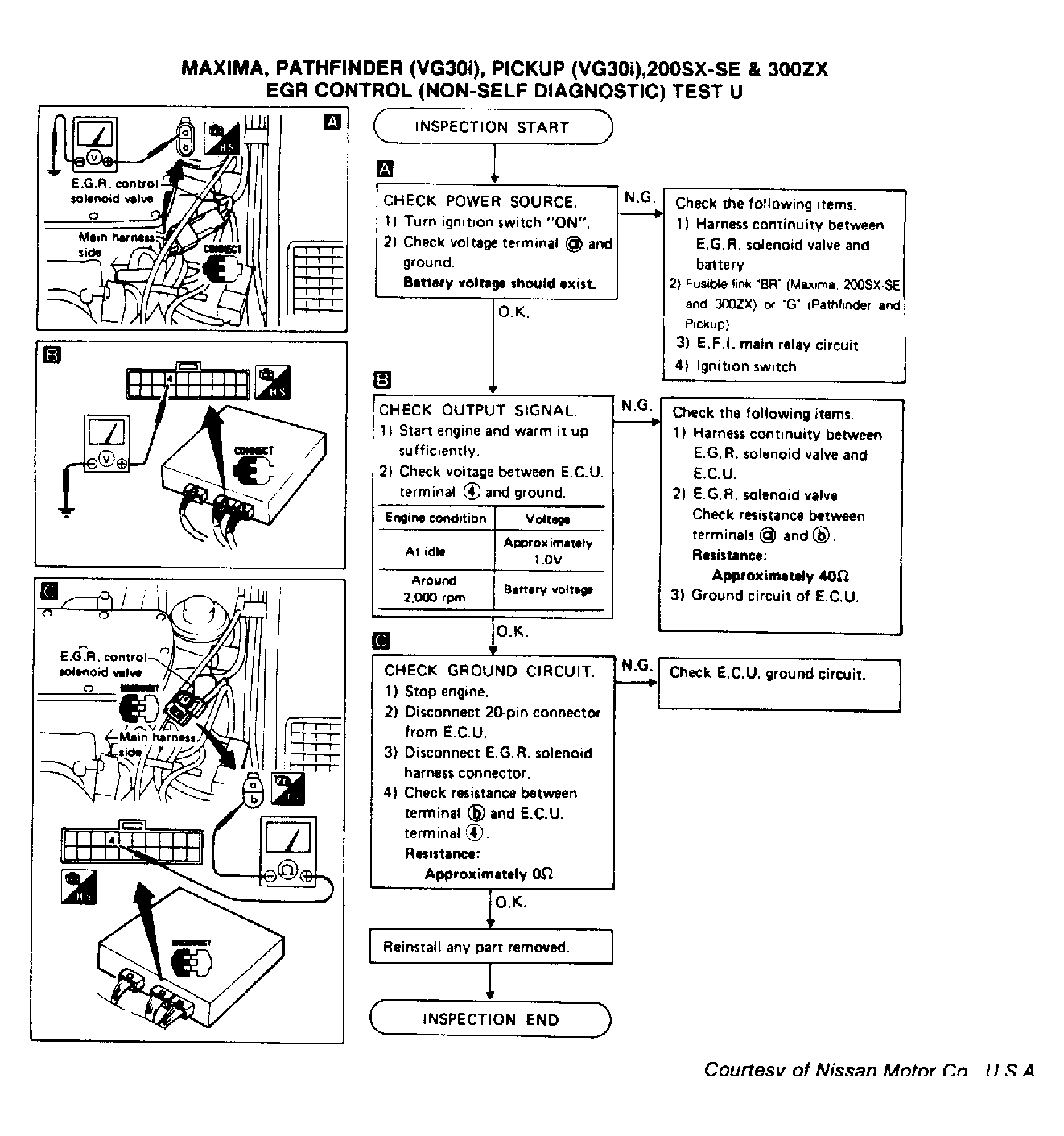

Fig 1: Test U, Maxima, 200SX-SE & 300ZX

G61761

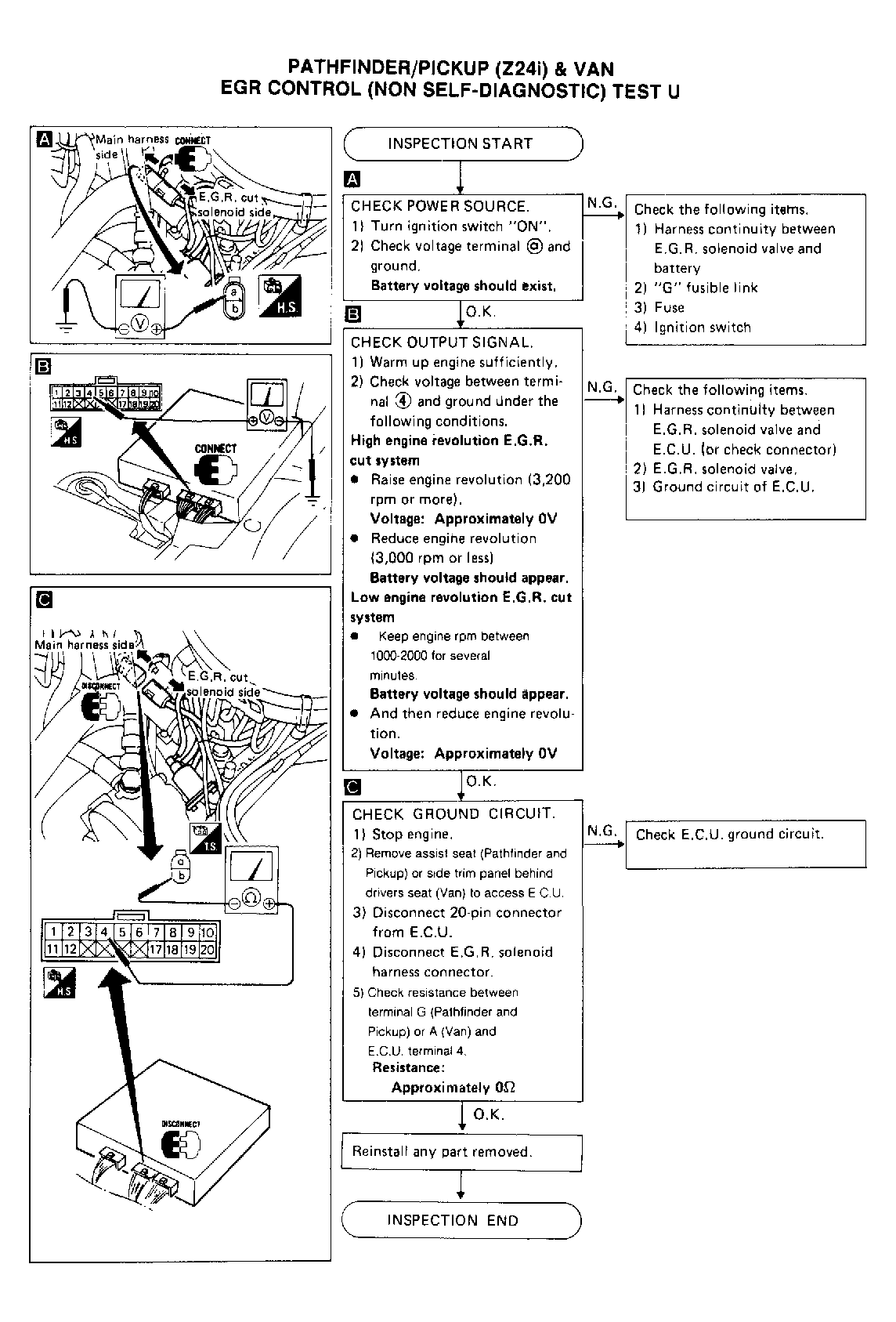

Fig 2: Test U, Van

G61762

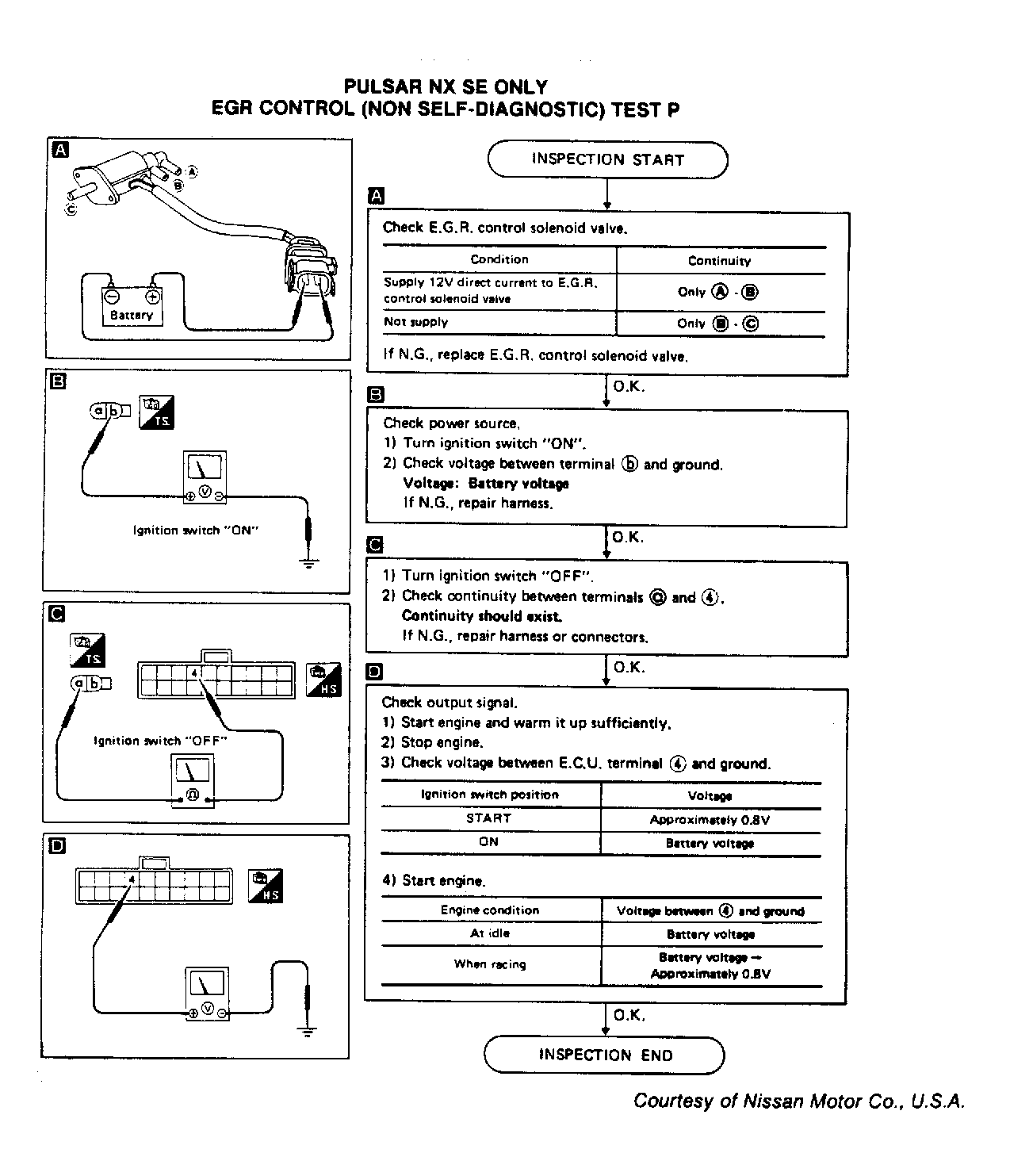

Fig 3: Test P, Pulsar NX SE

G61738

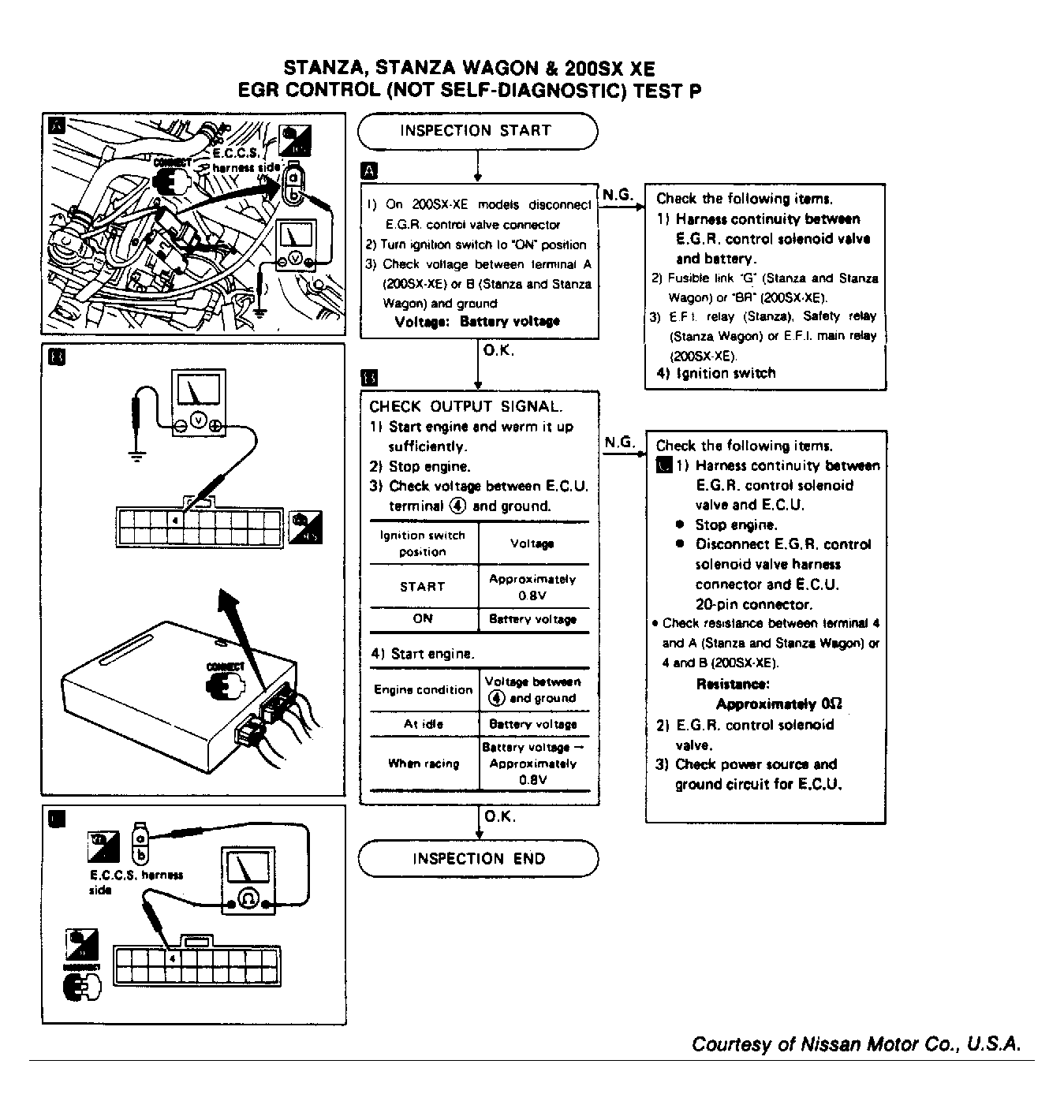

Fig 4: Test P, Stanza, Stanza Wagon & 200SX XE

G61739
