Home >> Nissan-Datsun >> 1987 >> Sentra Base >> Repair and Diagnosis >> Engine Performance >> System >> ECC CEC System >> Non Self-Diagnostic Component Testing Charts >> Power Control Valve

Power Control Valve

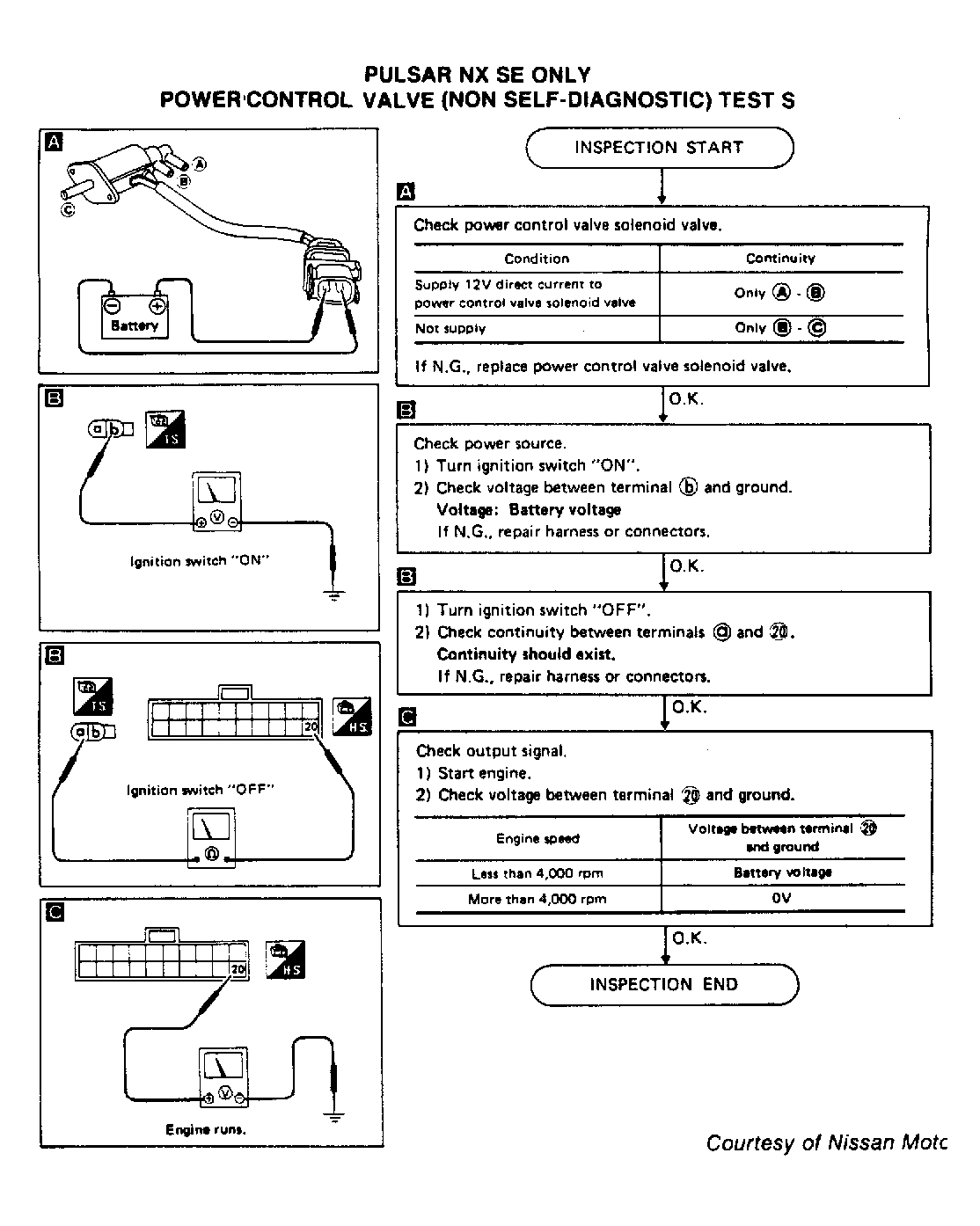

Fig 1: Test S, Pulsar NX SE
G61753
