Wiring Diagrams

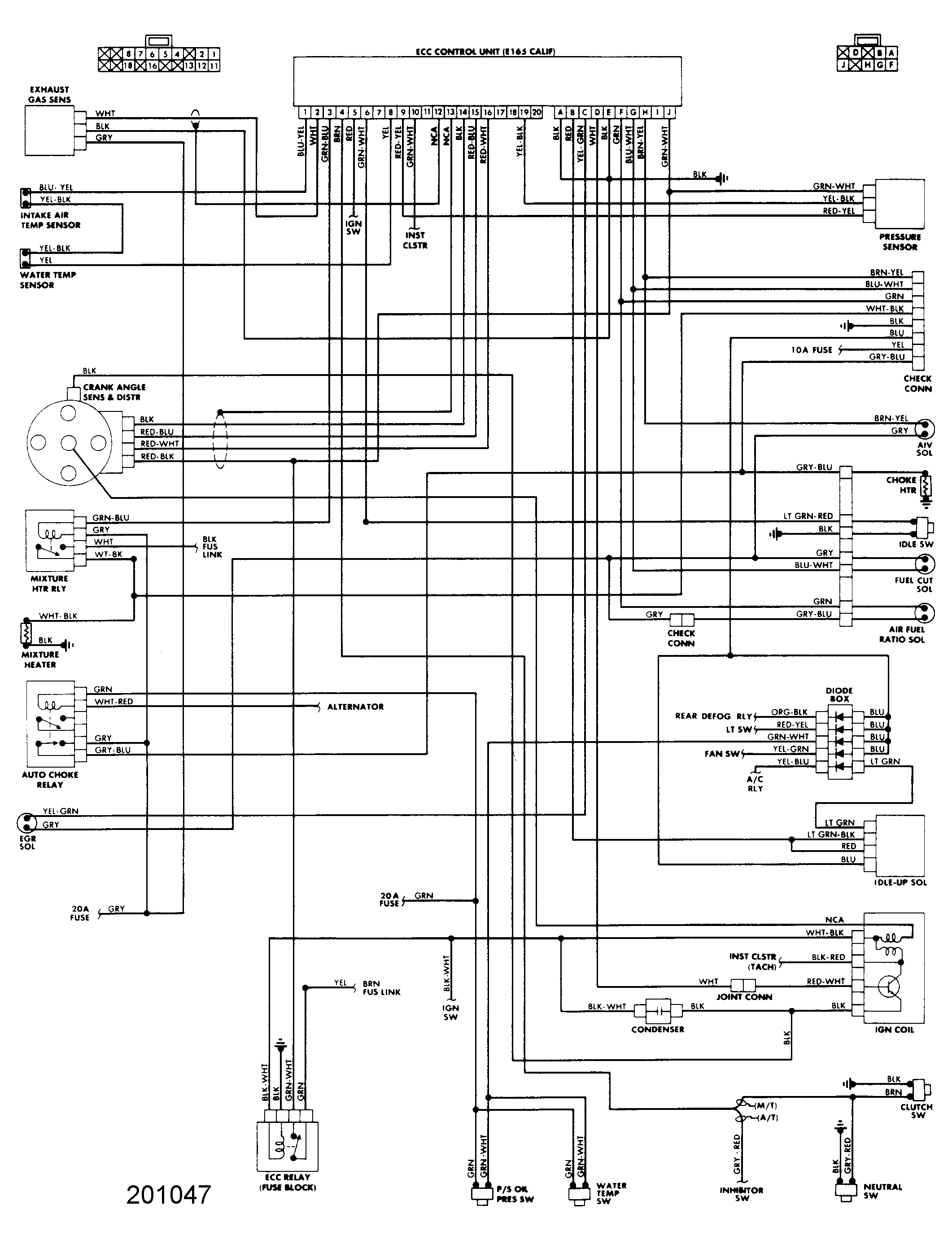

Fig 1: Wiring Diagrams For California Sentra

G201047

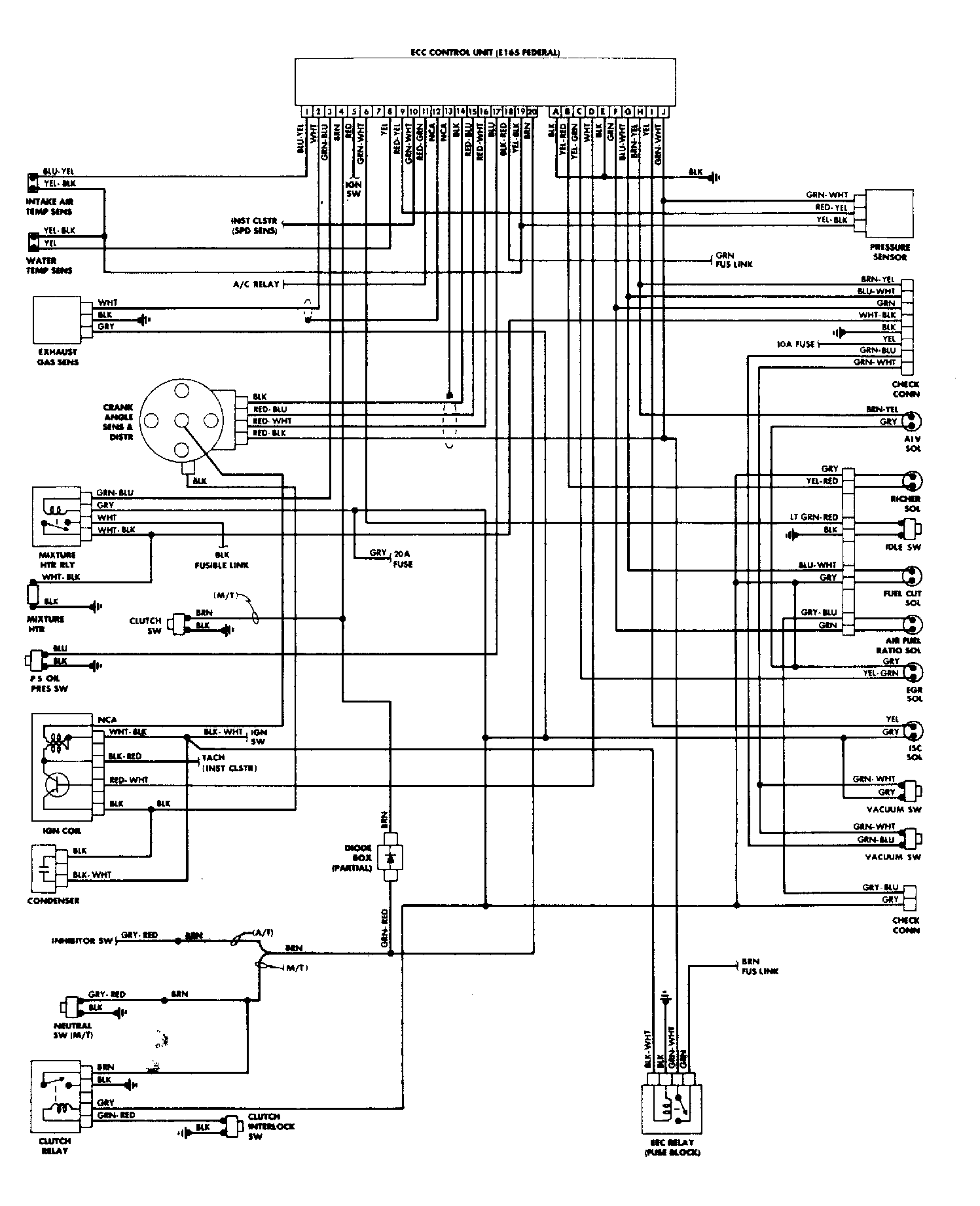

Fig 2: Wiring Diagrams For Federal Sentra

G61621
