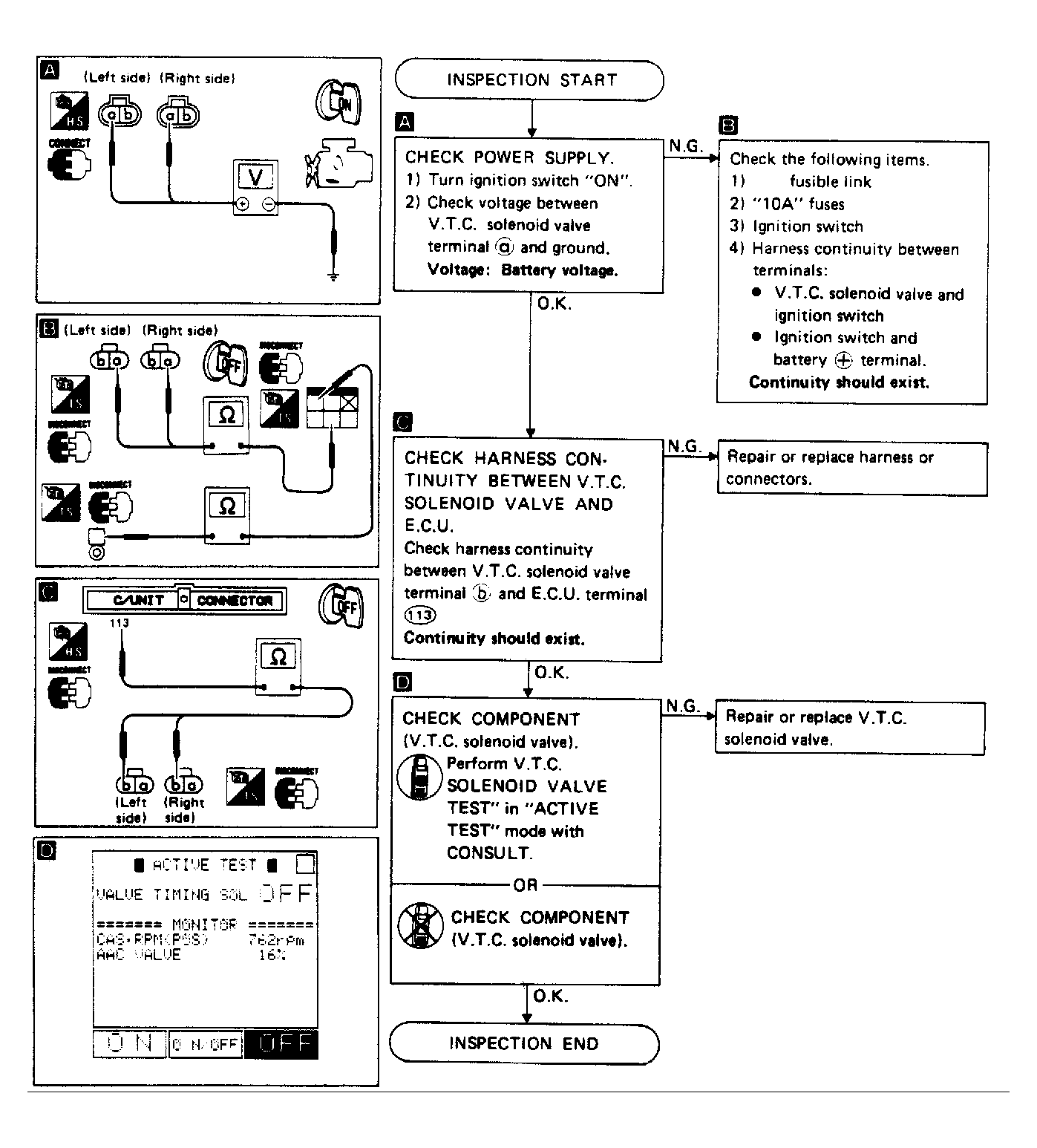

Home >> Nissan-Datsun >> 1990 >> 300ZX Base, Automatic >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls - System/Component Tests >> Diagnostic Charts >> Valve Timing Control Chart
