Code 11: Crank Angle Sensor

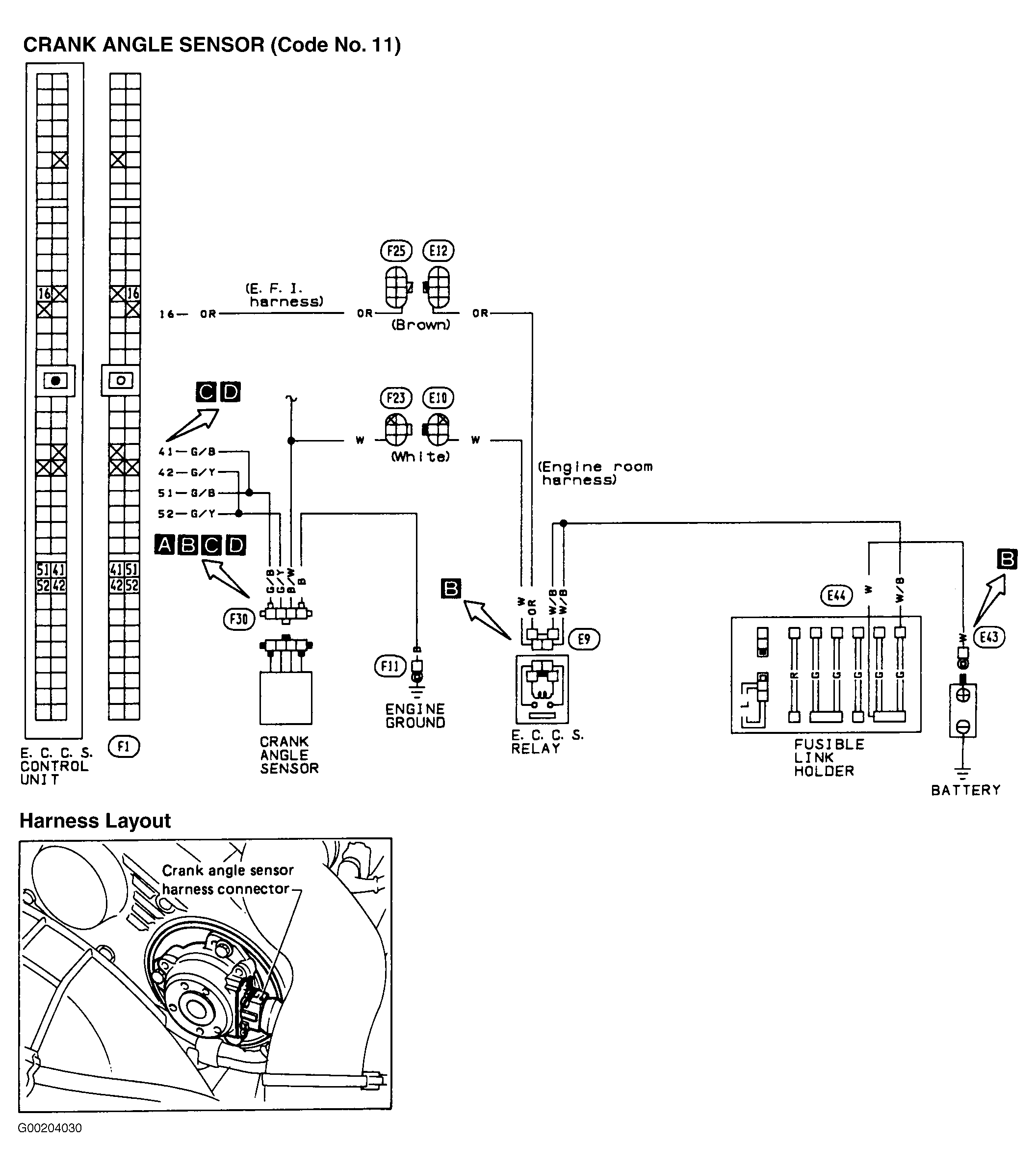

Fig 1: Code 11: Crank Angle Sensor Test (1 of 2)

G00204030

Courtesy of NISSAN MOTOR CO., U.S.A.

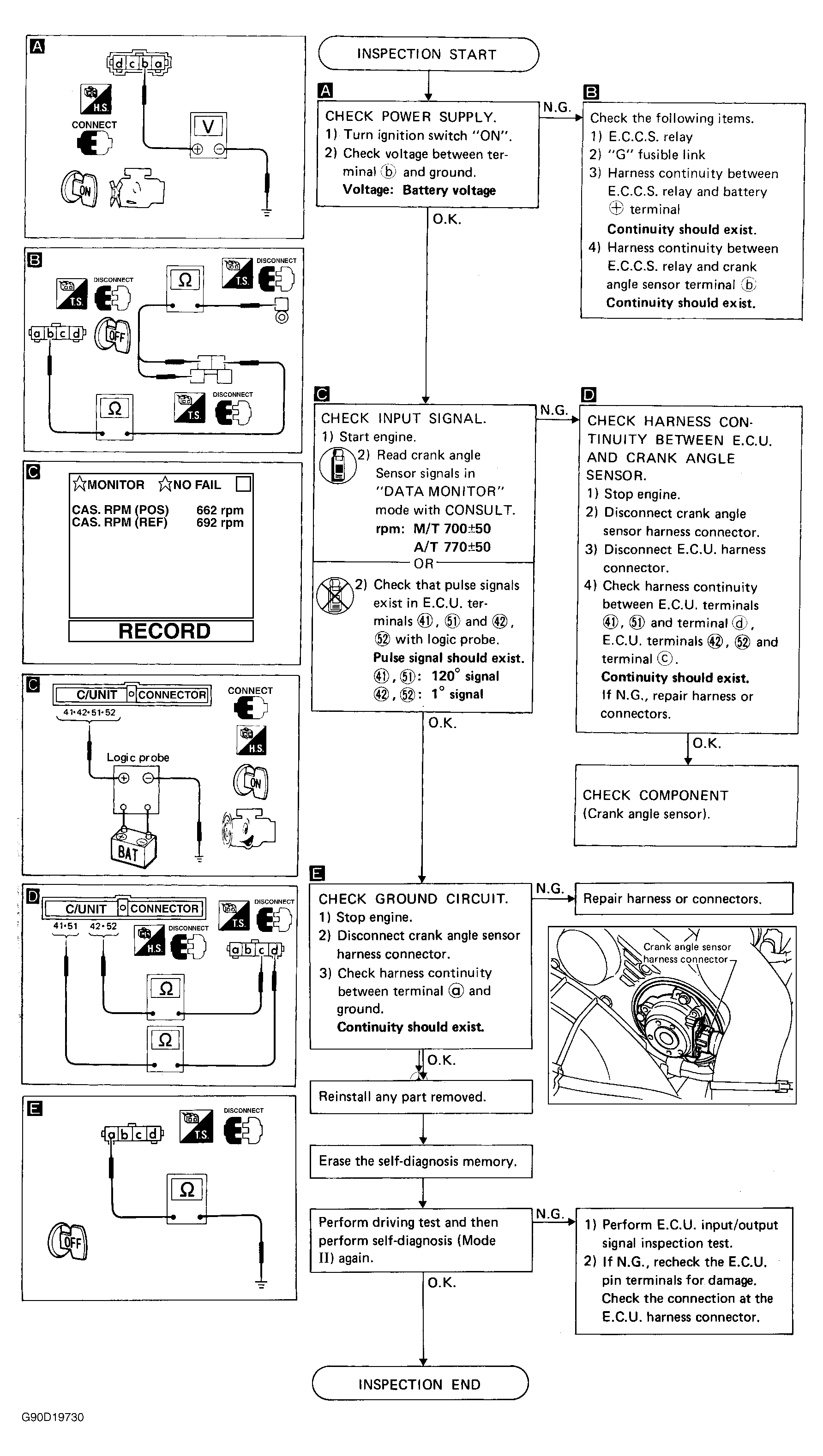

Fig 2: Code 11: Crank Angle Sensor Test (2 of 2)

G90D19730

Courtesy of NISSAN MOTOR CO., U.S.A.
