Code 12: Mass Airflow Sensor
Code 12: Mass Airflow Sensor

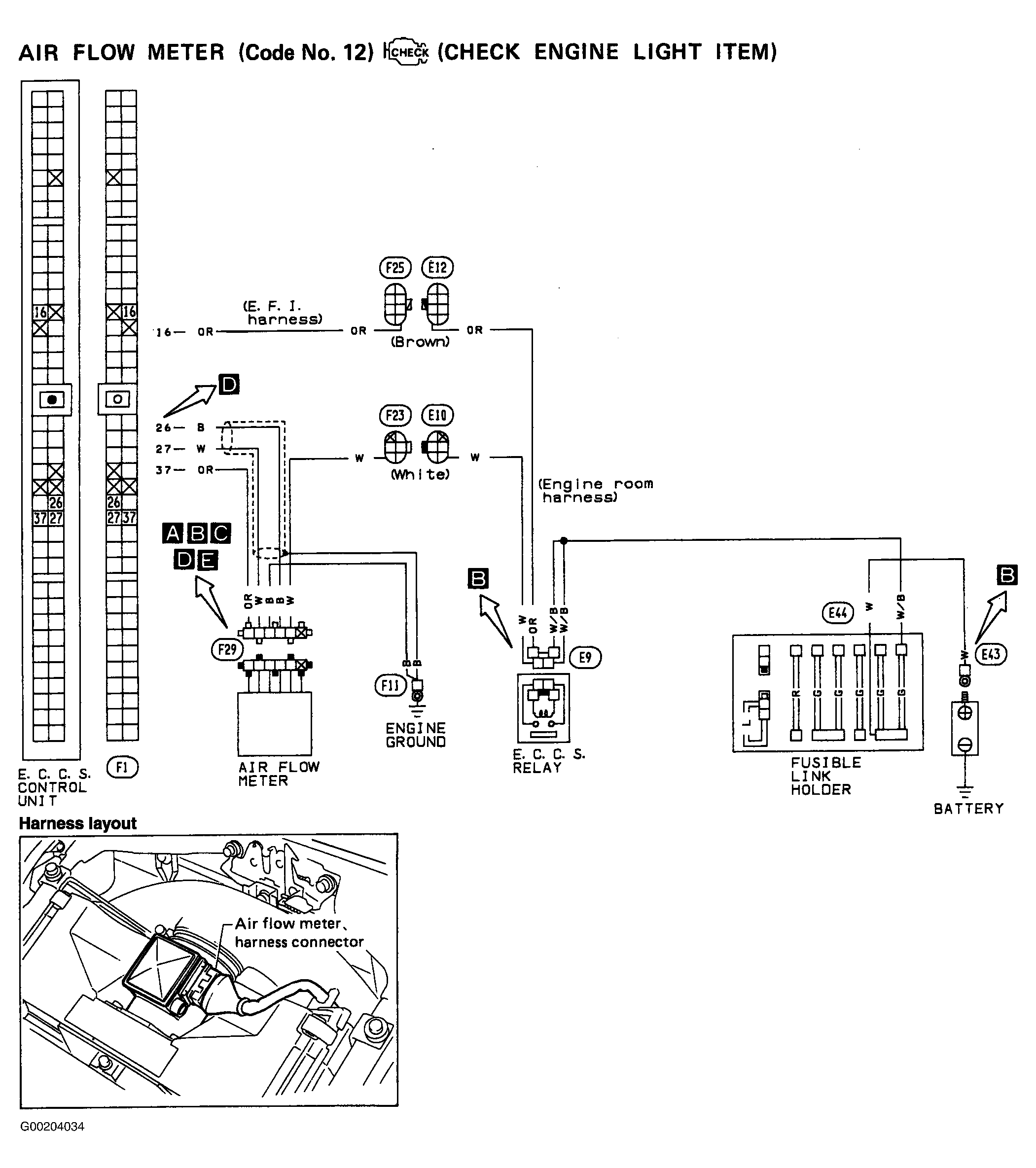

Fig 1: Code 12: Mass Air Flow Sensor Test (1 of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

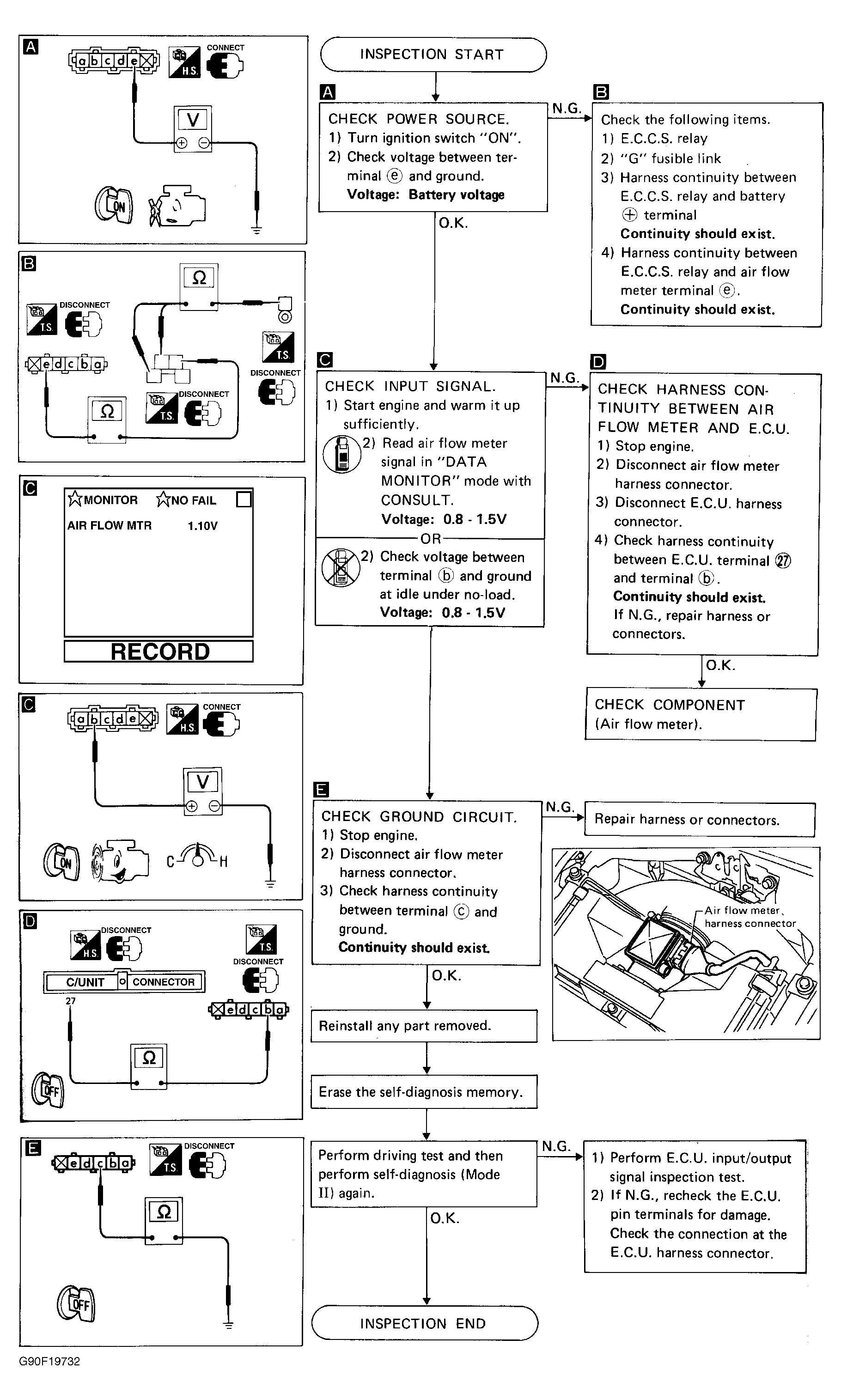

Fig 2: Code 12: Mass Airflow Sensor Test (2 of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
