Home >> Nissan-Datsun >> 1990 >> 300ZX Base, Automatic >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls - Tests W/Codes >> Code Charts >> Code 43: Throttle Position Sensor

Code 43: Throttle Position Sensor

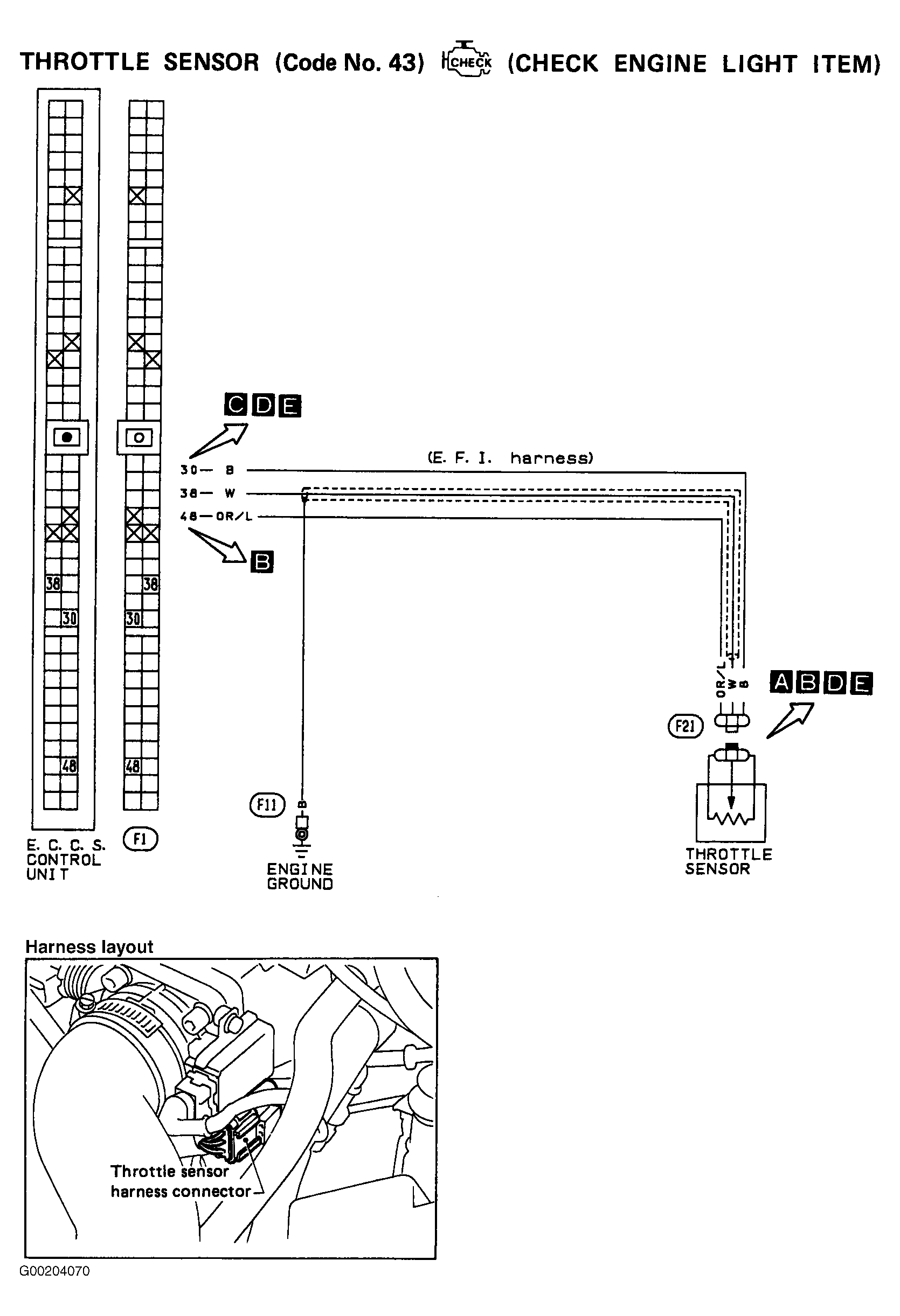

Fig 1: Code 43: Throttle Position Sensor Test (1 of 2)
G00204070Courtesy of NISSAN MOTOR CO., U.S.A.

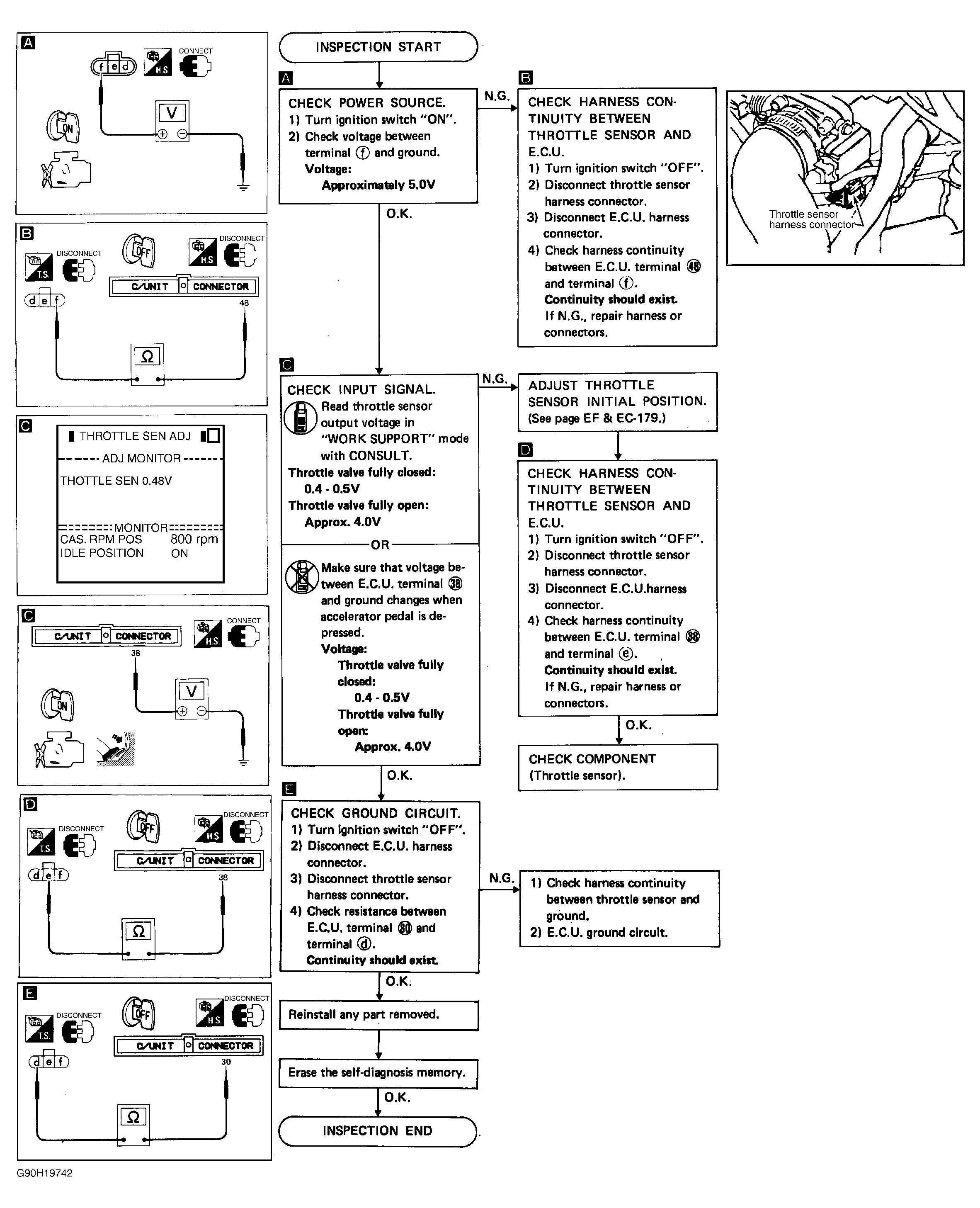

Fig 2: Code 43: Throttle Position Sensor Test (2 of 2)
G90H19742Courtesy of NISSAN MOTOR CO., U.S.A.
