Code 45: Injection Leak

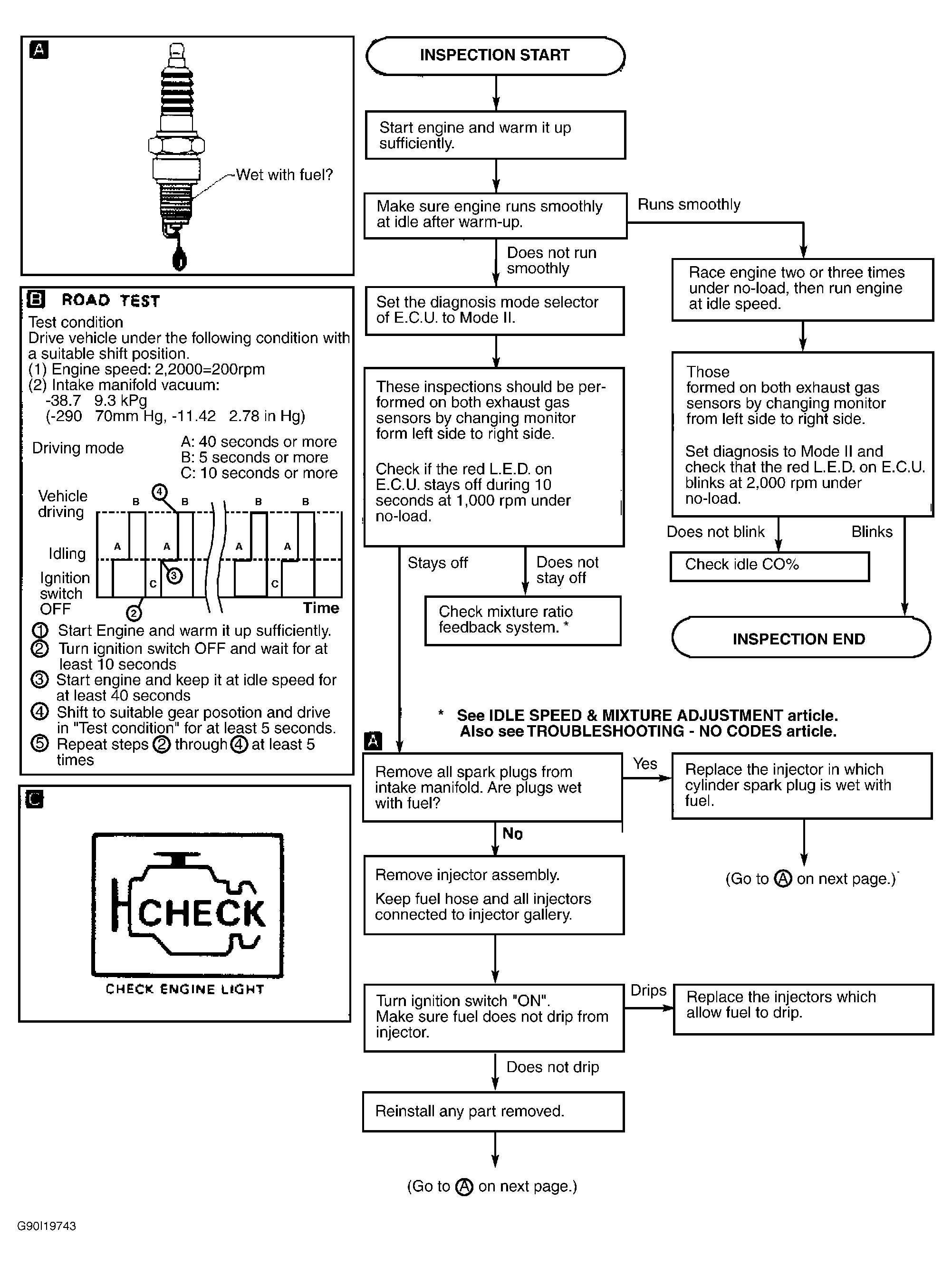

Fig 1: Code 45: Injection Leak Test (1 of 2)

G90I19743

Courtesy of NISSAN MOTOR CO., U.S.A.

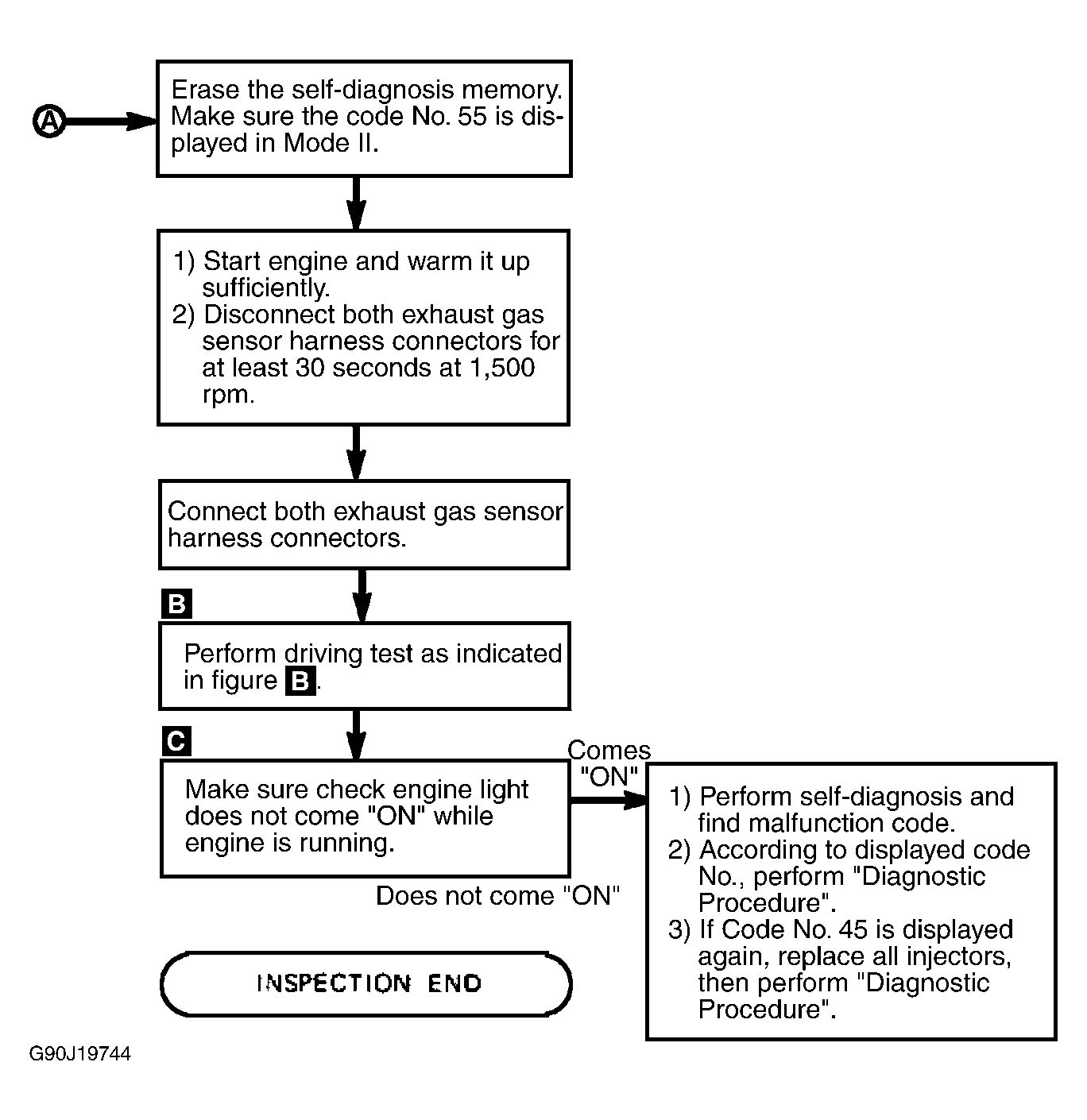

Fig 2: Code 45: Injection Leak Test (2 of 2)

G90J19744

Courtesy of NISSAN MOTOR CO., U.S.A.
