Code 32: EGR Sensor (CALIF.)

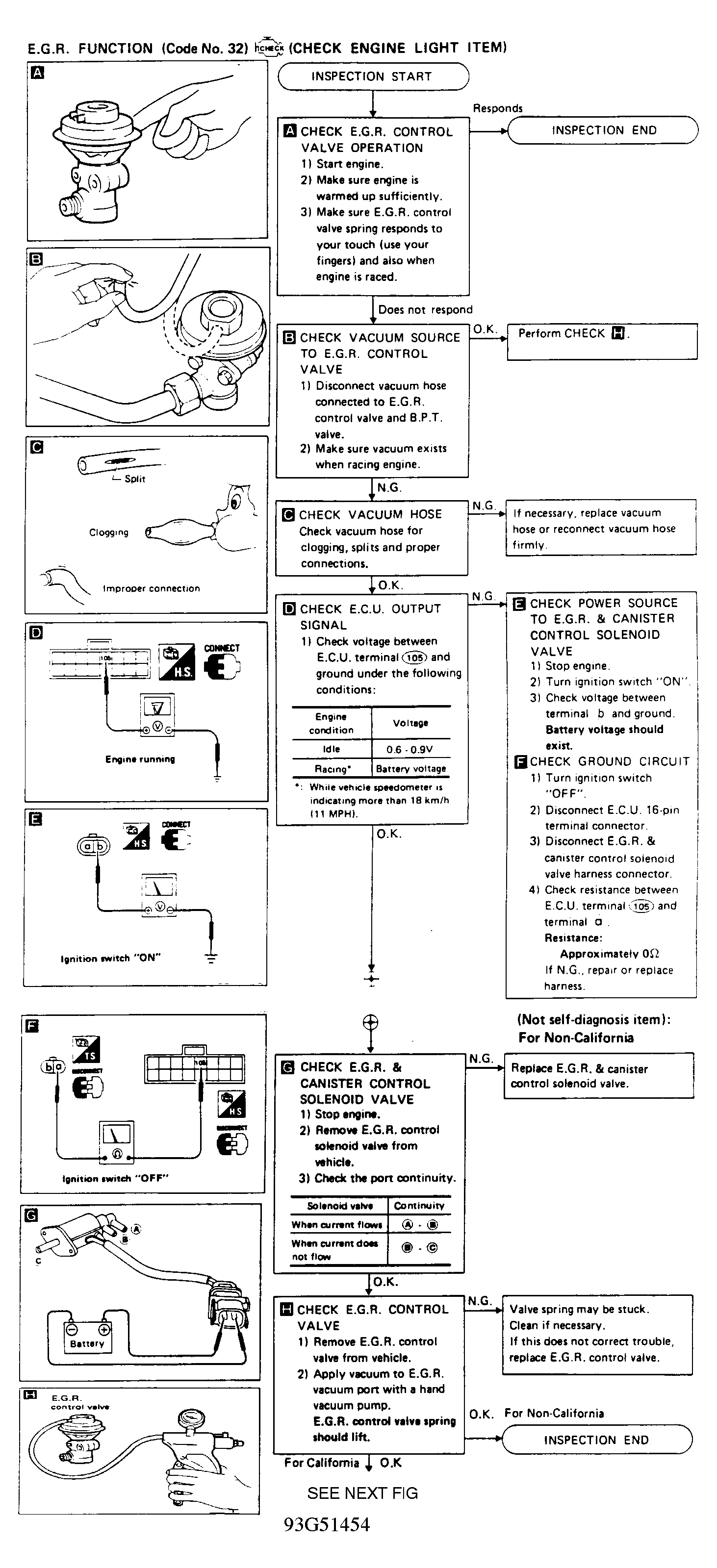

Fig 1: Code 32: EGR Sensor Test (1 of 2)

G93G51454

Courtesy of NISSAN MOTOR CO., U.S.A.

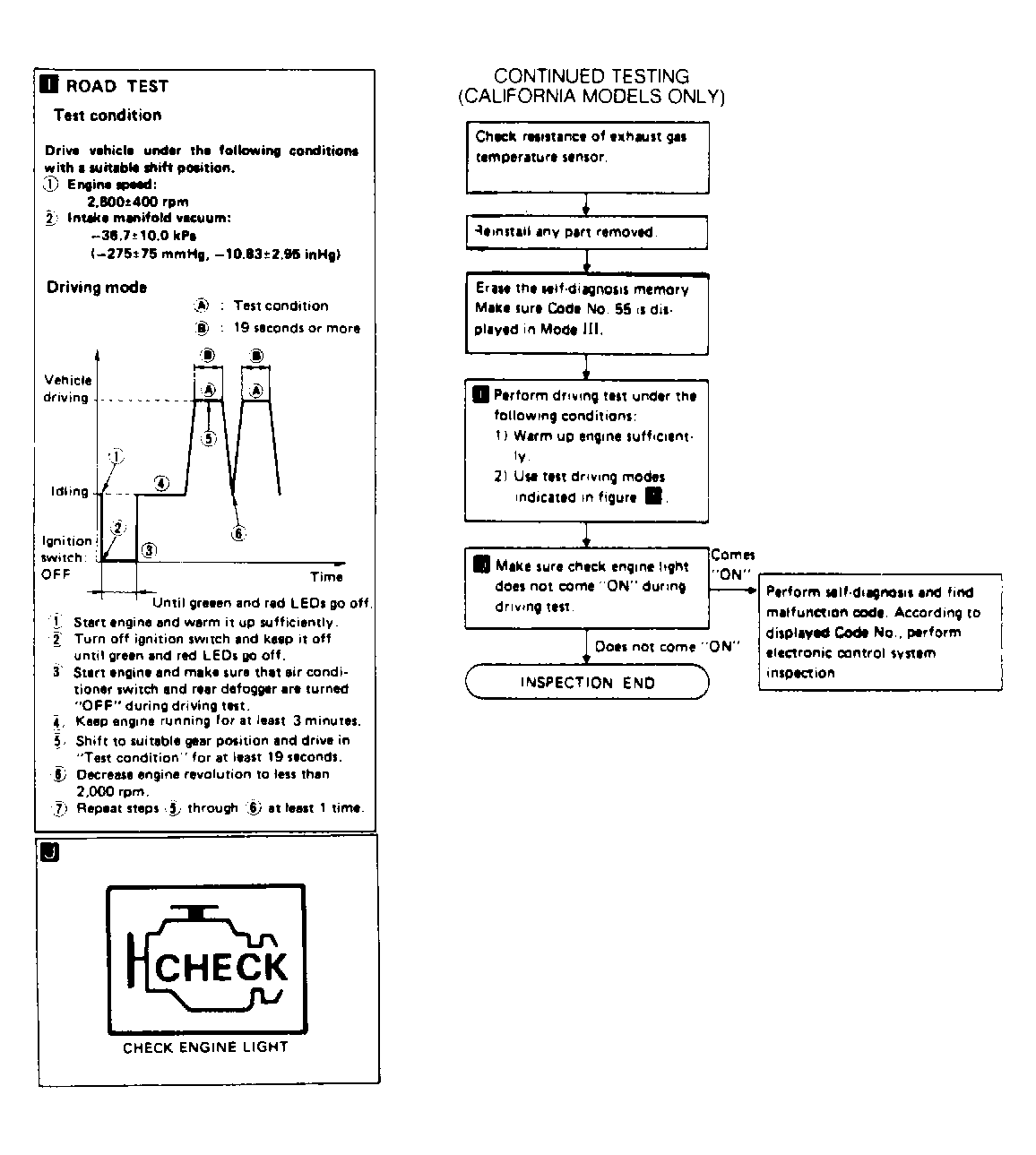

Fig 2: Code 32: EGR Sensor Test (2 of 2)

G90E19715

Courtesy of NISSAN MOTOR CO., U.S.A.
