System Testing: 240SX

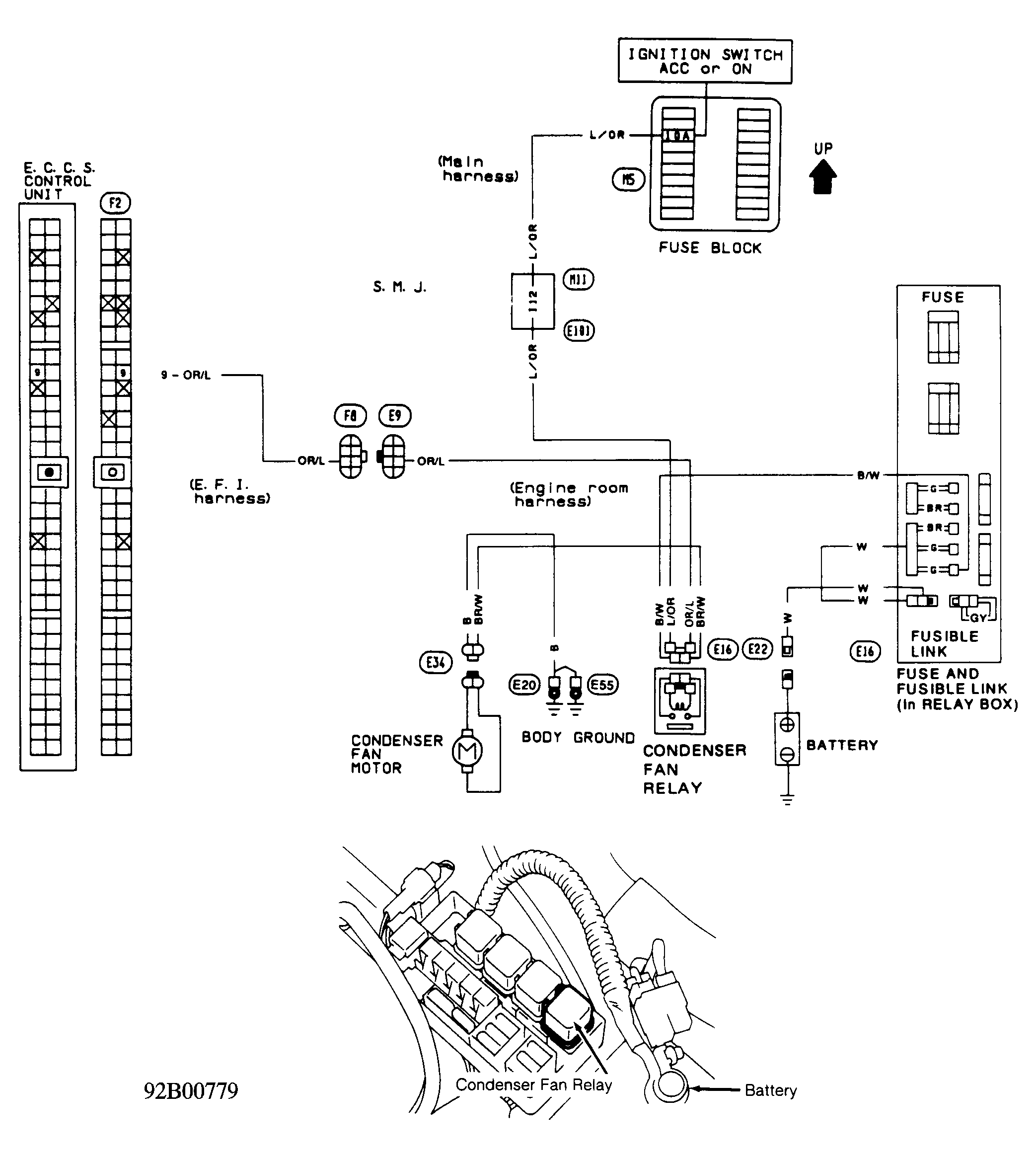

Warm engine to operating temperature. Engage A/C clutch using A/C switch in passenger compartment. Cooling fan should run. If cooling fan does not function as described, check power supplies, grounds, relay, radiator fan switch and motor. If no faults are found, check component wiring. See Figure .
