EGR Function Chart

Fig 1: EGR Function Flow Chart (1 of 4)
G90E20622Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 2: EGR Function Flow Chart (2 of 4)
G90F20623Courtesy of NISSAN MOTOR CO., U.S.A.

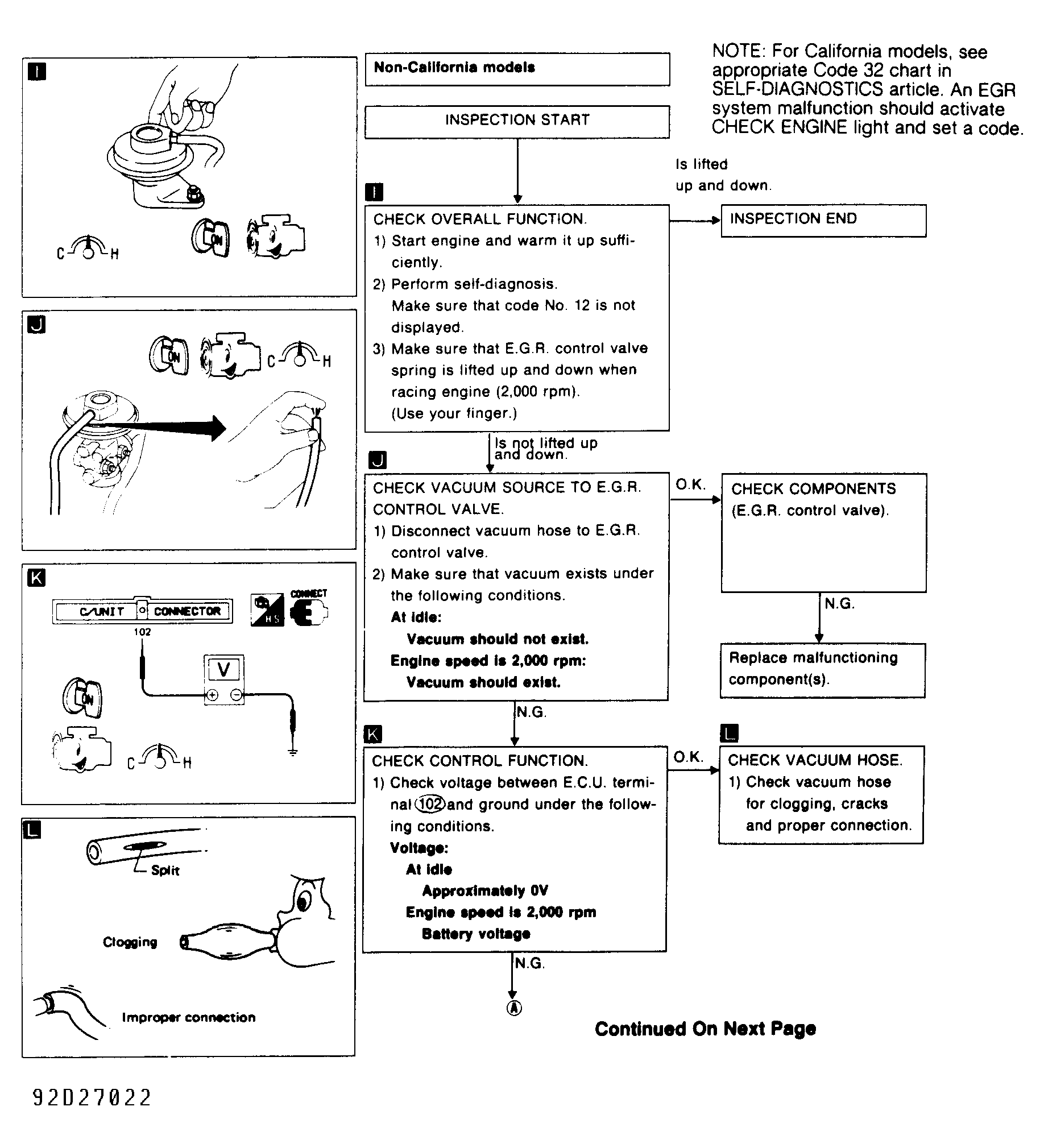

Fig 3: EGR Function Flow Chart Maxima SE (3 of 4)
G92D27022Courtesy of NISSAN MOTOR CO., U.S.A.

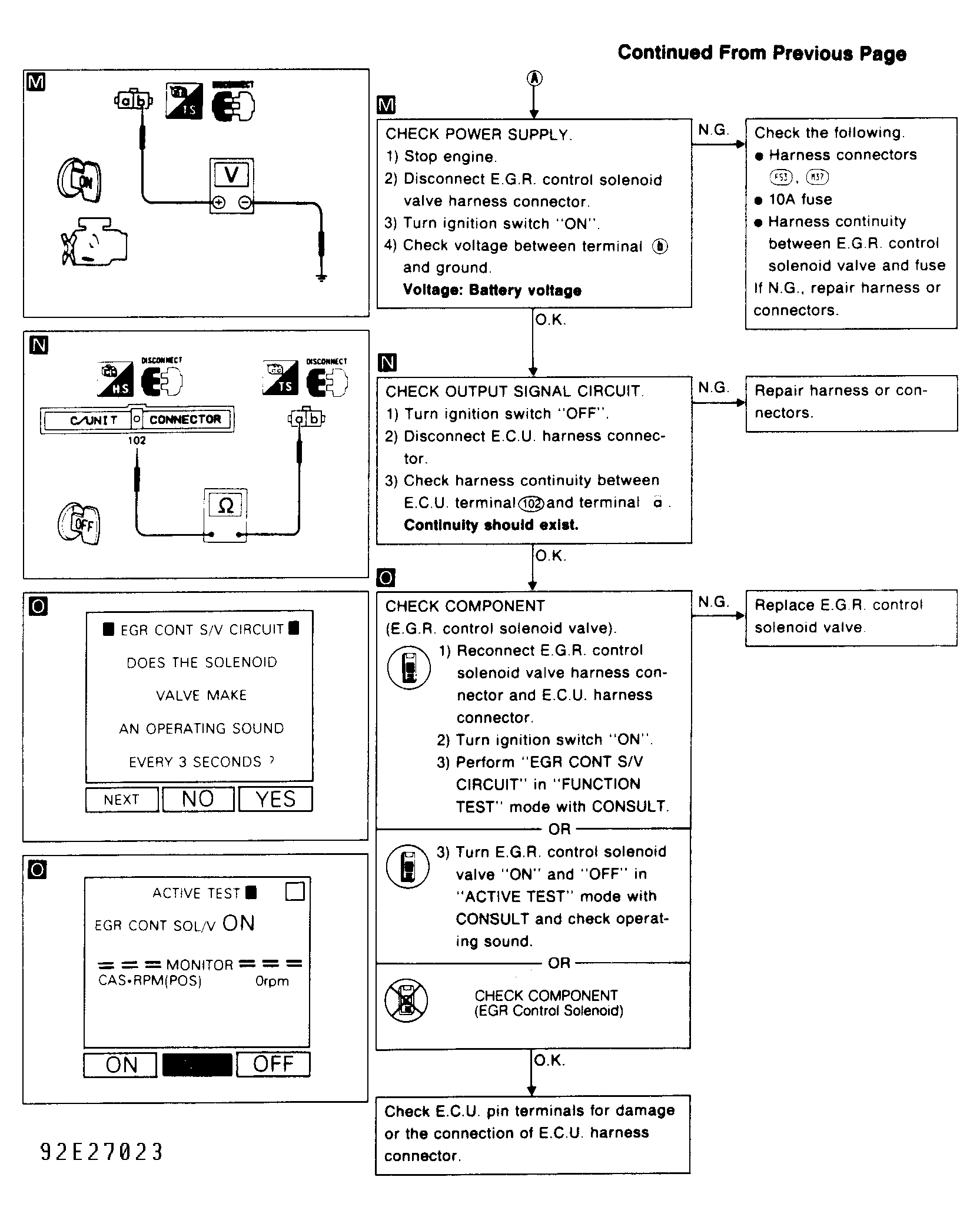

Fig 4: EGR Function Flow Chart Maxima SE (4 of 4)
G92E27023Courtesy of NISSAN MOTOR CO., U.S.A.
