Home >> Nissan-Datsun >> 1992 >> Sentra SE-R >> Repair and Diagnosis >> Brakes >> Traction Control >> Anti-Lock Brake System >> Self-Diagnostic Charts >> Code 9

Code 9

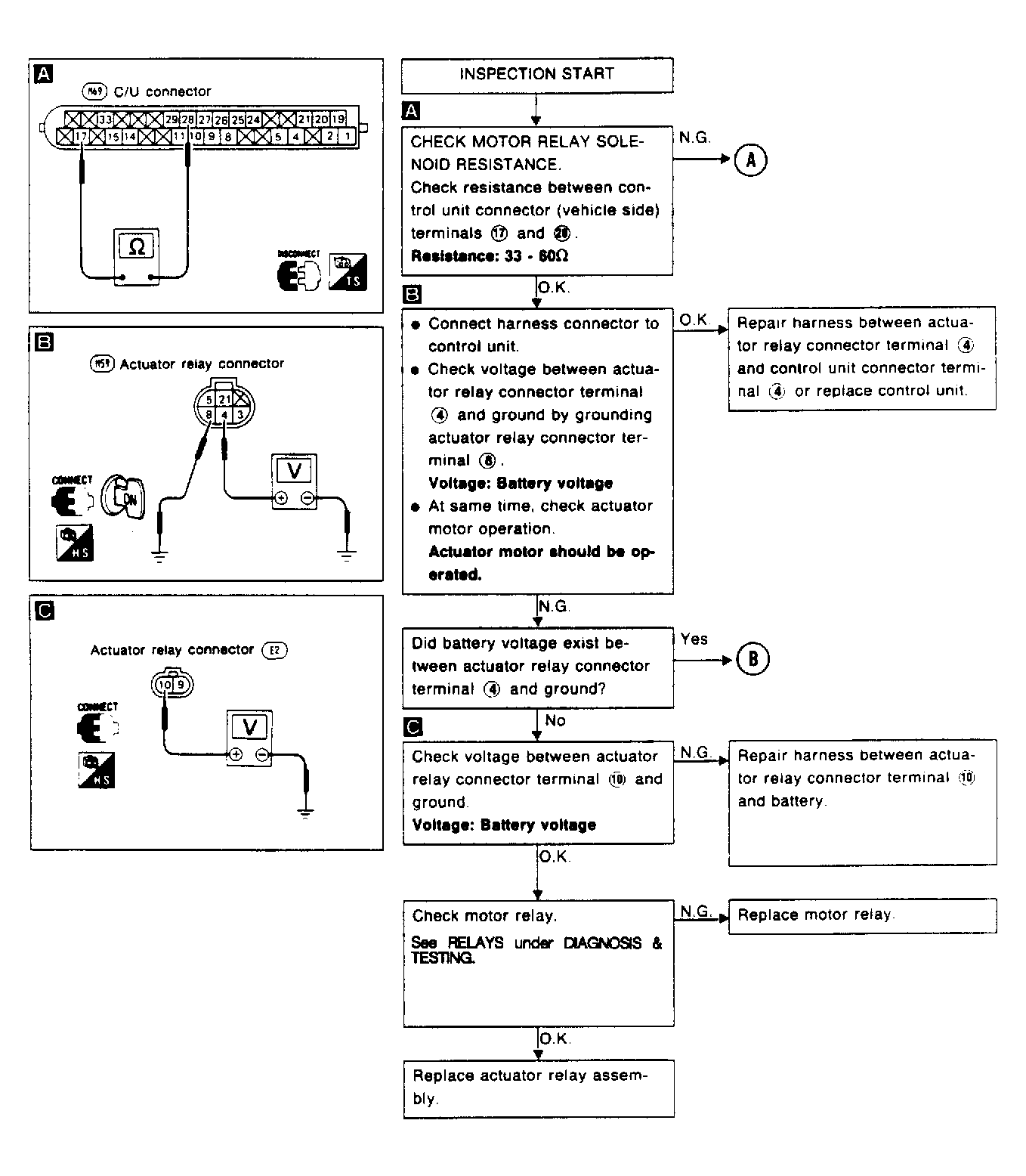

Fig 1: Code No. 9 (1 Of 2)

G92J01320

Courtesy of NISSAN MOTOR CO., U.S.A.

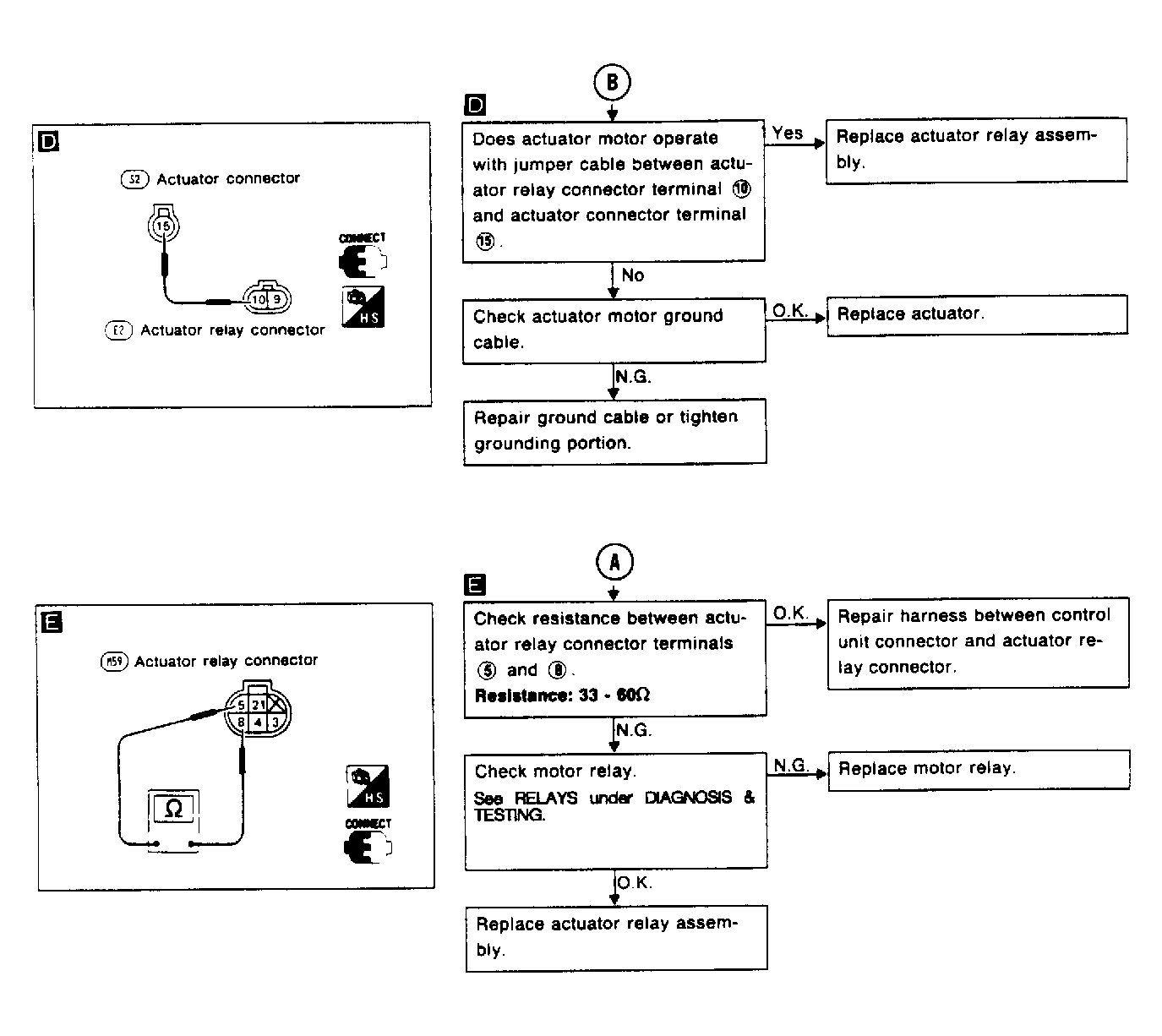

Fig 2: Code No. 9 (2 Of 2)

G92B01321

Courtesy of NISSAN MOTOR CO., U.S.A.
