Anti-Lock Brake System: Wiring Diagram

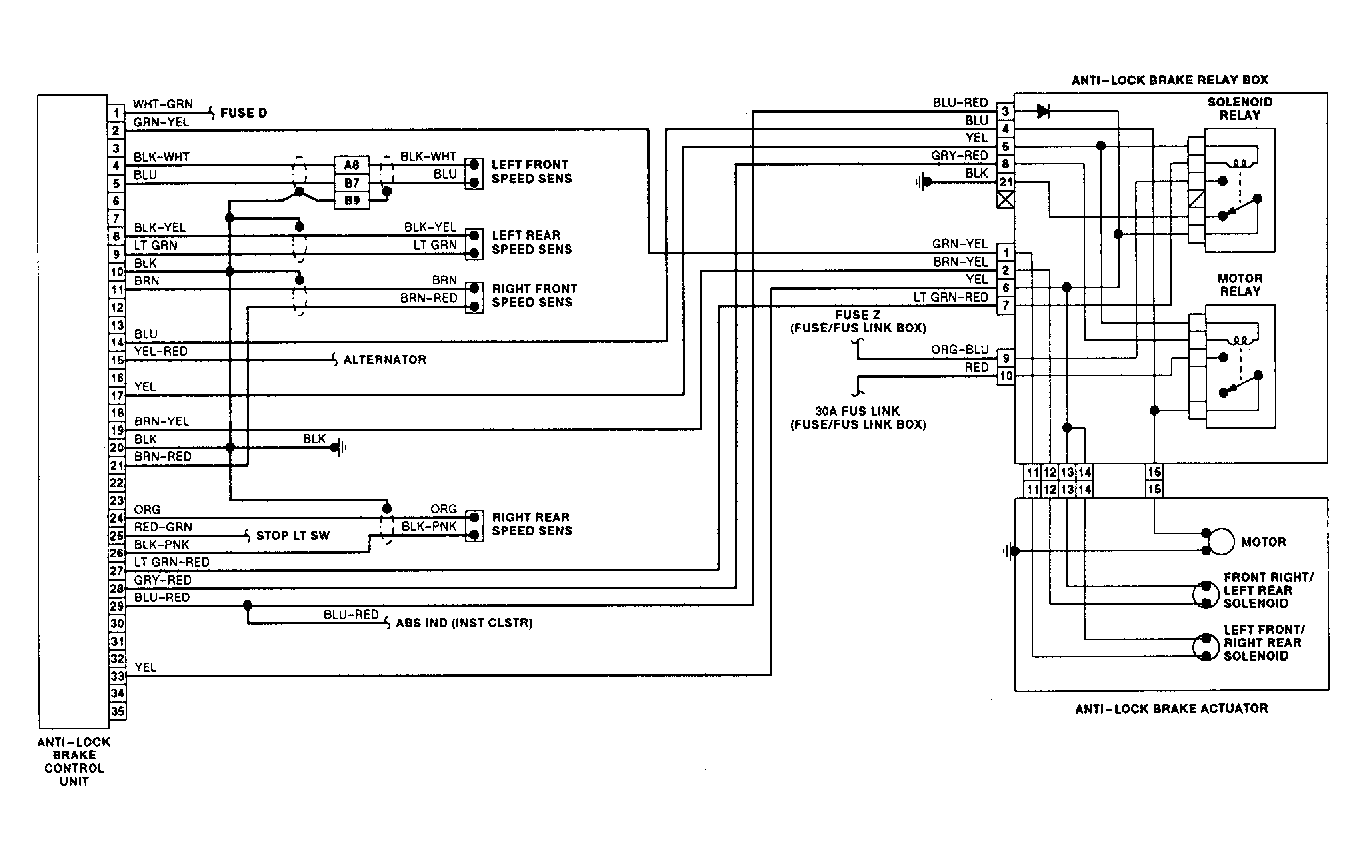

Fig 1: Anti-Lock Brake System (ABS) Wiring Diagram

G92H01324
