Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location
Fuse/Relay Block (Engine Compartment) left front of inner fender panel, behind battery.
Fuse/Relay Block (Passenger Compartment) Under left side of dash. See Figure .
Fusible Links (Coupe) In engine compartment fuse/relay block. See Figure .

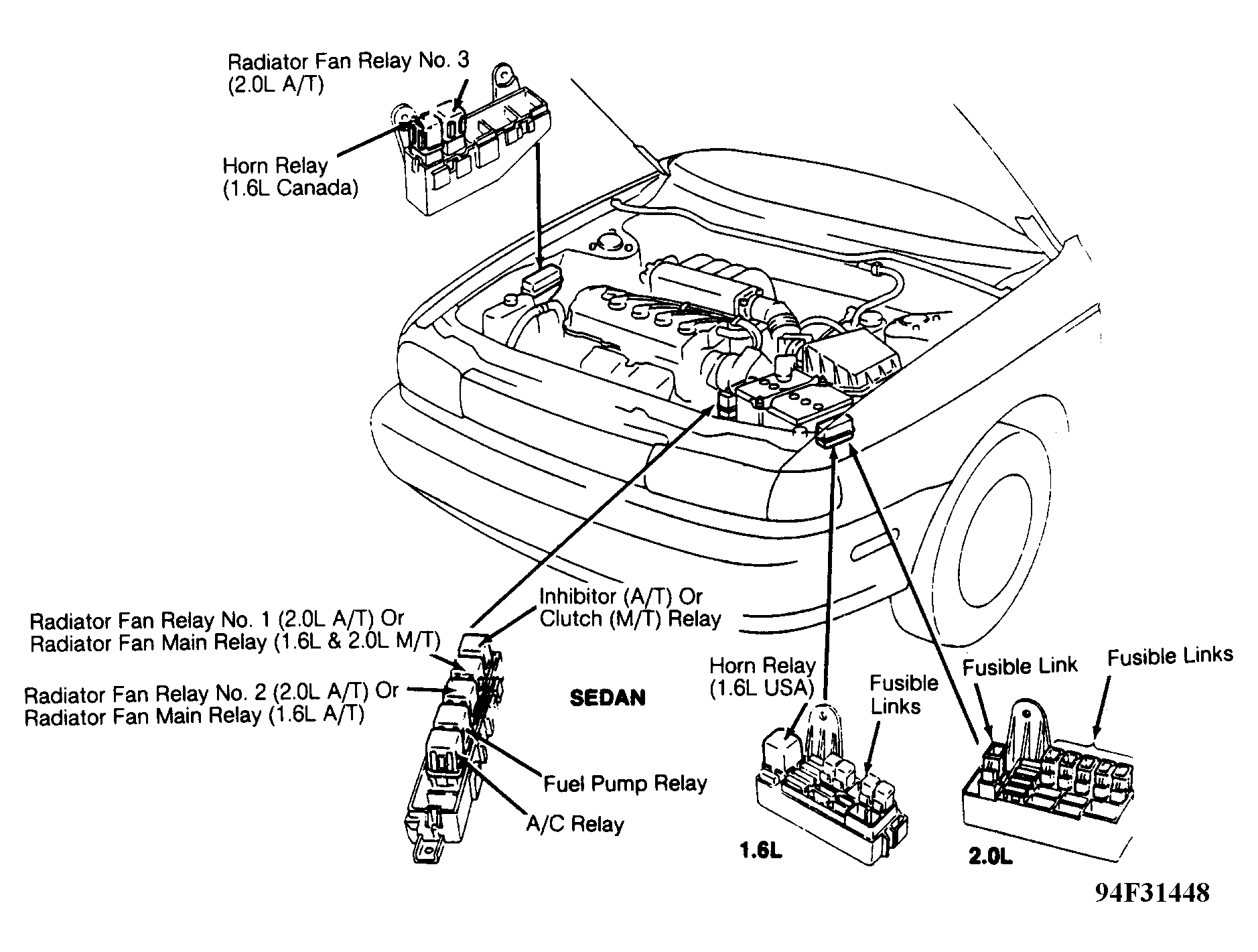

Fusible Links (Sedan) In engine compartment fuse/relay block. See Figure .
