With Tachometer

For speedometer and speed sensor testing on models equipped with a tachometer, see Fig 1 .

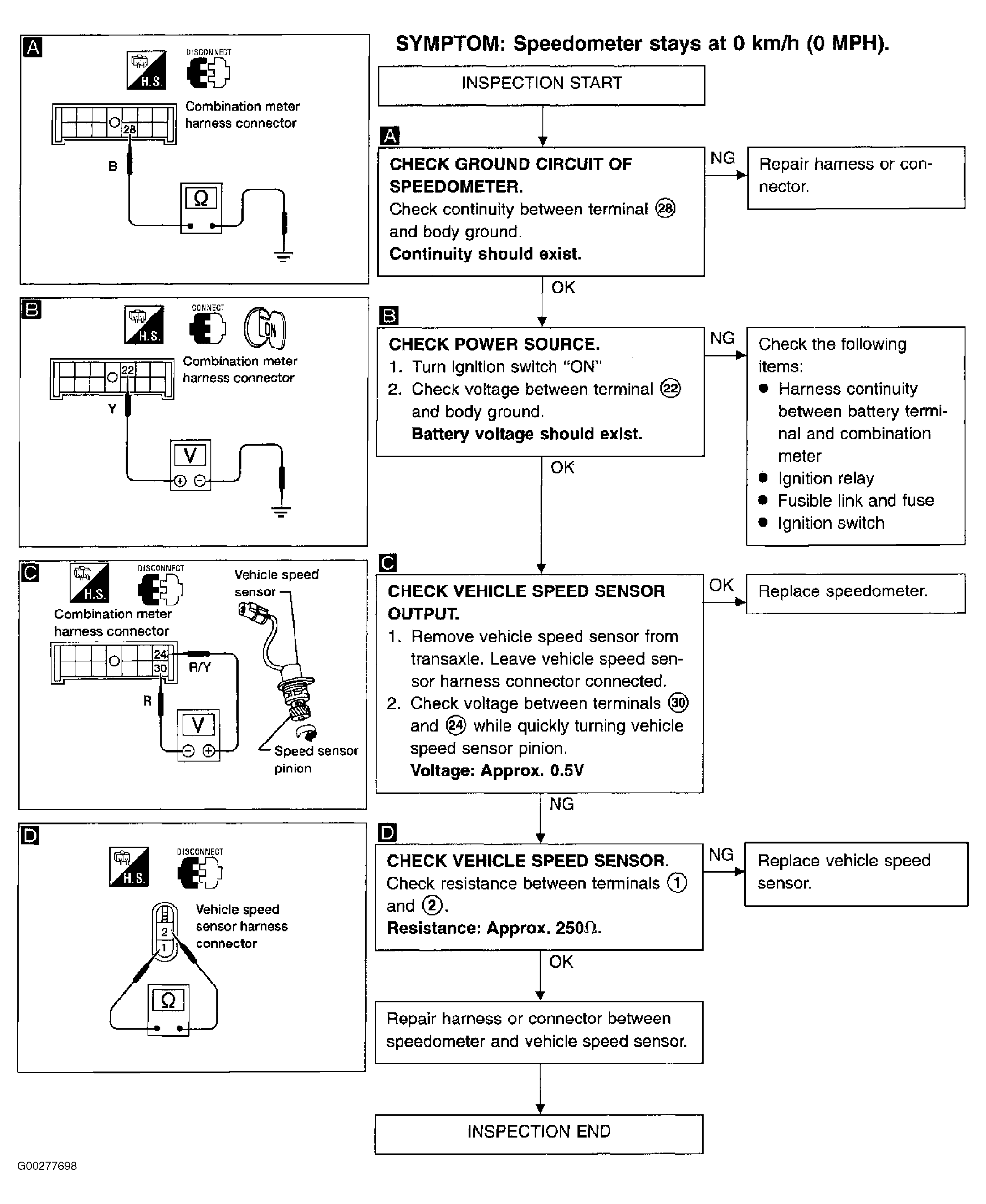

Fig 1: Testing Speedometer & Vehicle Speed Sensor (Sentra & 200SX With Tachometer)

Courtesy of NISSAN MOTOR CO., U.S.A.
