Component Locations

For component location, see Fig 2 .

COMPONENT LOCATIONS

Component	Location
Body Ground M43	Behind Instrument Cluster, On Steering Column Support
Body Ground M44	On Instrument Panel Center Support, Left Of Glove Box
Body Ground M60	Behind Far Right Side Of Instrument Panel
Fuse Block	Under Left Side Of Instrument Panel. See Fig 1 .
Power Mirror Control	Driver's Side Of Instrument Panel
Mirror	Lower Front Corner Of Front Windows

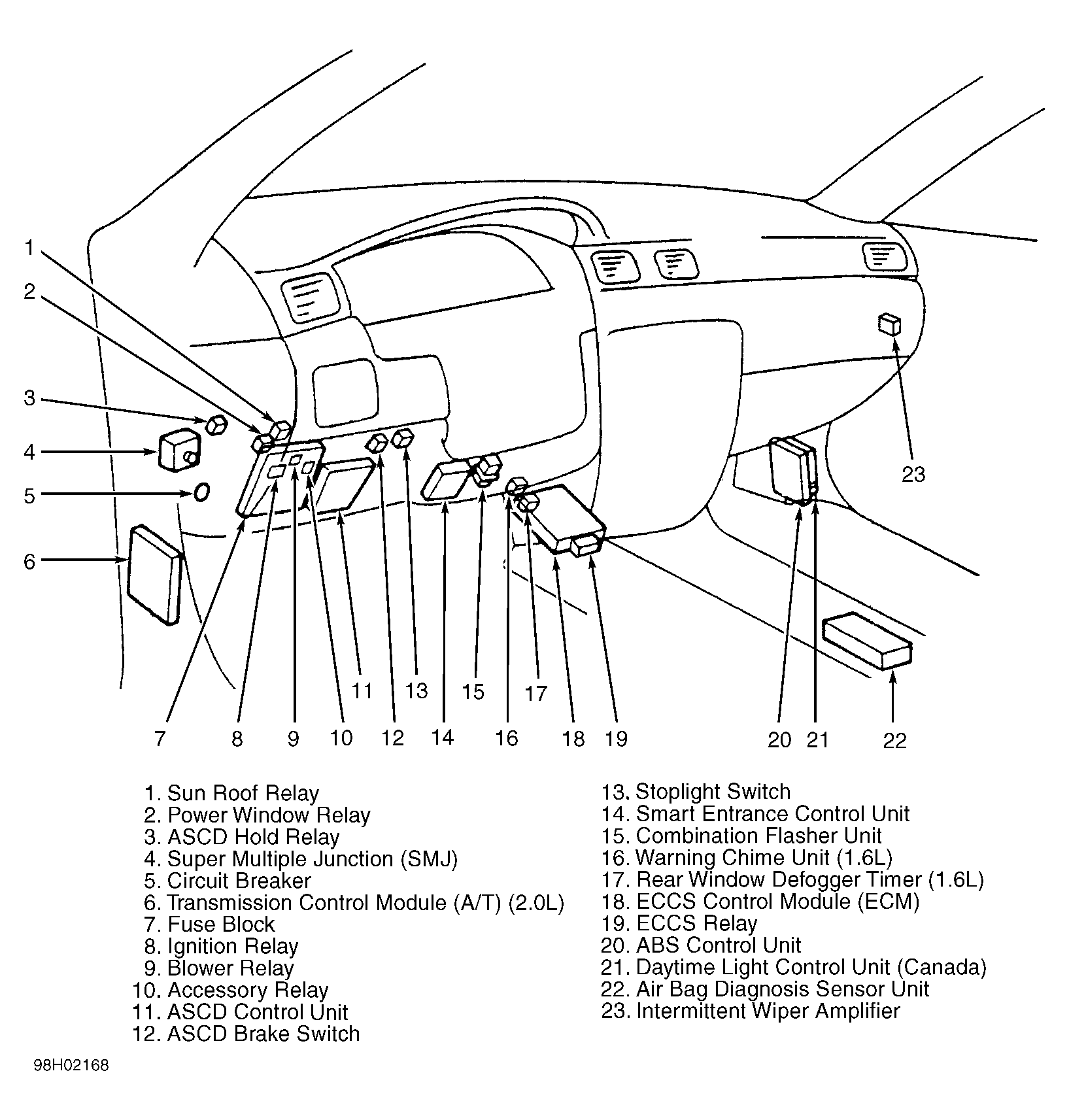

Fig 1: Locating Fuse Block

Fig 2: Locating Power Mirror Controls

Courtesy of NISSAN MOTOR CO., U.S.A.
